Water Separator

  1. Check visually for insect nests in the water separator air inlet.
  2. Check visually for cracks or flaws in the appearance.
  3. Check visually for cracks or flaws in the hose.
  4. Check that and are not clogged by blowing air into with , and then plugged.

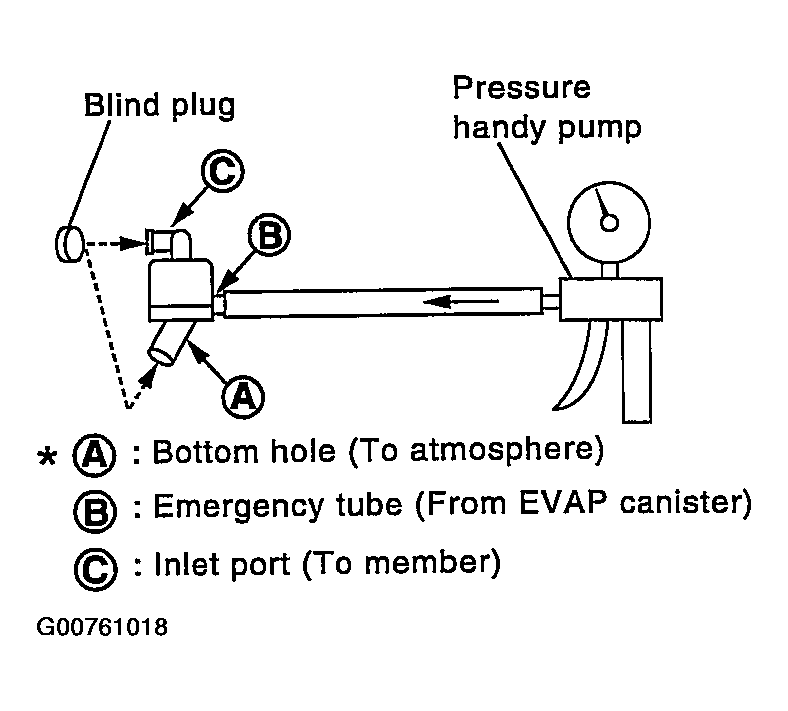

    Fig 1: Checking Water Separator
    G00761018Courtesy of NISSAN MOTOR CO., U.S.A.
  5. In case of NG in items 2 - 4, replace the parts.
    NOTE:
    • Do not disassemble water separator.
