5. Check Combination Meter

1. Turn ignition switch OFF.
2. Disconnect combination meter harness connector.
3. Check continuity under the following conditions.

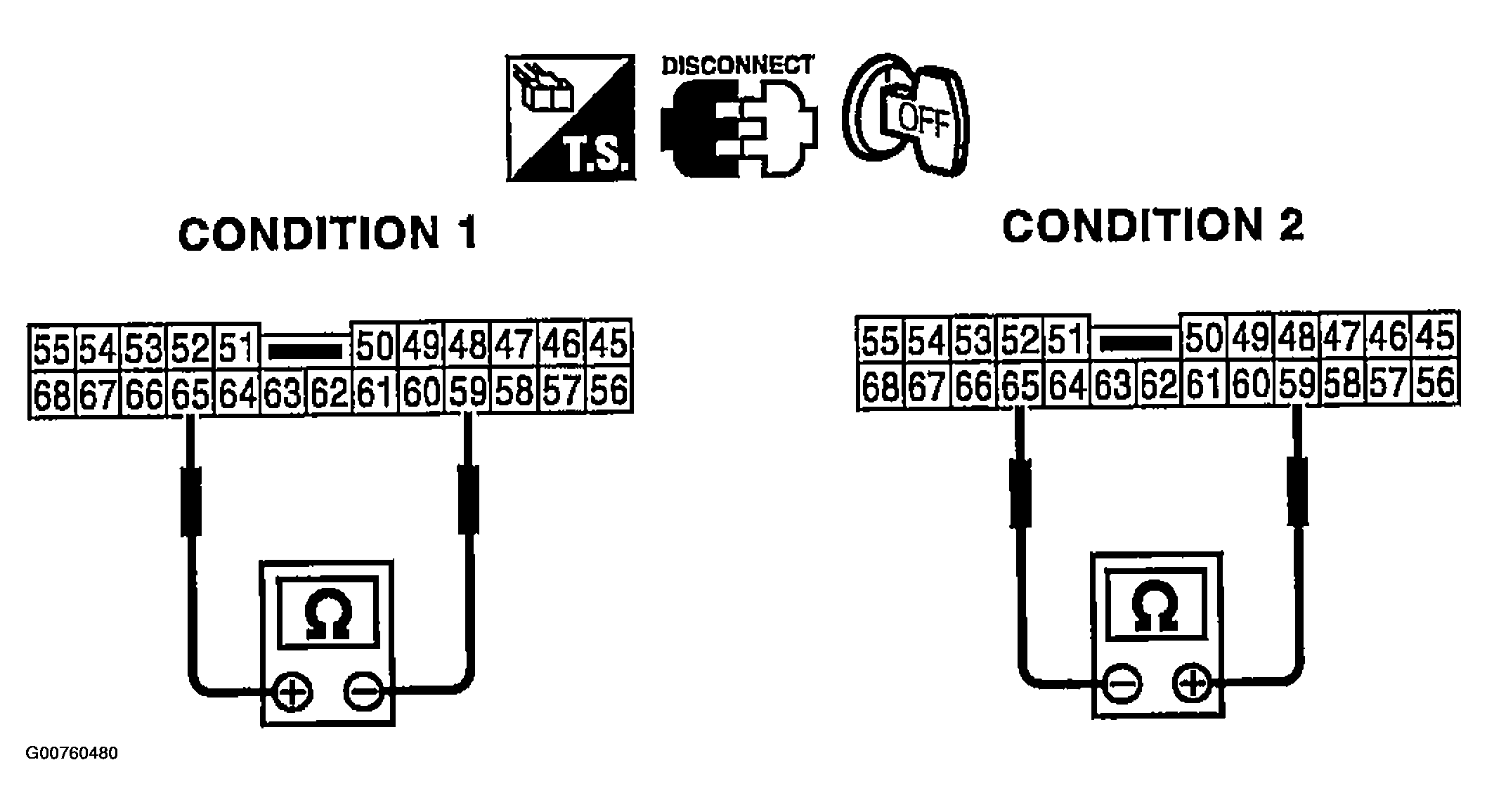

Fig 1: Identifying Conditions 1 & 2 (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

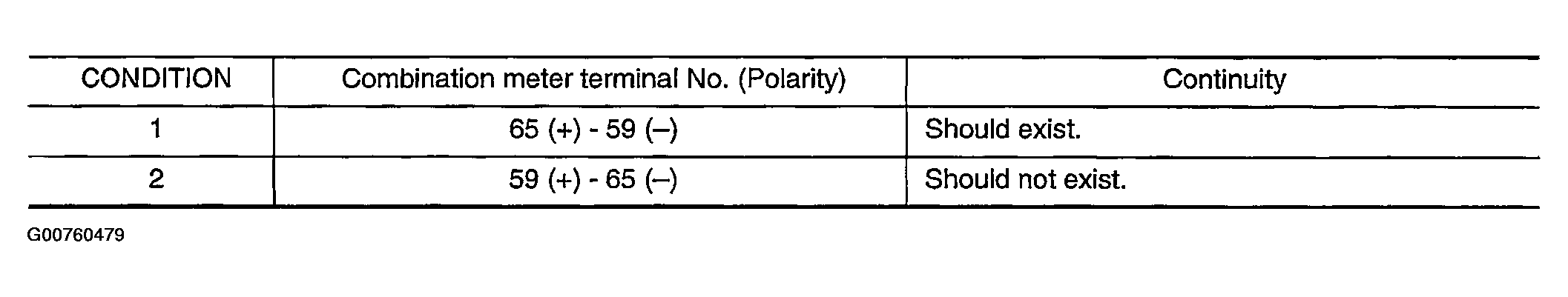

Fig 2: Identifying Conditions 1 & 2 (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 6.

NG : Replace combination meter. Refer to REMOVAL AND INSTALLATION FOR COMBINATION METER .
