Throttle Control Motor Relay

  1. Apply 12V direct current between relay terminals 1 and 2.
  2. Check continuity between relay terminals 3 and 5.

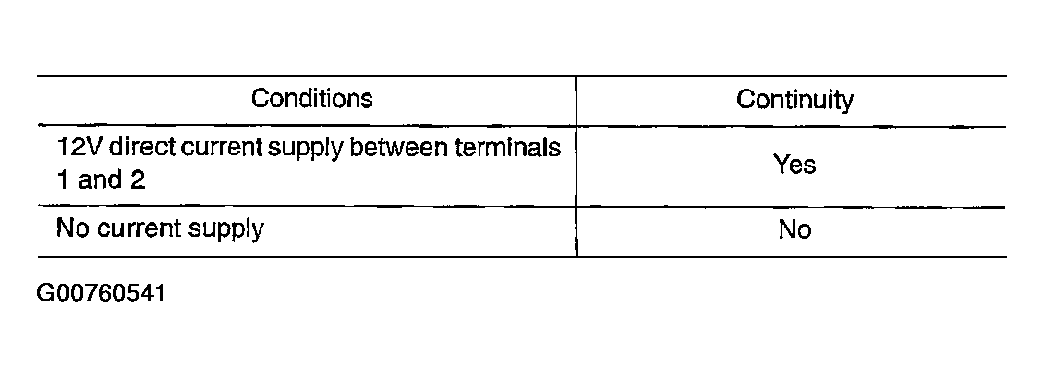

    Fig 1: Checking continuity between relay terminals 3 & 5
    G00760541Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, replace throttle control motor relay.

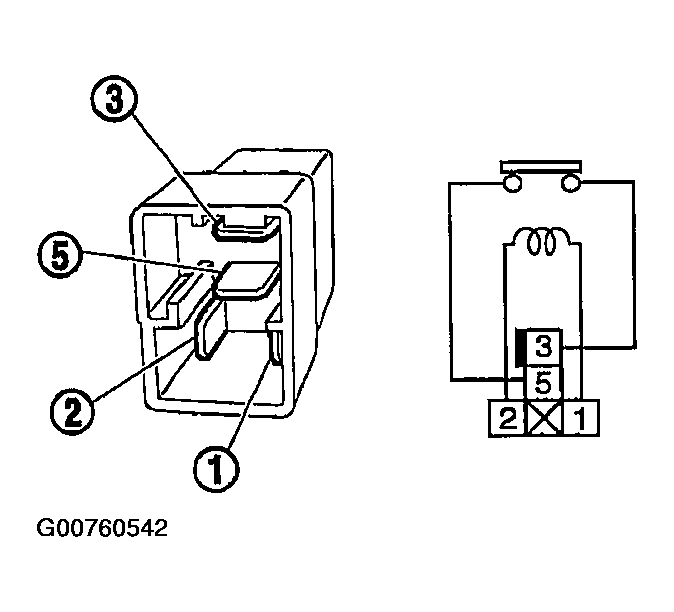

    Fig 2: Inspecting Throttle Control Motor Relay
    G00760542Courtesy of NISSAN MOTOR CO., U.S.A.
