Throttle Control Motor

Disconnect electric throttle control actuator harness connector.
Check resistance between terminals 3 and 6.
1. Resistance: Approximately 1 - 15 Ω [at 25 °C (77°F)]

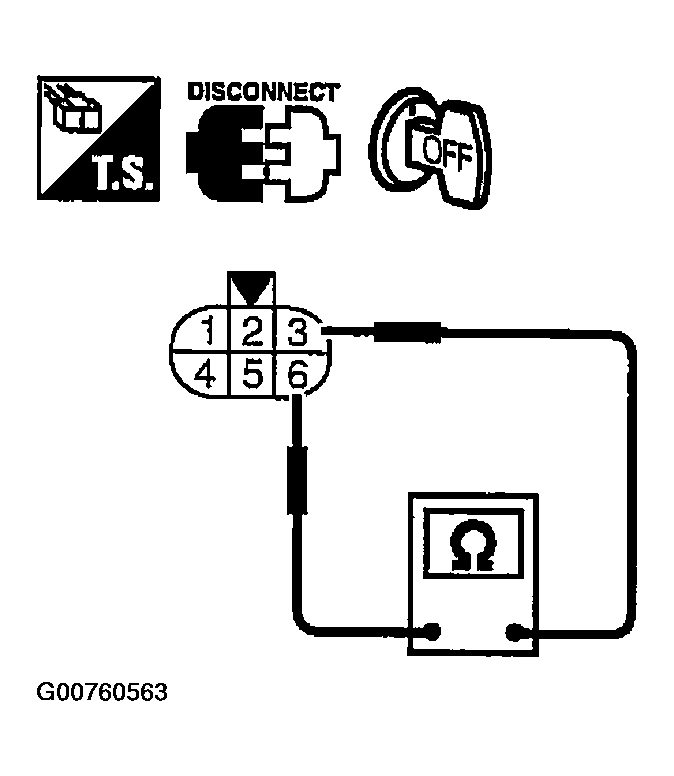

Fig 1: Checking resistance between terminals 3 & 6
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace electric throttle control actuator and go to next step.
Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING .
Perform THROTTLE VALVE CLOSED POSITION LEARNING .
Perform IDLE AIR VOLUME LEARNING .
