With GST

  1. Start engine and warm it up to normal operating temperature.

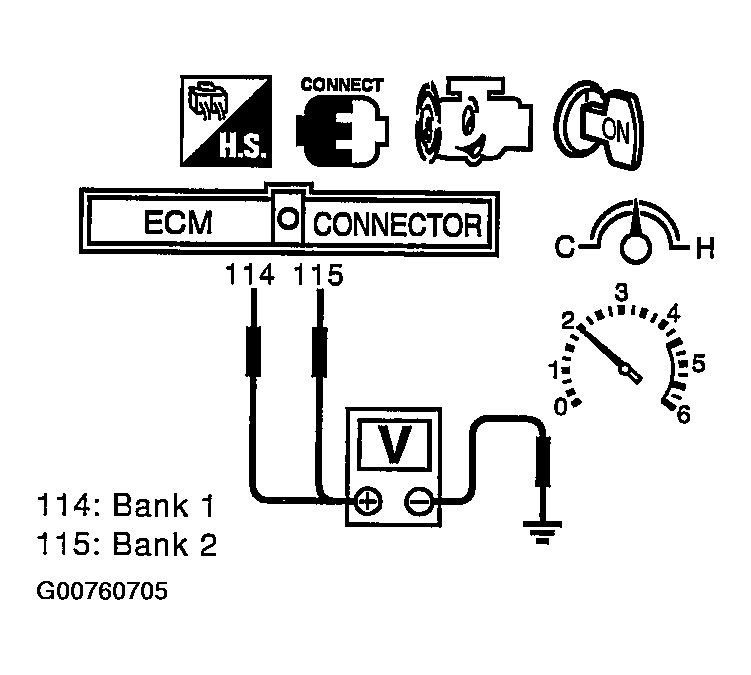

  2. Set voltmeter probes between ECM terminal 114 [HO2S1 (B1) signal] or 115 [HO2S1 (B2) signal] and ground. See Figure.
  3. Check the following with engine speed held at 2,000 RPM constant under no-load.
    • The voltage should go above 0.70V at least once.
    • The voltage should go below 0.21V at least once.
  4. If NG, go to Diagnostic Procedure  .
