Cooling Fan Speed Control

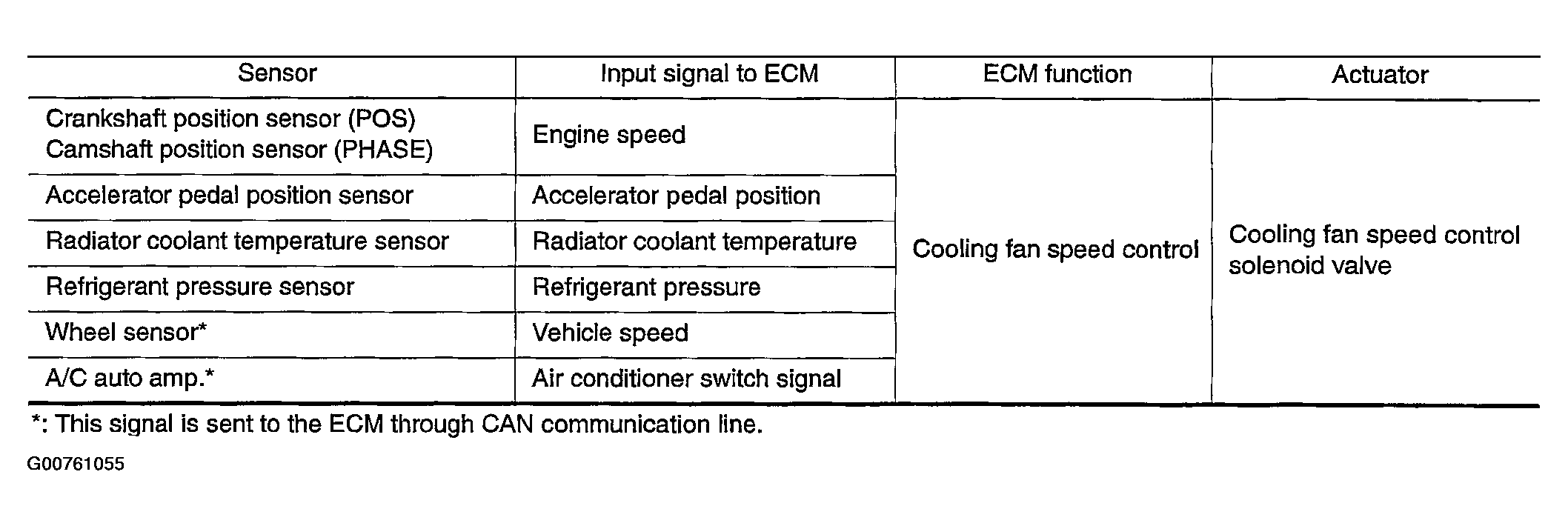

Fig 1: Cooling Fan Speed Control (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

The ECM controls the cooling fan speed corresponding to the engine speed, the radiator coolant temperature, refrigerant pressure, vehicle speed, air conditioner switch signal, etc.

The ECM determines the target fan speed based on the basic fan speed considering the radiator coolant temperature and the engine speed. The ECM controls fan speed between 0 to 2,550 RPM.

When the cooling fan speed control solenoid valve is malfunctioning (does not operate), the cooling fan is operated at the maximum speed by engine through the drive belts.

Cooling Fan Basic Speed

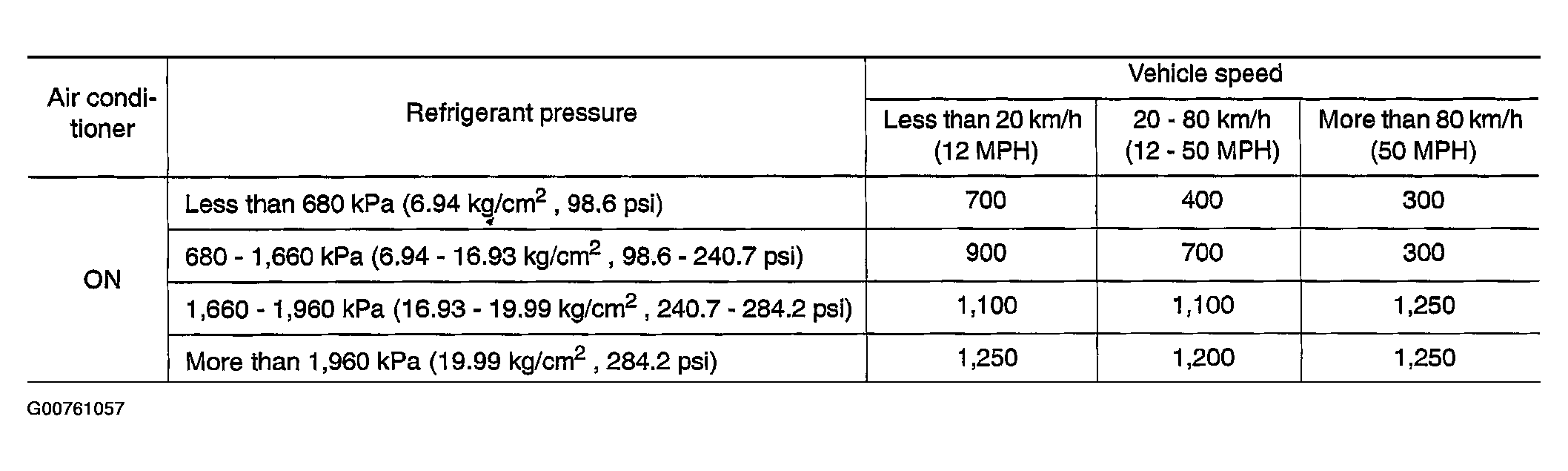

Fig 2: Cooling Fan Speed Control (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

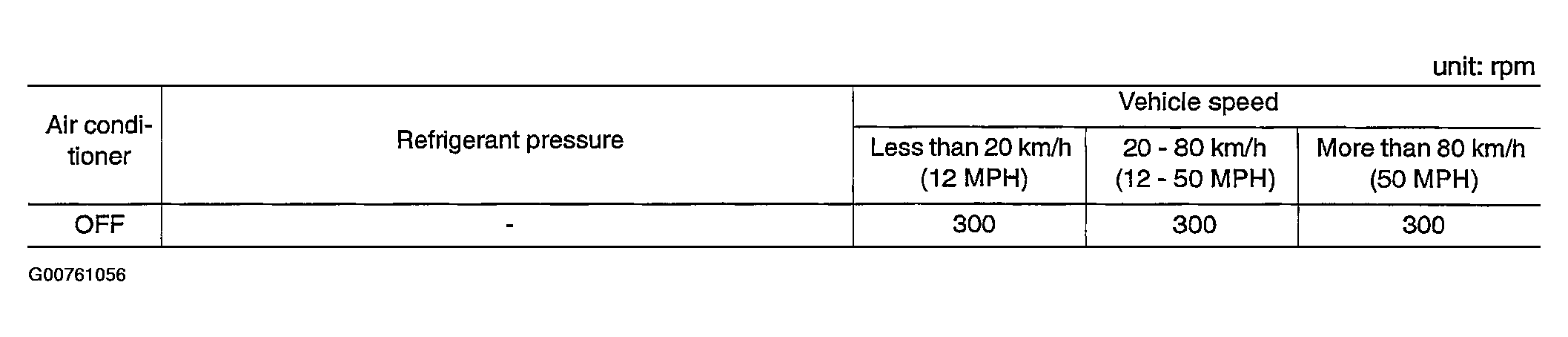

Fig 3: Cooling Fan Speed Control (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
