Main 12 Causes Of Overheating

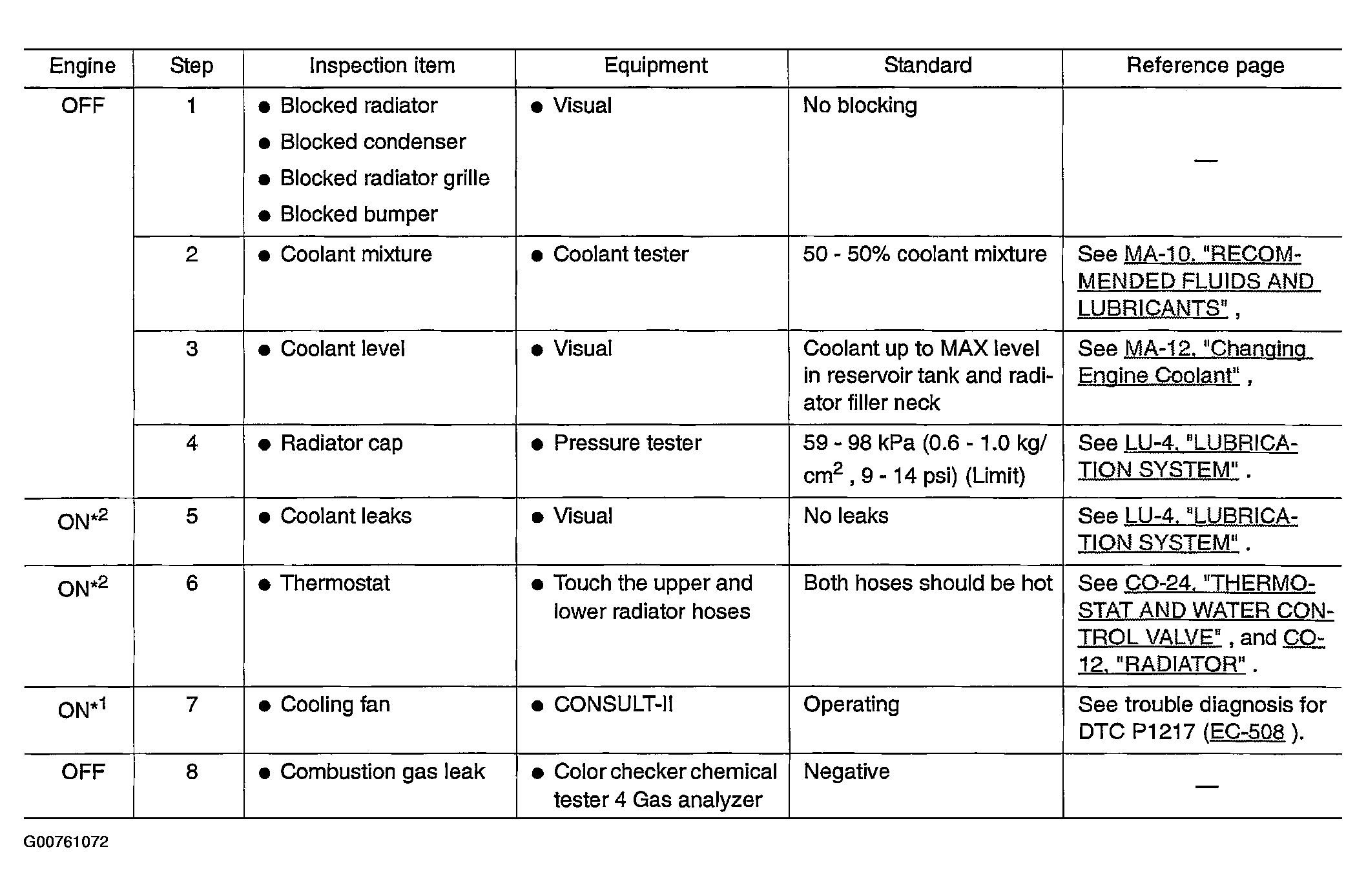

Fig 1: Main 12 Causes of Overheating (1 Of 2)
G00761072Courtesy of NISSAN MOTOR CO., U.S.A.

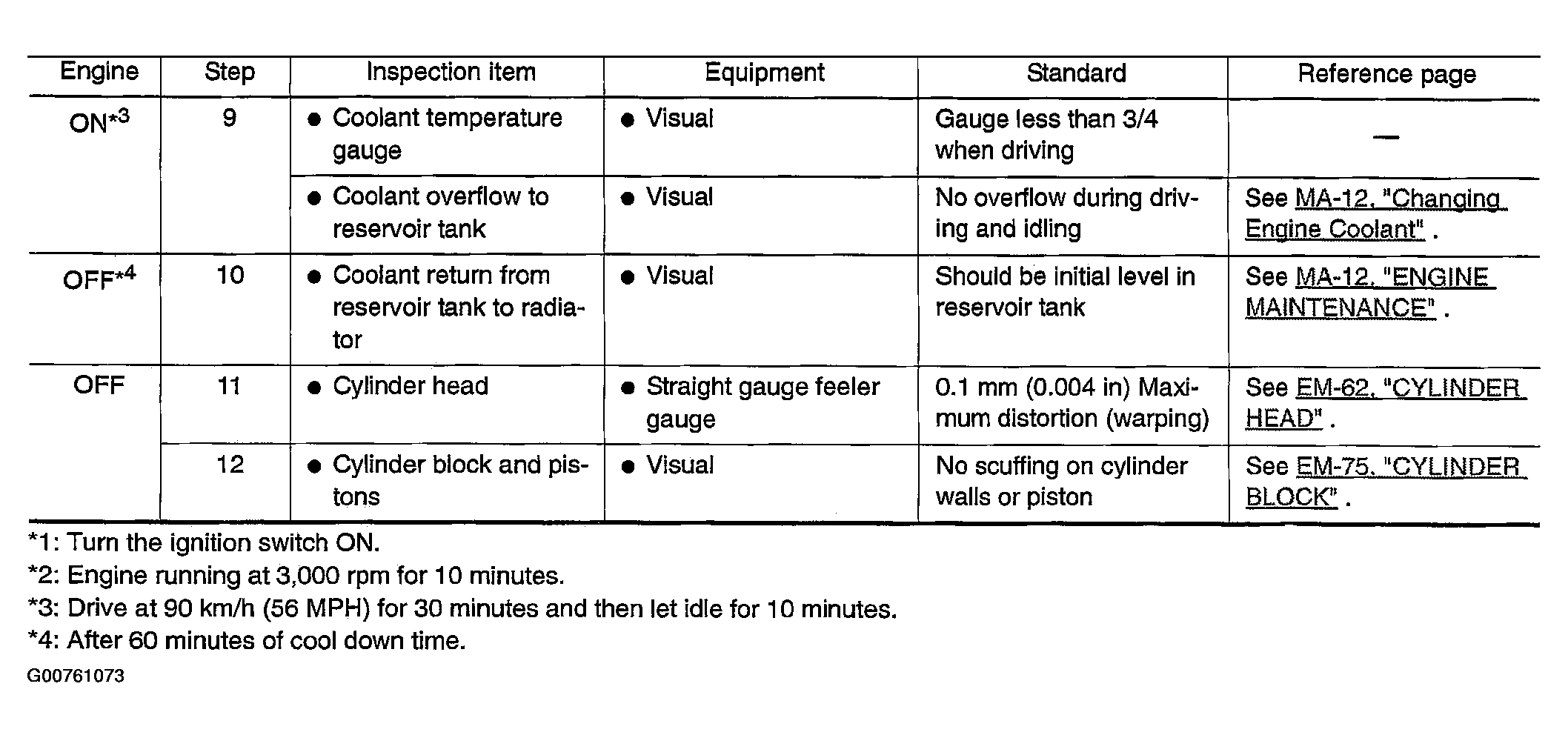

Fig 2: Main 12 Causes of Overheating (1 Of 2)
G00761073Courtesy of NISSAN MOTOR CO., U.S.A.

For more information, refer to OVERHEATING CAUSE ANALYSIS .
