DTC Confirmation Procedure

CAUTION: Always drive vehicle at a safe speed.

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 10V with ignition switch ON.

With CONSULT-II

Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
Make sure that "COOLAN TEMP/S" indicates less than 70°C (158°F). If not, cool down the engine.
Start engine.

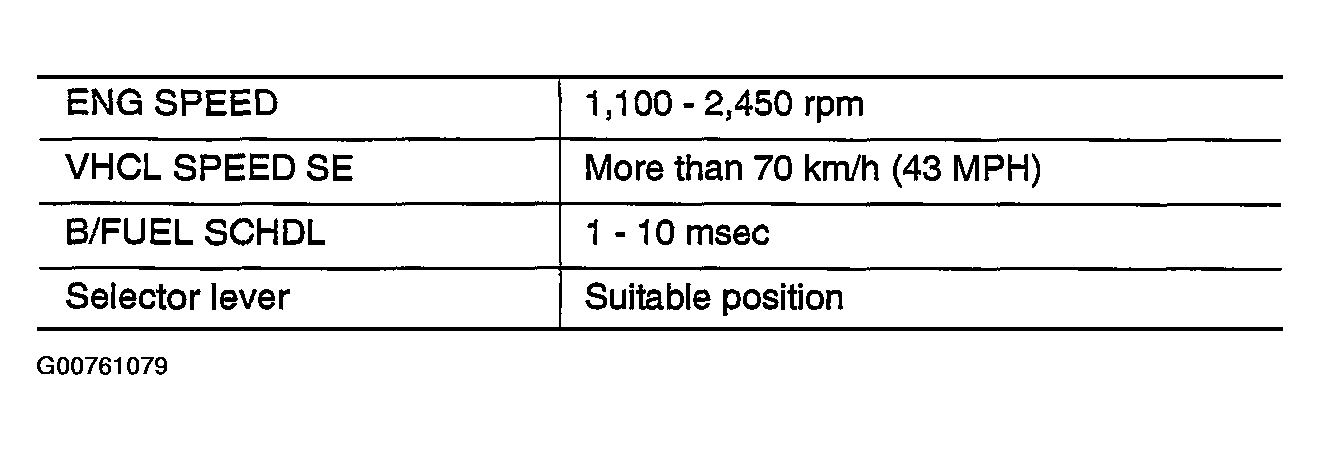

Hold vehicle at the following conditions for 12 seconds.

Fig 1: Testing Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.
If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .

With GST

Follow the procedure With CONSULT-II above.
