2. Check APP Sensor Power Supply Circuit

1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch ON.

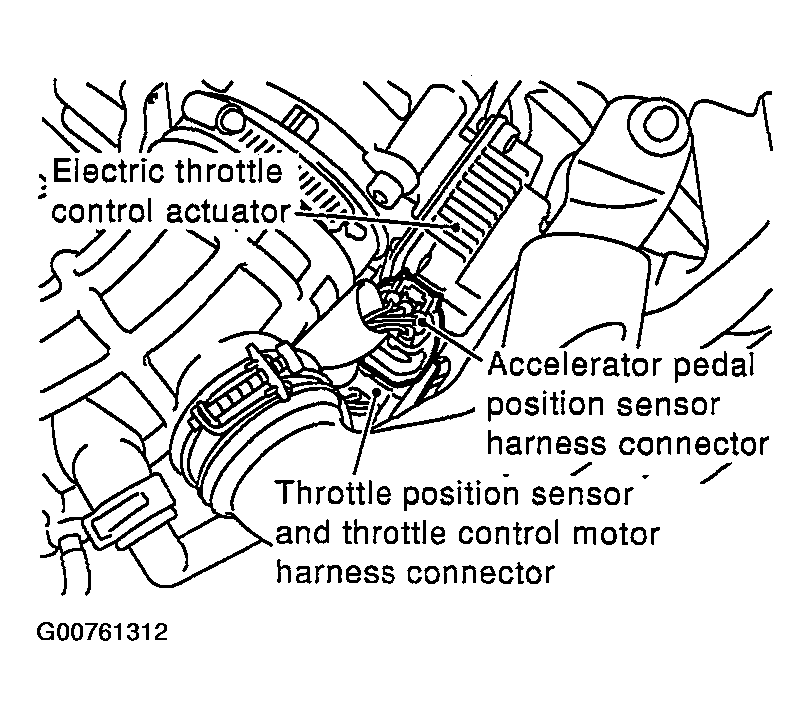

   Fig 1: Locating Electric Throttle Control Actuator

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between electric throttle control actuator terminals 7, 10 and ground with CONSULT-II or tester.

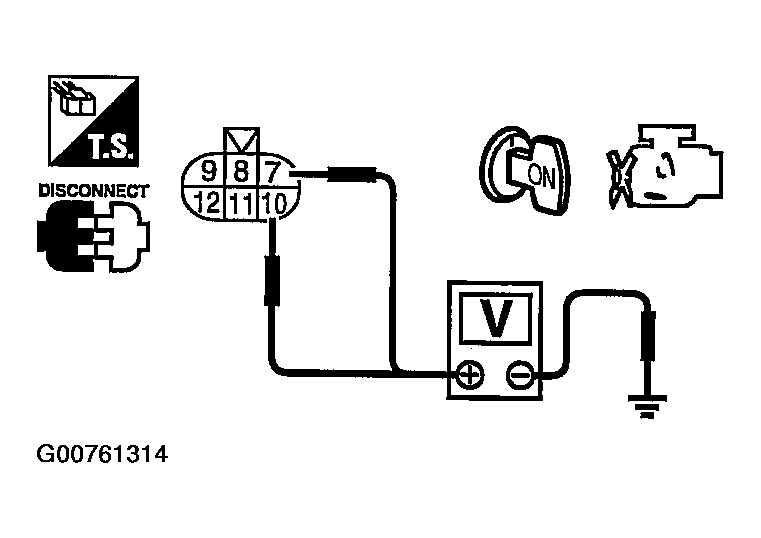

Fig 2: Checking Voltage Between Electric Throttle Control Actuator Terminals 7, 10 & Ground (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

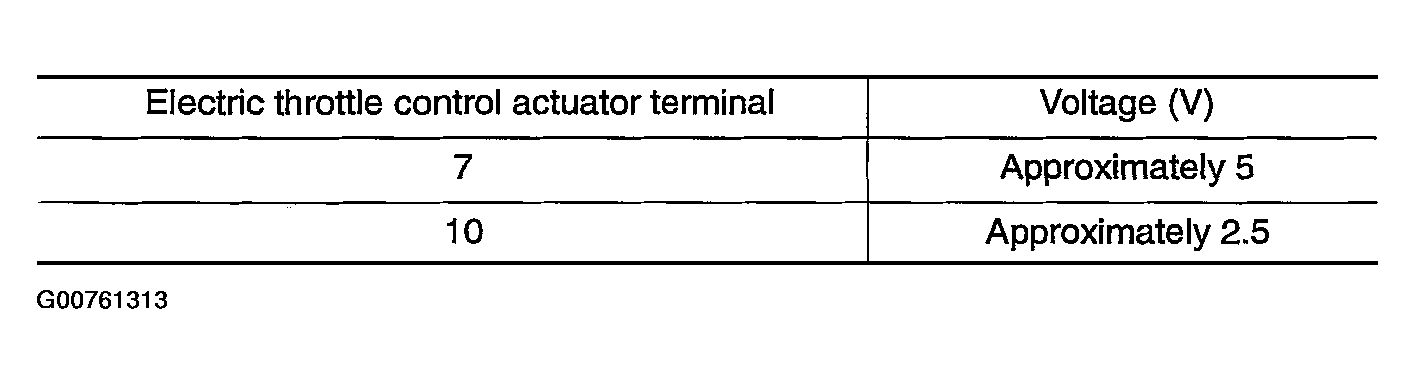

Fig 3: Checking Voltage Between Electric Throttle Control Actuator Terminals 7, 10 & Ground (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 3.

NG: Repair open circuit or short to ground or short to power in harness or connectors.
