1. Check Load Signal Circuit Overall Function-I

1. Turn ignition switch ON.
2. Connect CONSULT-II or GST and select "DATA MONITOR" mode.
3. Select "LOAD SIGNAL" and check indication under the following conditions.

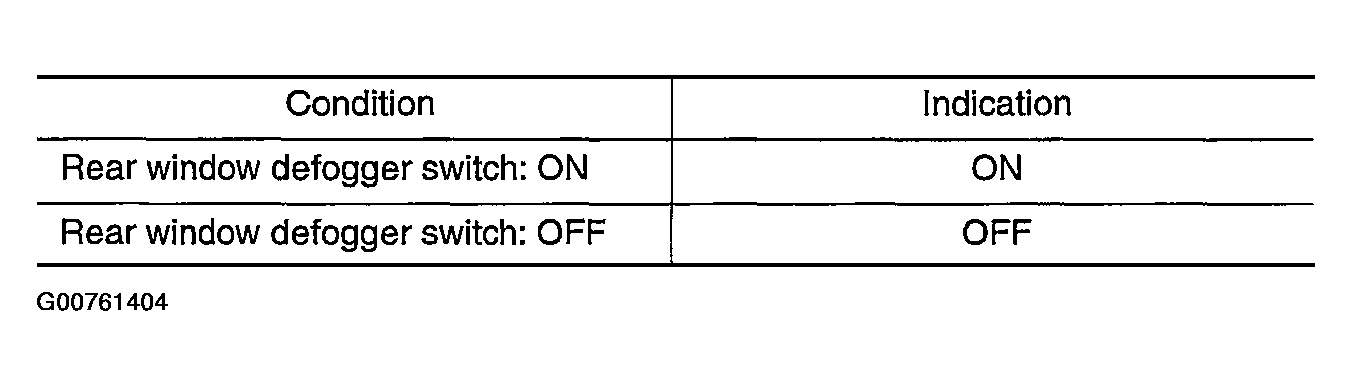

Fig 1: Testing Conditions

Courtesy of NISSAN MOTOR CO., U.S.A.

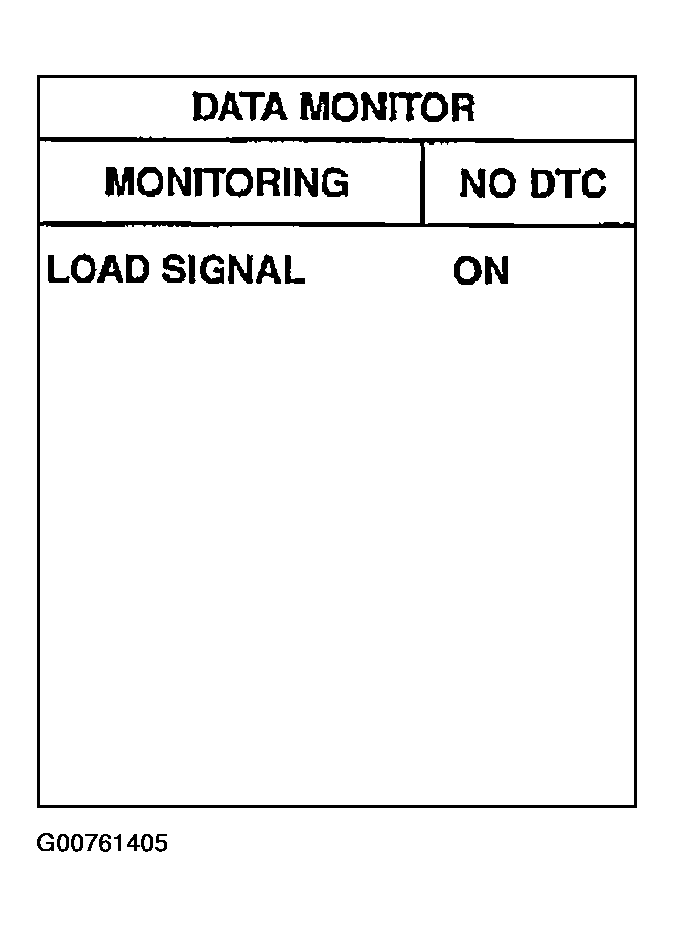

Fig 2: View Of CONSULT-II Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 2.

NG: GO TO 3.
