Electrical Load Signal: Wiring Diagram

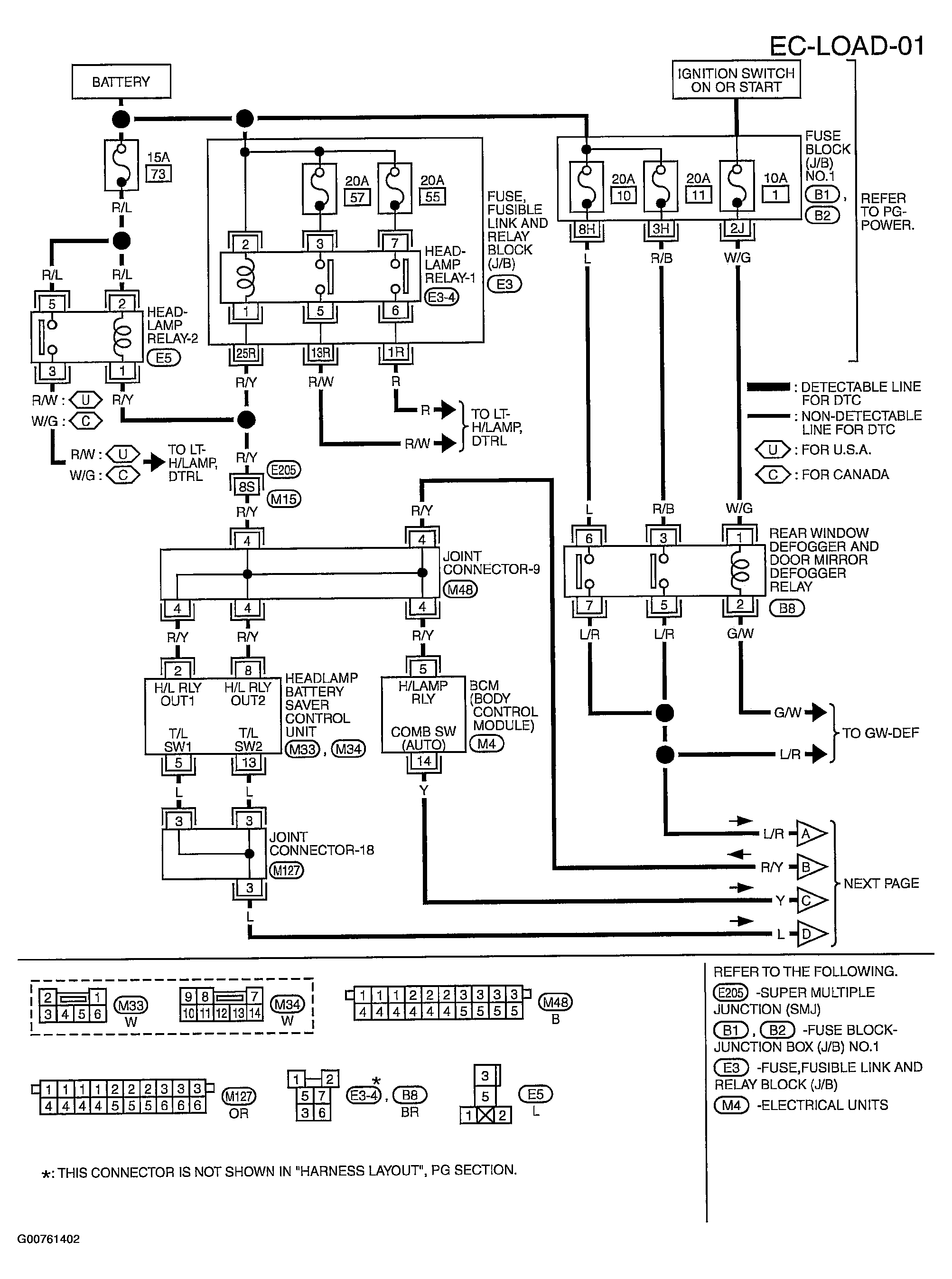

Fig 1: Circuit Diagram (1 Of 2) - EC-LOAD-01
Courtesy of NISSAN MOTOR CO., U.S.A.

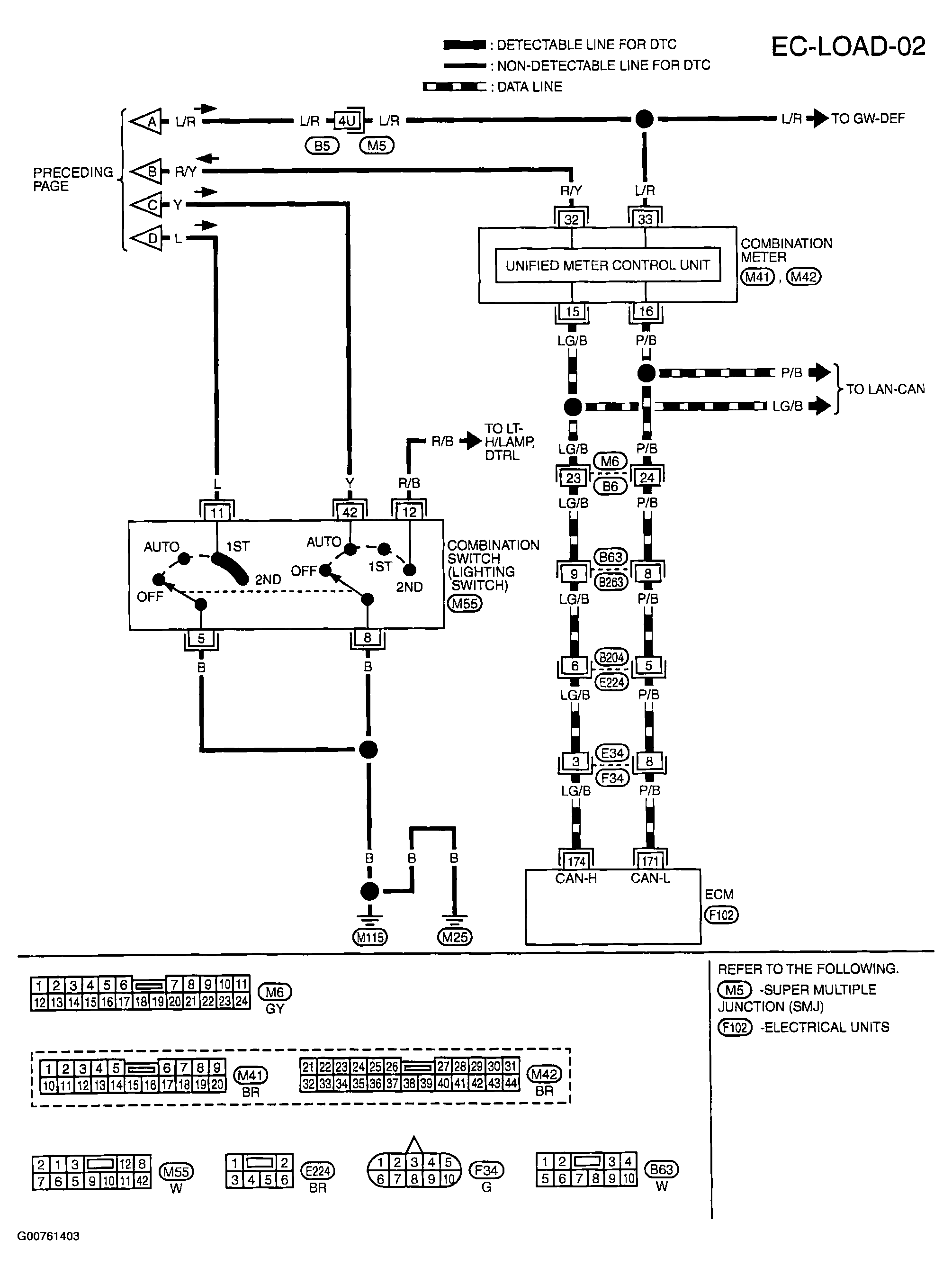

Fig 2: Circuit Diagram (2 Of 2) - EC-LOAD-02
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
