Fuel Pump

  1. Disconnect fuel level sensor unit and fuel pump harness connector.
  2. Check resistance between fuel level sensor unit and fuel pump terminals 1 and 3.
    1. Resistance: 0.2 - 5.Ω [at 25°C (77°F)]

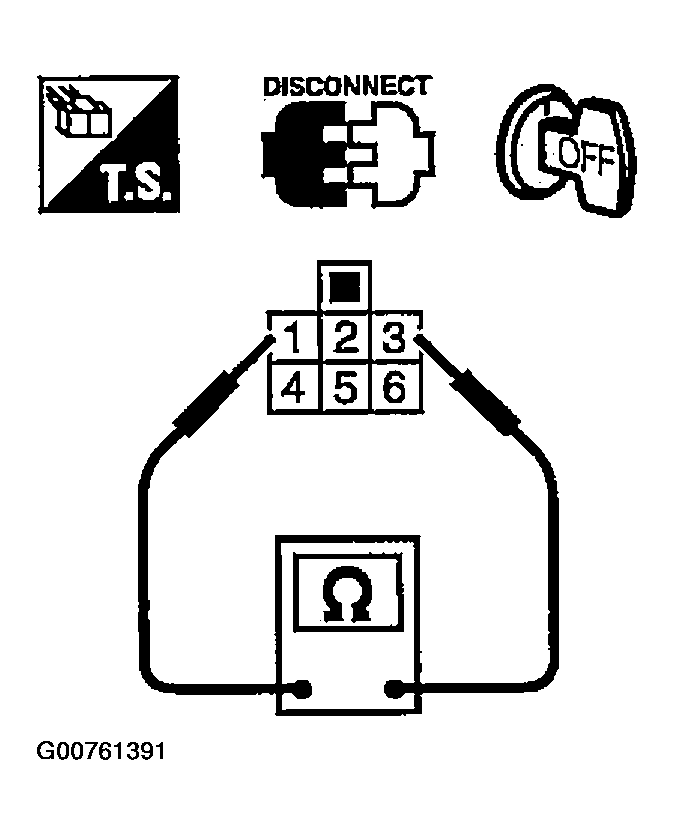

Fig 1: Checking resistance between fuel level sensor unit & fuel pump terminals 1 & 3
G00761391Courtesy of NISSAN MOTOR CO., U.S.A.
