Fuel Pump Relay

Check continuity between terminals 3 and 5 under the following conditions.

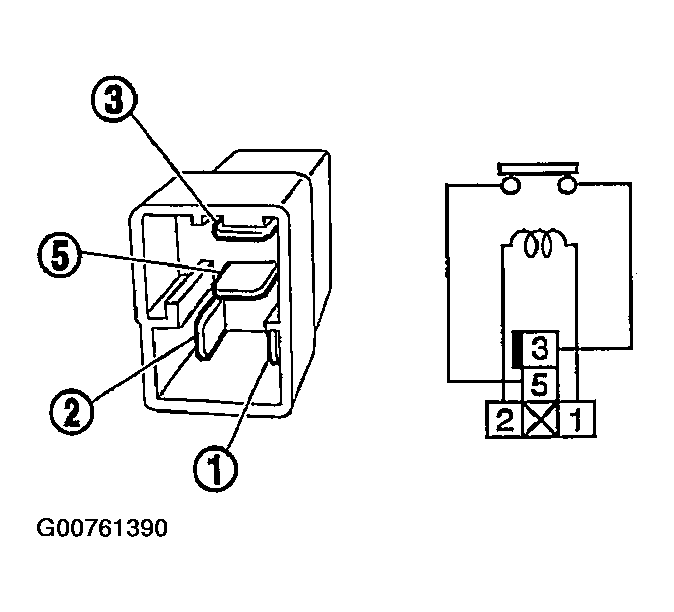

Fig 1: Checking Continuity Between Terminals 3 & 5 (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

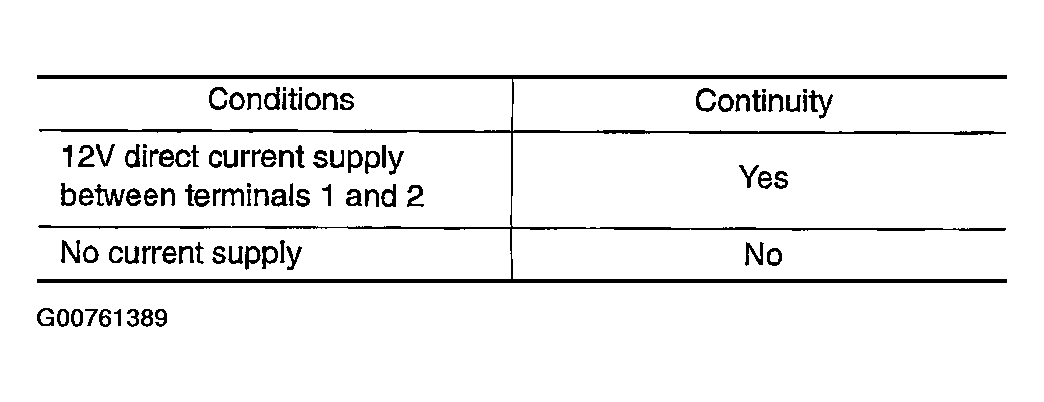

Fig 2: Checking Continuity Between Terminals 3 & 5 (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
