2. Check Fuel Pump Relay Power Supply Circuit

1. Turn ignition switch OFF.
2. Disconnect fuel pump relay.
3. Turn ignition switch ON.

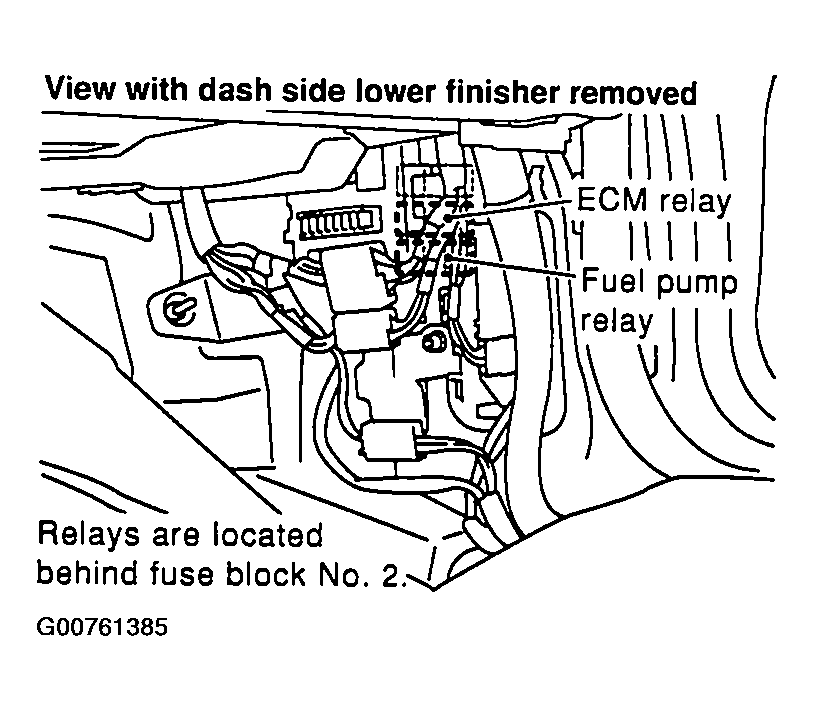

   Fig 1: Locating Fuel Pump Relay

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check voltage between terminals 2, 3 and ground with CONSULT-II or tester.
   1. Voltage: Battery voltage

OK or NG

OK: GO TO 4.

NG: GO TO 3.

Fig 2: Checking voltage between terminals 2, 3 & ground

Courtesy of NISSAN MOTOR CO., U.S.A.
