3. Check Overall Function

Without CONSULT-II

1. Let engine idle.
2. Read the voltage signal between ECM terminals 18, 19, 20, 21, 29, 30, 31, 32 and ground with an oscilloscope.
   Fig 1: Checking voltage signal between ECM terminals 18, 19, 20, 21, 29, 30, 31, 32 & ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Verify that the oscilloscope screen shows the signal wave as shown below.
   NOTE: The pulse cycle changes depending on RPM at idle.

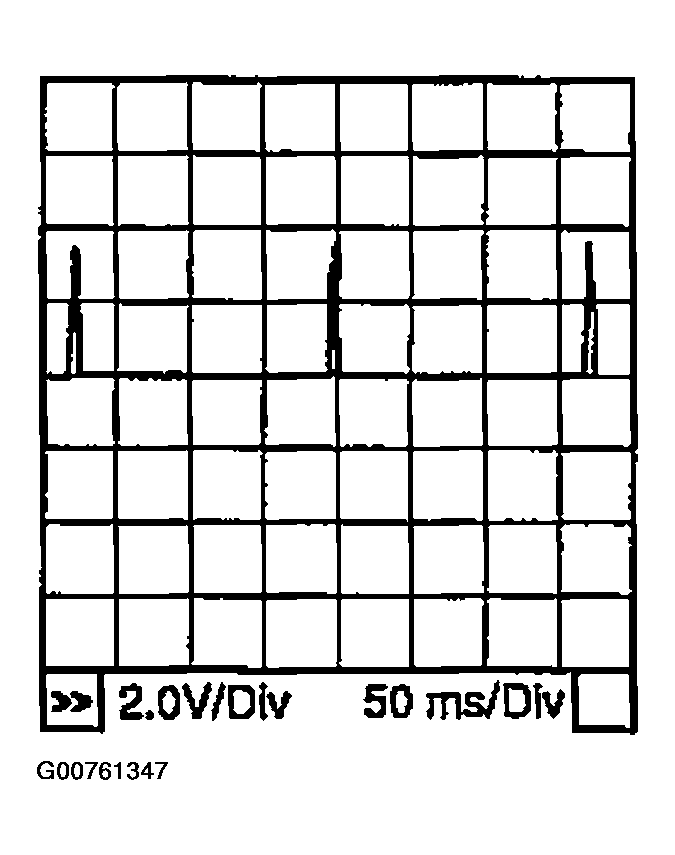

Fig 2: View Of CONSULT-II Screen in Oscilloscope Mode

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: INSPECTION END

NG: GO TO 11.
