6. Check Sub-Harness Circuit For Open And Short

1. Disconnect injector harness connectors.
2. Check harness continuity between the following terminals. Refer to Wiring Diagram.

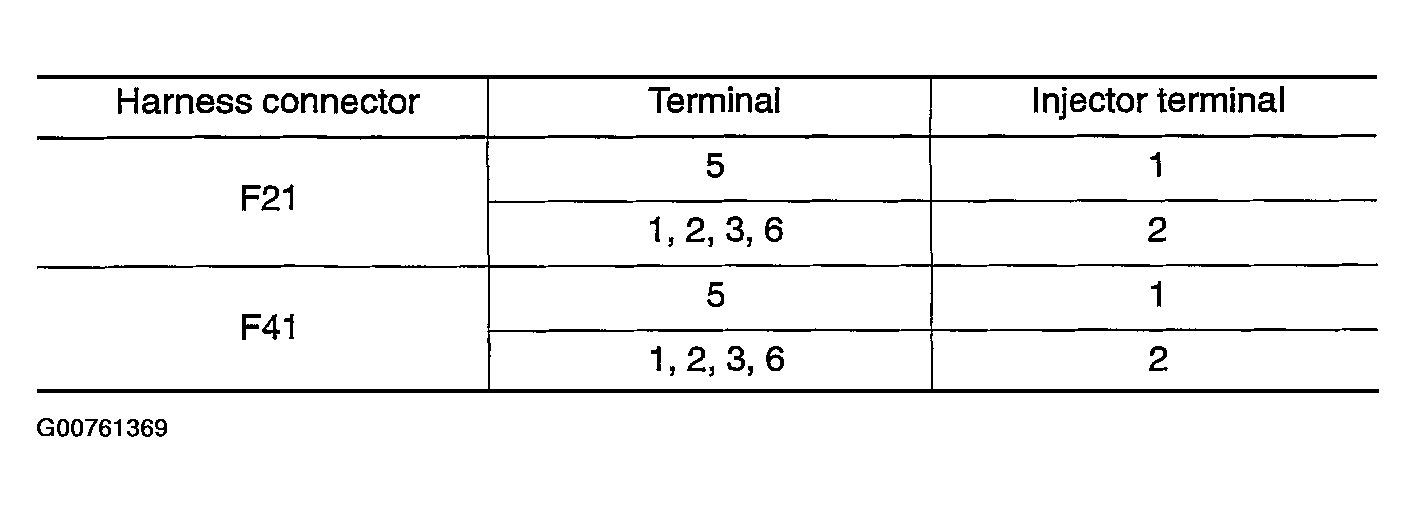

   Fig 1: Checking Sub-Harness Circuit For Open & Short

   Courtesy of NISSAN MOTOR CO., U.S.A.
   1. Continuity should exist.

OK or NG

OK: GO TO 7.

NG: Repair open circuit or short to ground or short to power in harness or connectors.
