Injector Circuit: Wiring Diagram

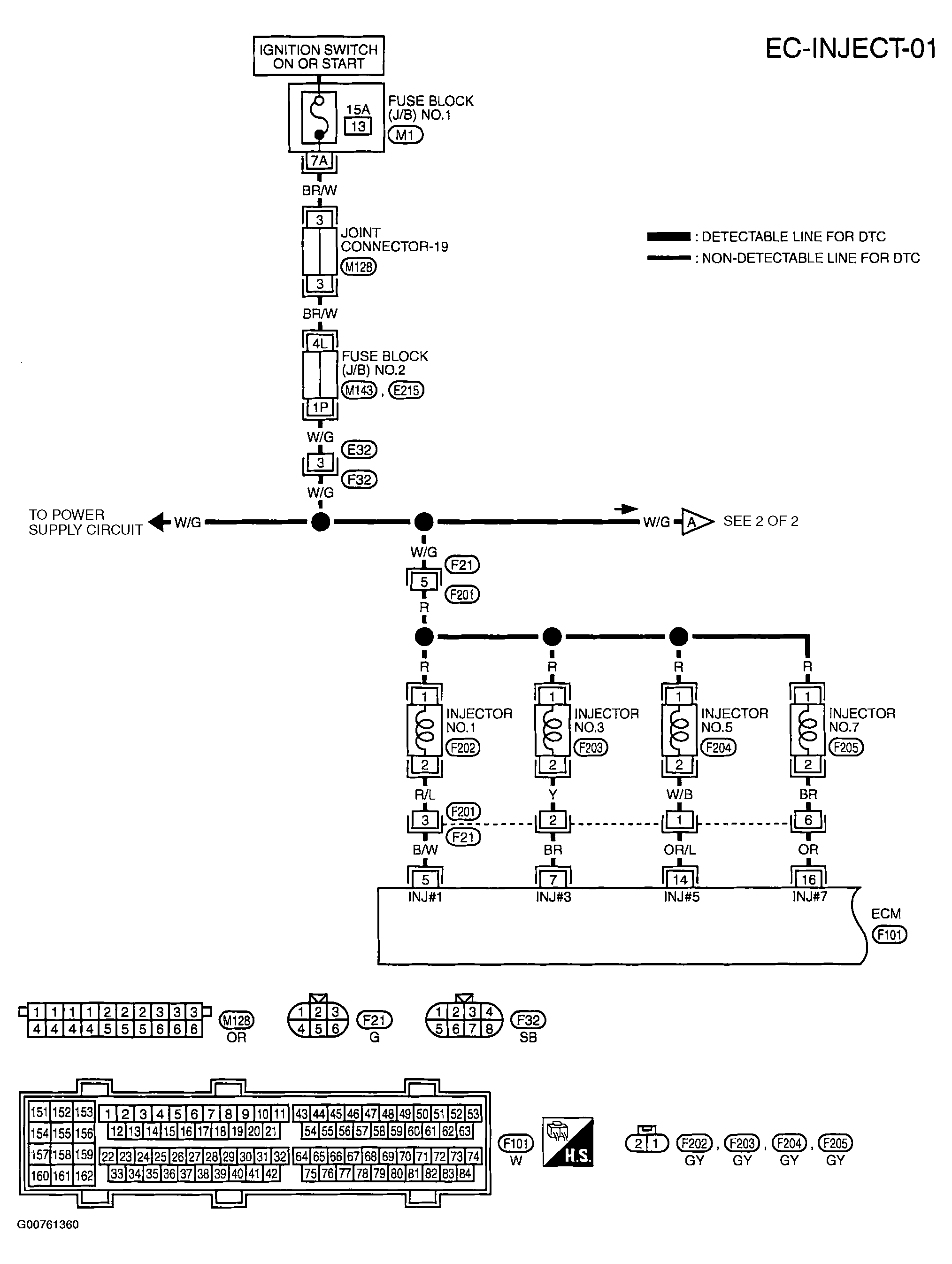

Fig 1: Circuit Diagram (1 Of 2) - EC-INJECT-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

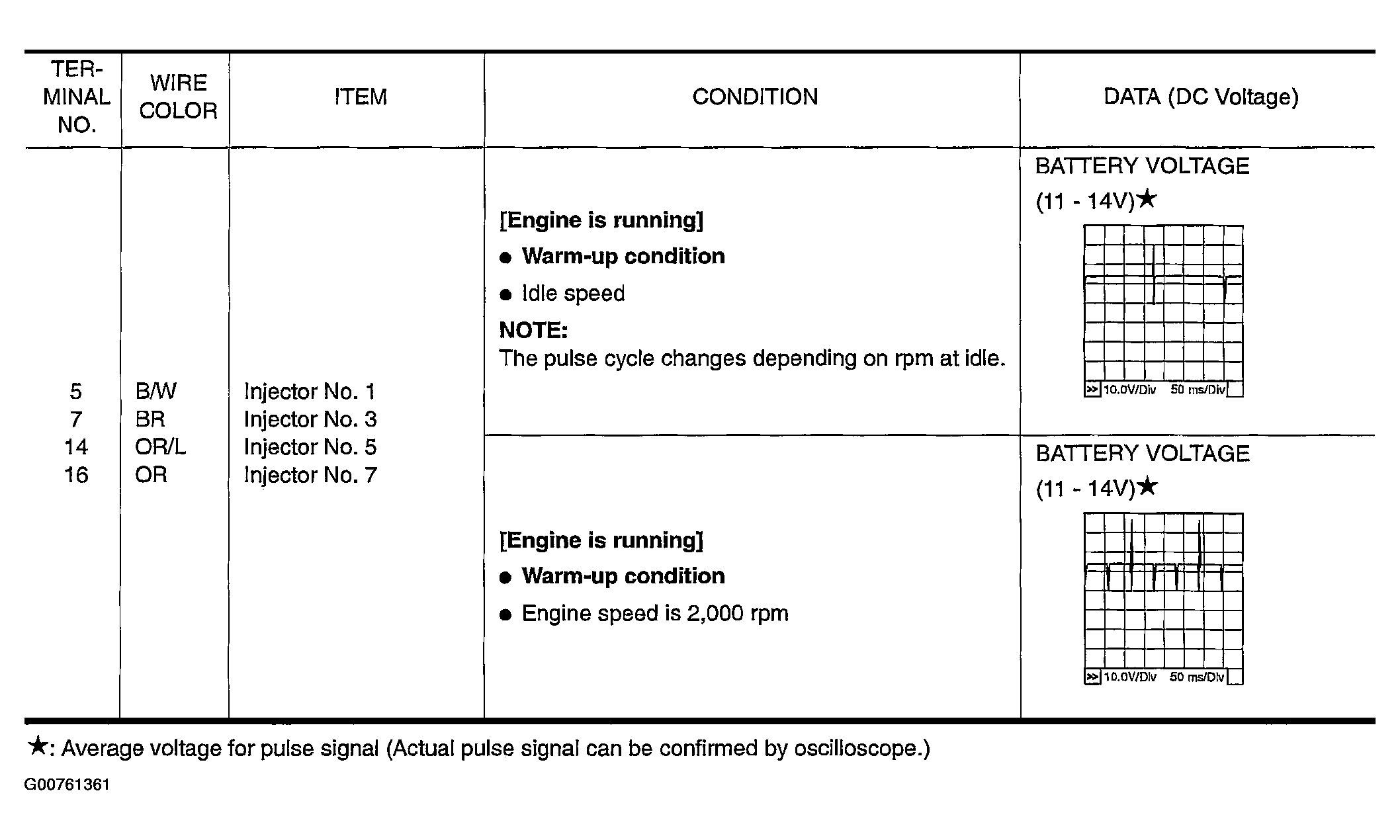

Fig 2: Specification Data & Reference Values

Courtesy of NISSAN MOTOR CO., U.S.A.

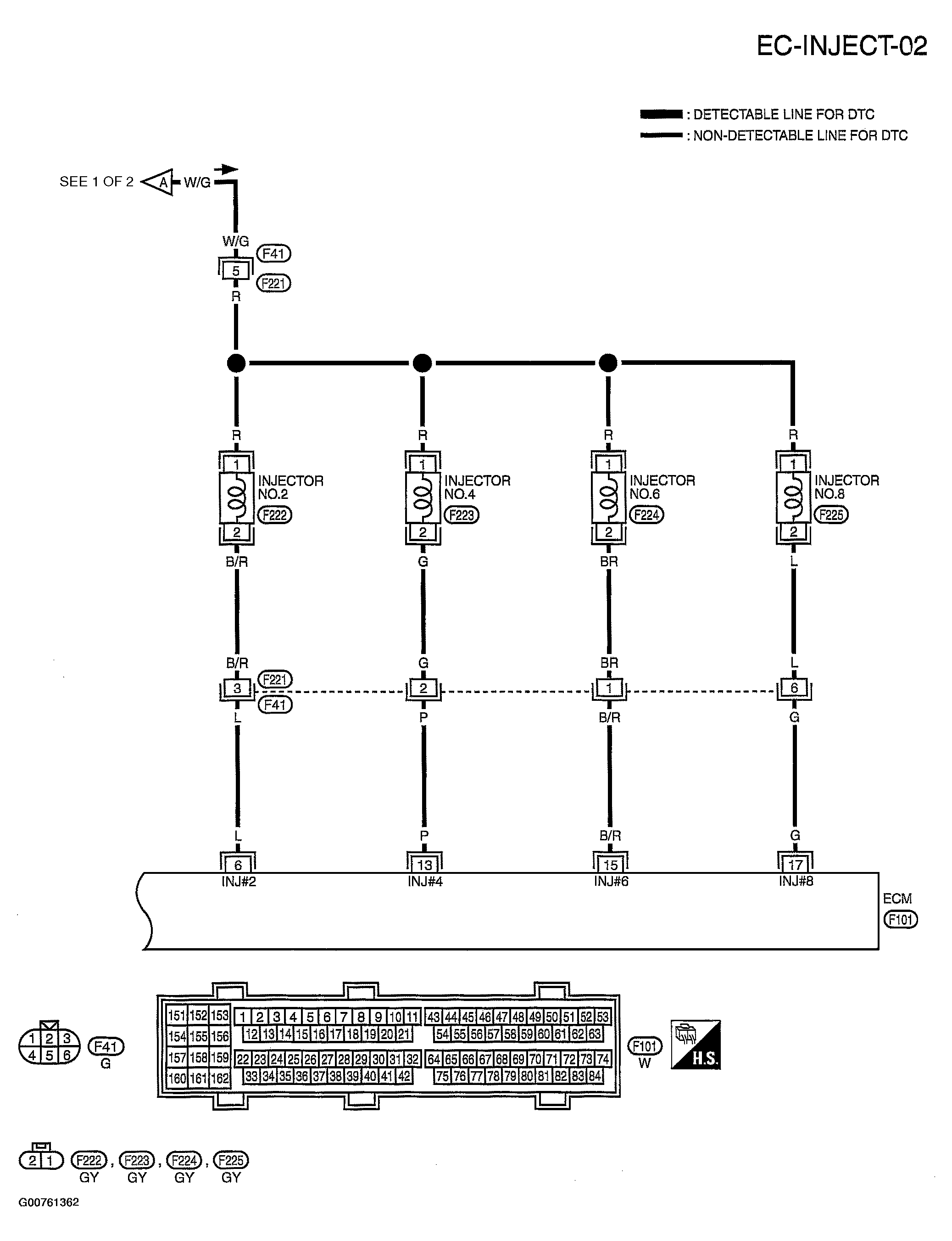

Fig 3: Circuit Diagram (2 Of 2) - EC-INJECT-02

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

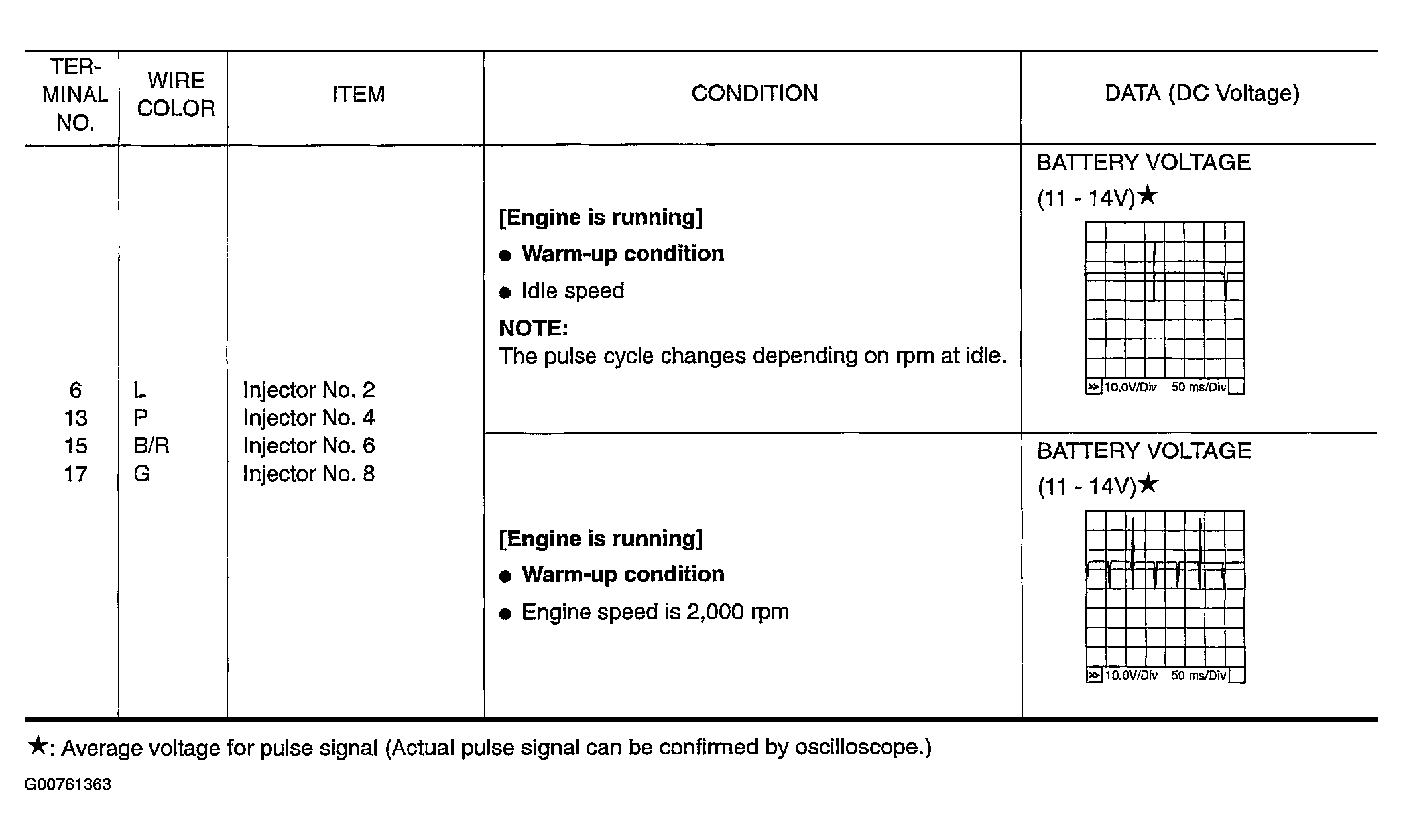

Fig 4: Specification data & reference values

Courtesy of NISSAN MOTOR CO., U.S.A.
