OBD System Operation Chart
>>
Summary Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Summary Chart

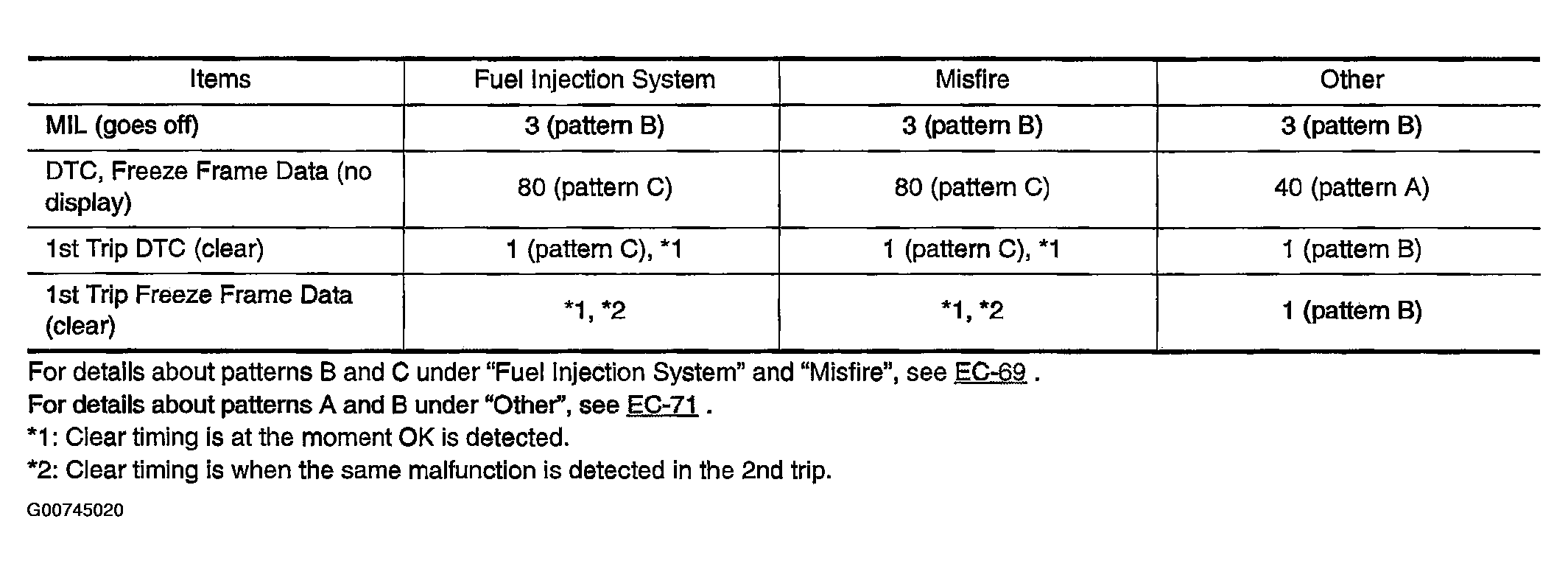

Fig 1: Summary Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
