Commercial Service Tools

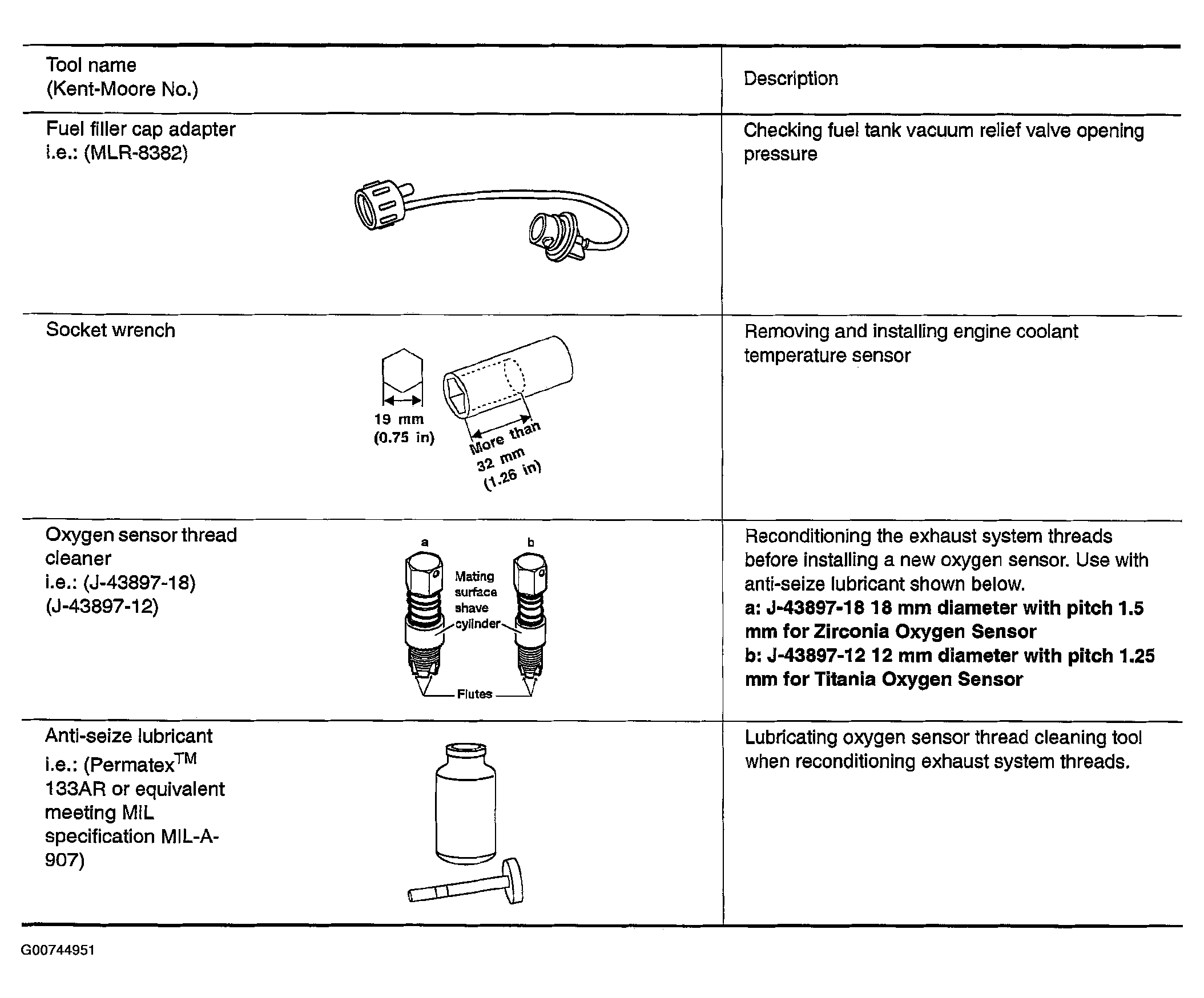

Fig 1: Commercial Service Tools (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

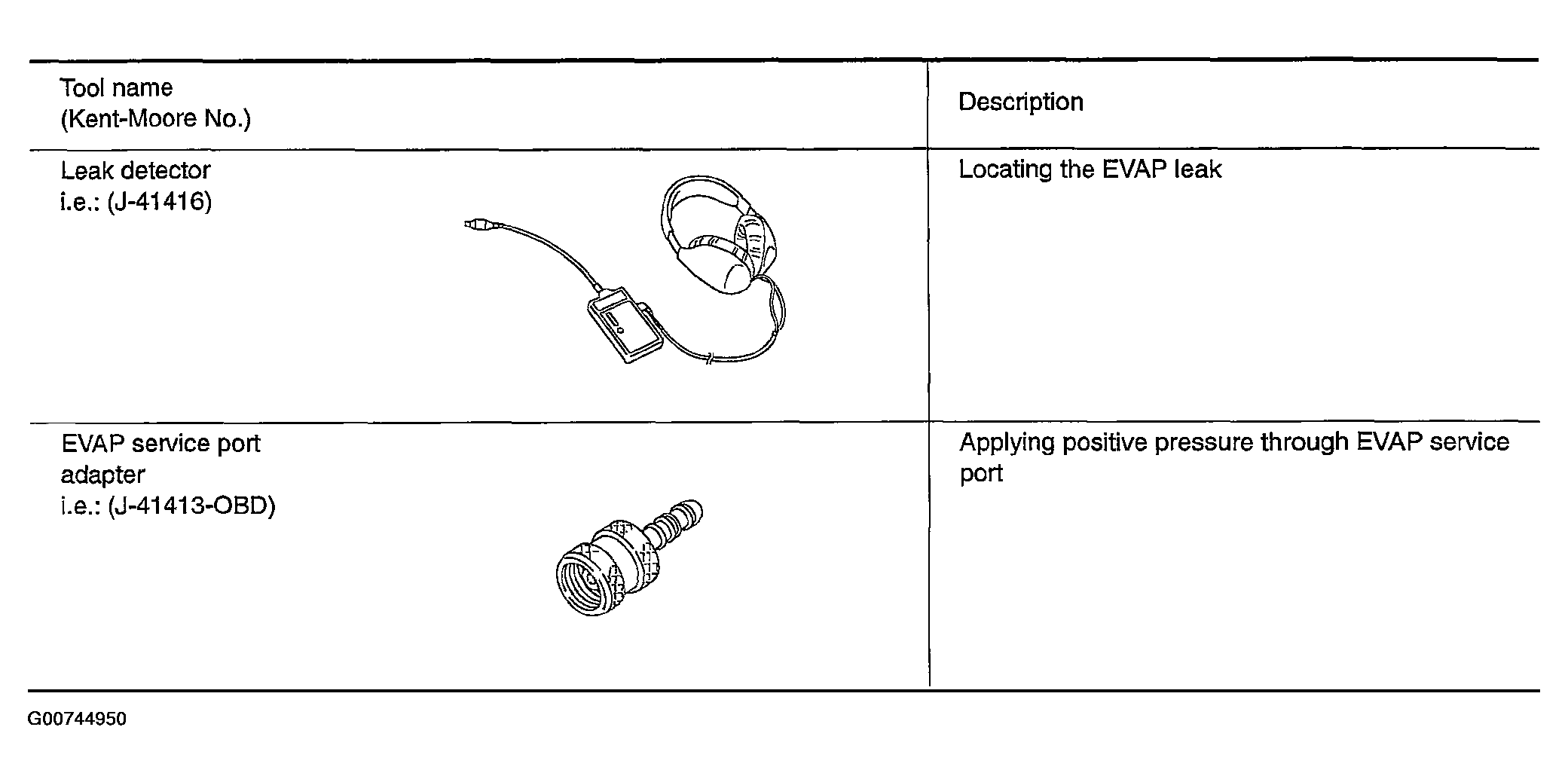

Fig 2: Commercial Service Tools (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
