1. Check Refrigerant Pressure Sensor Overall Function

1. Start engine and warm it up to normal operating temperature.
2. Turn A/C switch and blower switch ON.
3. Check voltage between ECM terminal 88 and ground with CONSULT-II or tester.
   1. Voltage: 1.0 - 4.0V

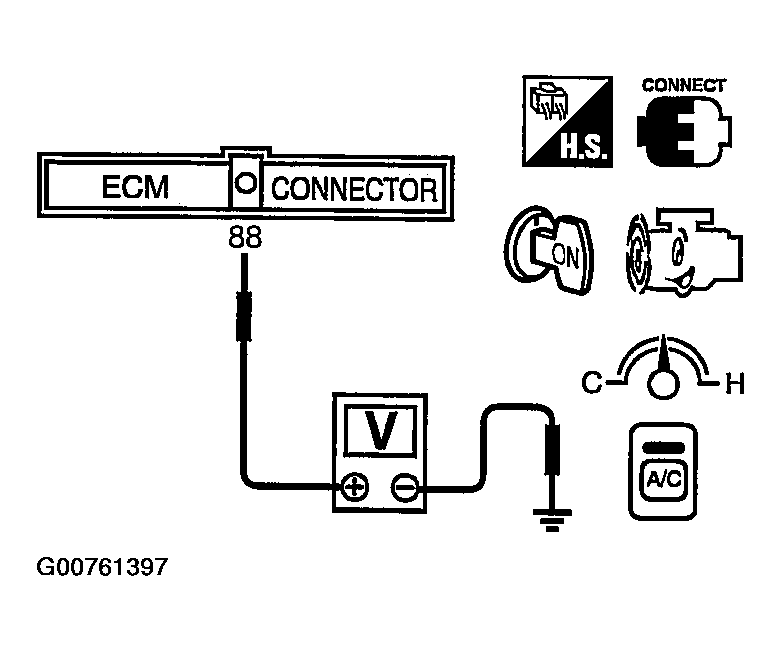

Fig 1: Checking voltage between ECM terminal 88 & ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: INSPECTION END

NG: GO TO 2.
