Fuel Temperature Sensor

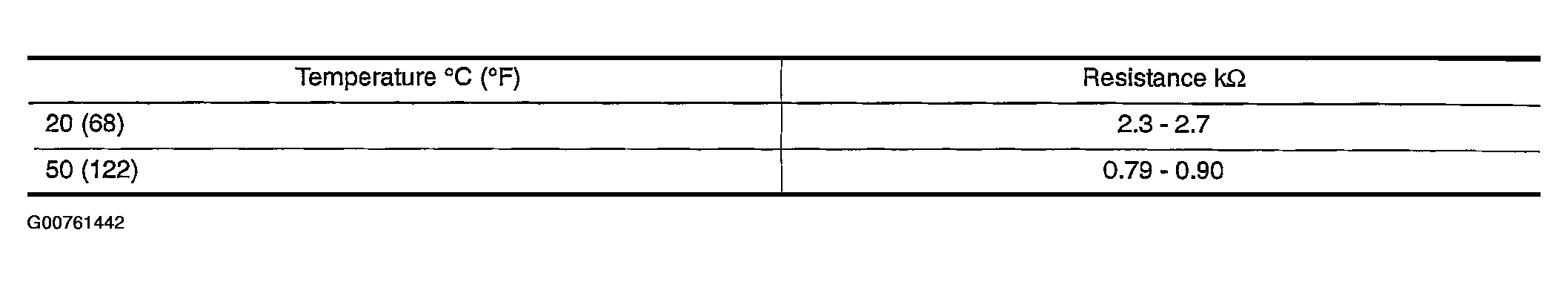

Fig 1: Fuel Temperature Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
