Idle Speed And Ignition Timing

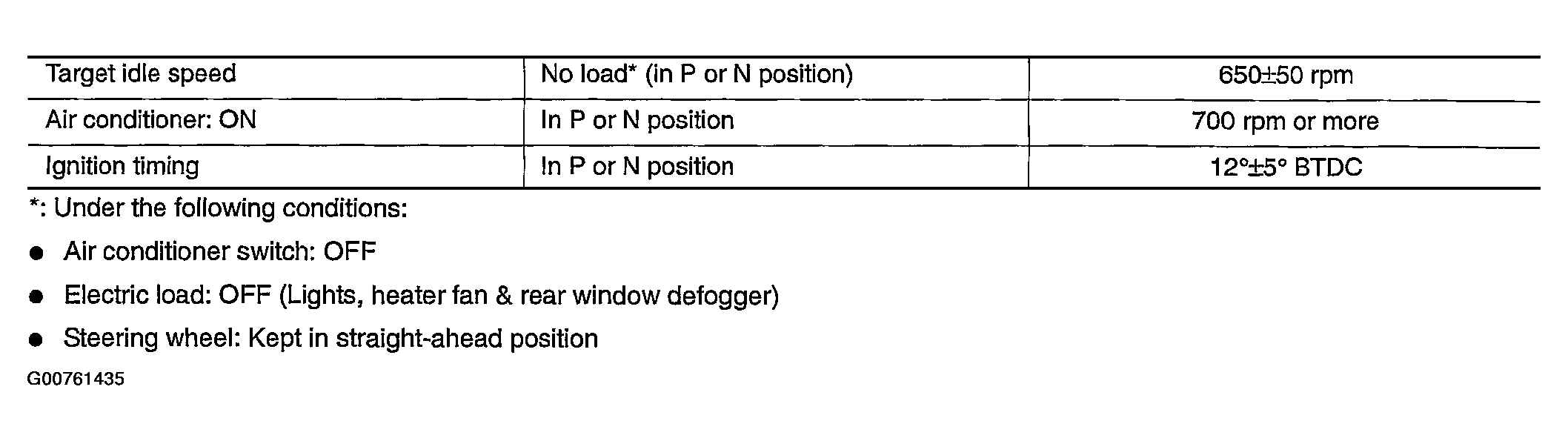

Fig 1: Idle Speed & Ignition Timing
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
