2. Check Overall Function

With CONSULT-II

1. Turn ignition switch ON.
2. Check "START SIGNAL" in "DATA MONITOR" mode with CONSULT-II under the following conditions.

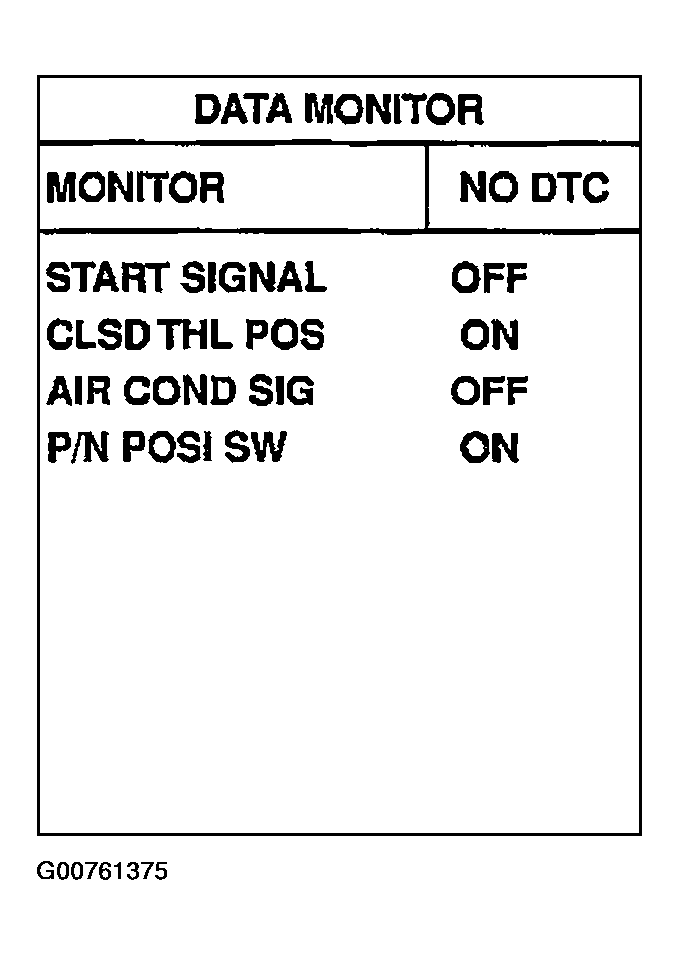

Fig 1: Checking Overall Function With CONSULT-II (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

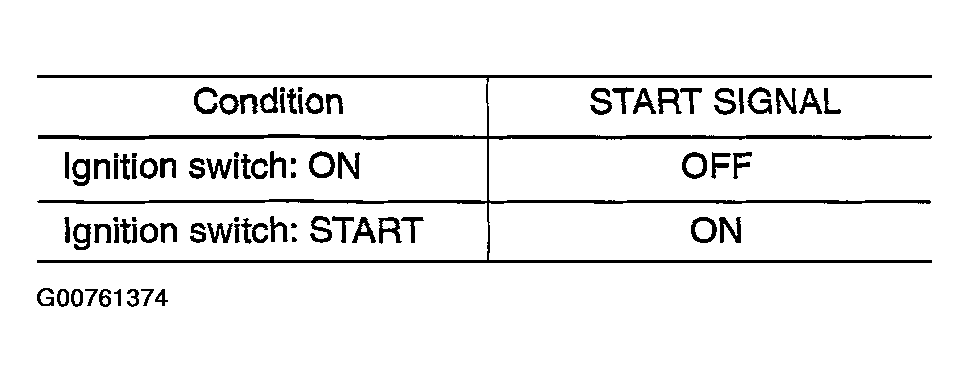

Fig 2: Checking Overall Function With CONSULT-II (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: INSPECTION END

NG: GO TO 4.
