3. Check Overall Function

Without CONSULT-II

Check voltage between ECM terminal 59 and ground under the following conditions.

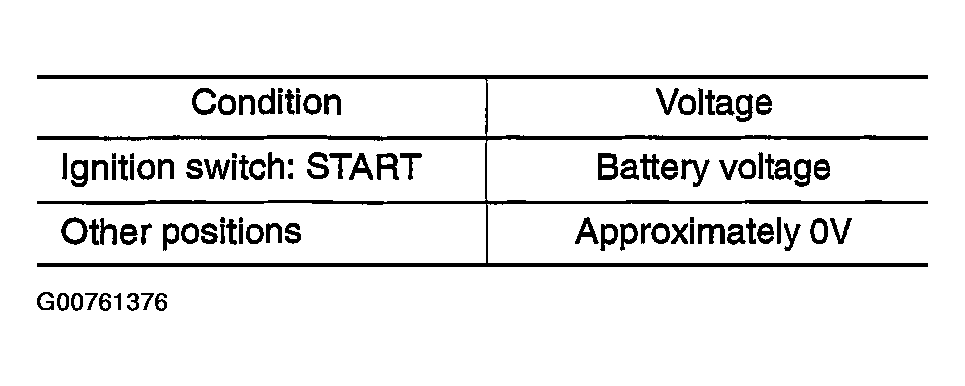

Fig 1: Checking Overall Function Without CONSULT-II (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

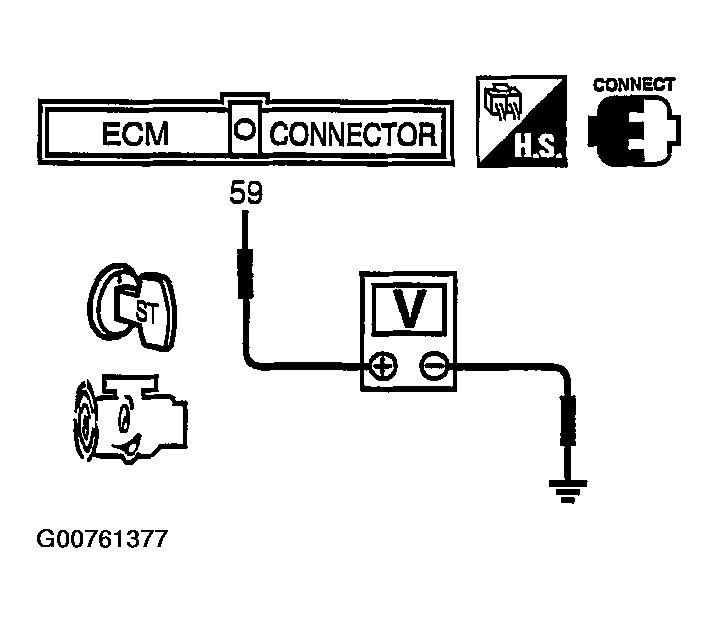

Fig 2: Checking Overall Function Without CONSULT-II (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: INSPECTION END

NG: GO TO 4.
