Work Flow

Flow Chart

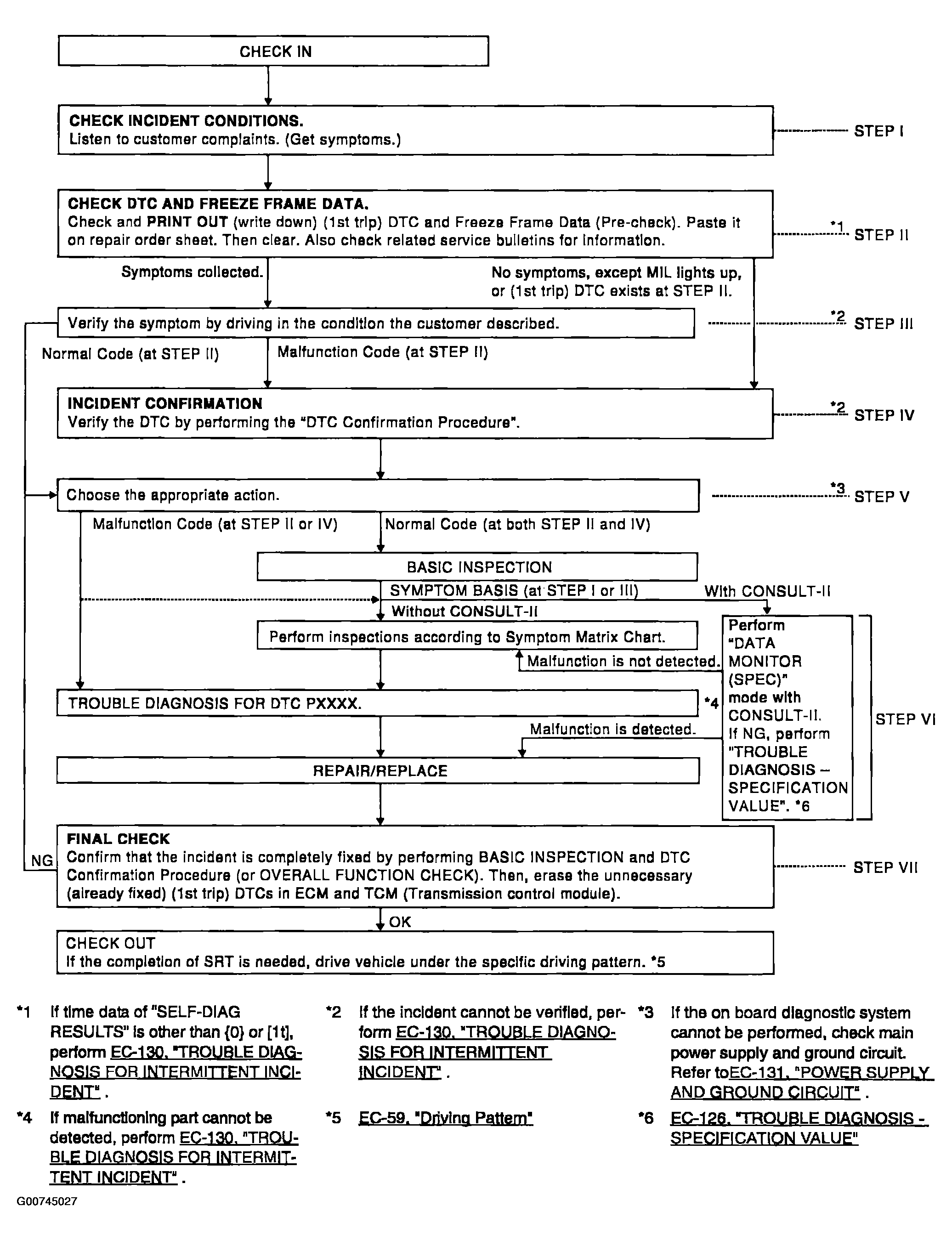

Fig 1: Flow Chart
G00745027Courtesy of NISSAN MOTOR CO., U.S.A.

Description for Work Flow

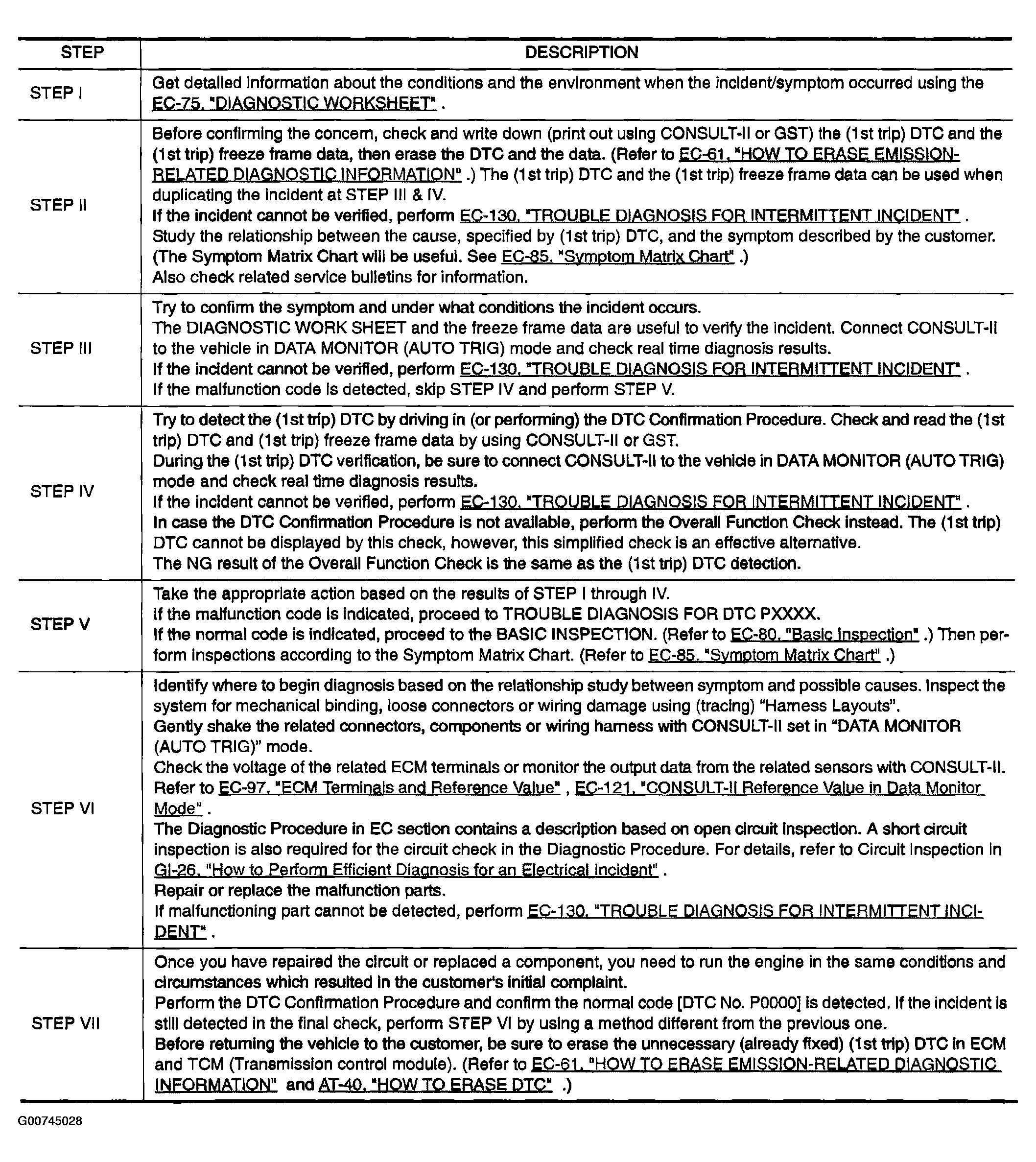

Fig 2: Description for Work Flow
G00745028Courtesy of NISSAN MOTOR CO., U.S.A.
