VIAS Control Solenoid Valve

With CONSULT-II

1. Reconnect harness connectors disconnected.
2. Turn ignition switch ON.
3. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode.
4. Check air passage continuity and operation delay time under the following conditions.

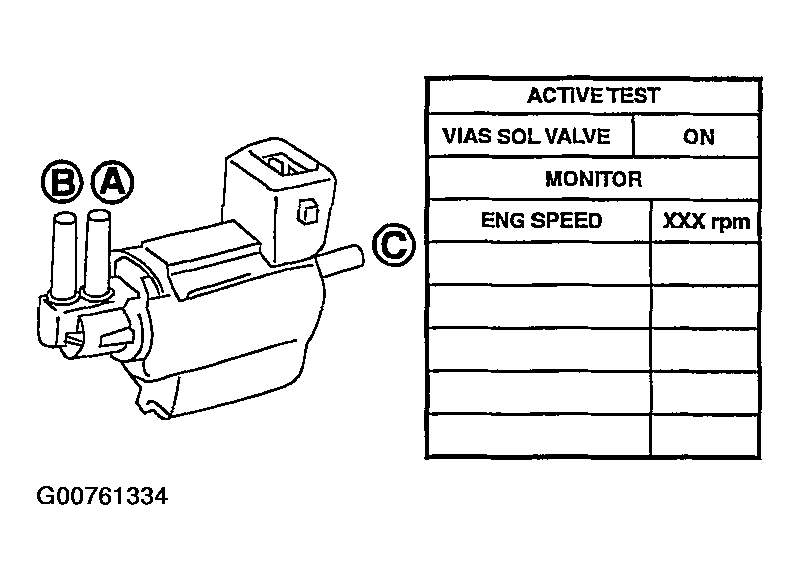

Fig 1: Checking Air Passage Continuity With CONSULT-II (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

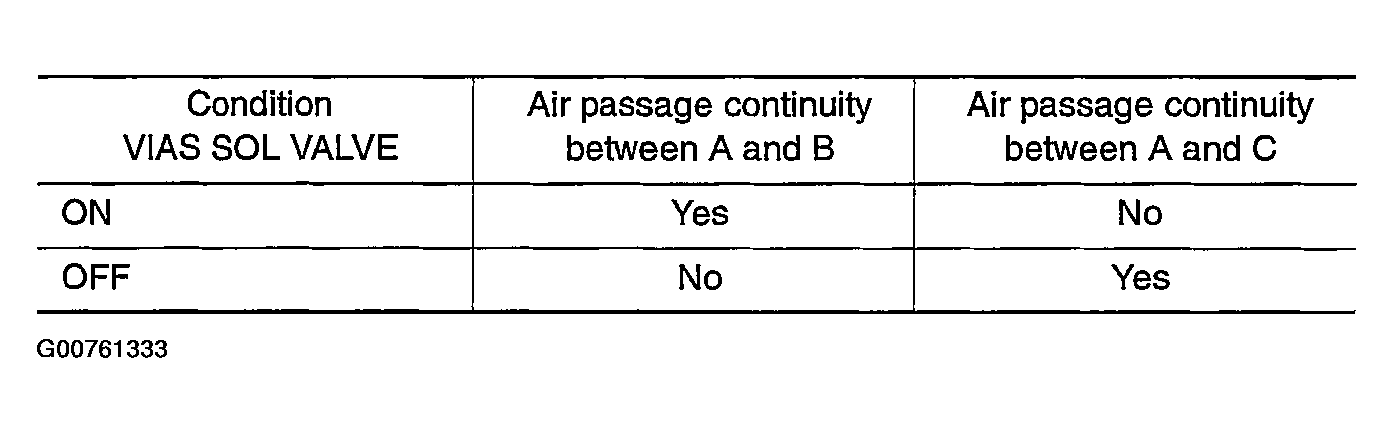

Fig 2: Checking Air Passage Continuity With CONSULT-II (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Operation takes less than 1 second.

With GST

Check air passage continuity and operation delay time under the following conditions.

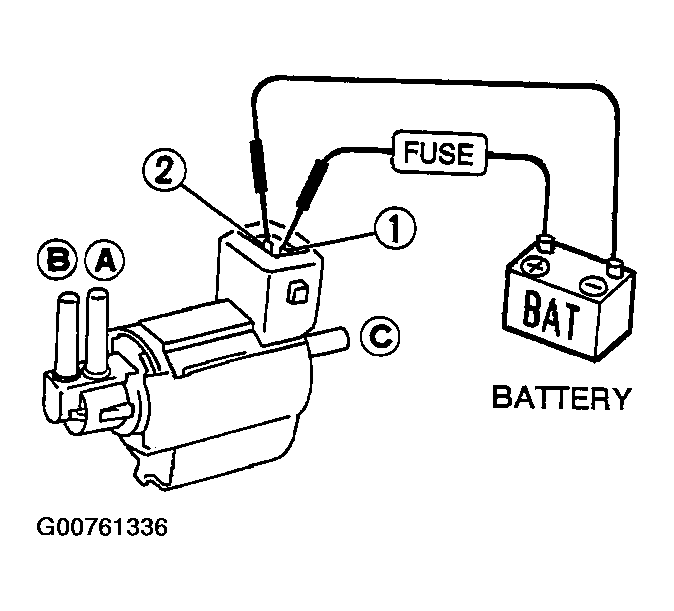

Fig 3: Checking Air Passage Continuity Without CONSULT-II (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

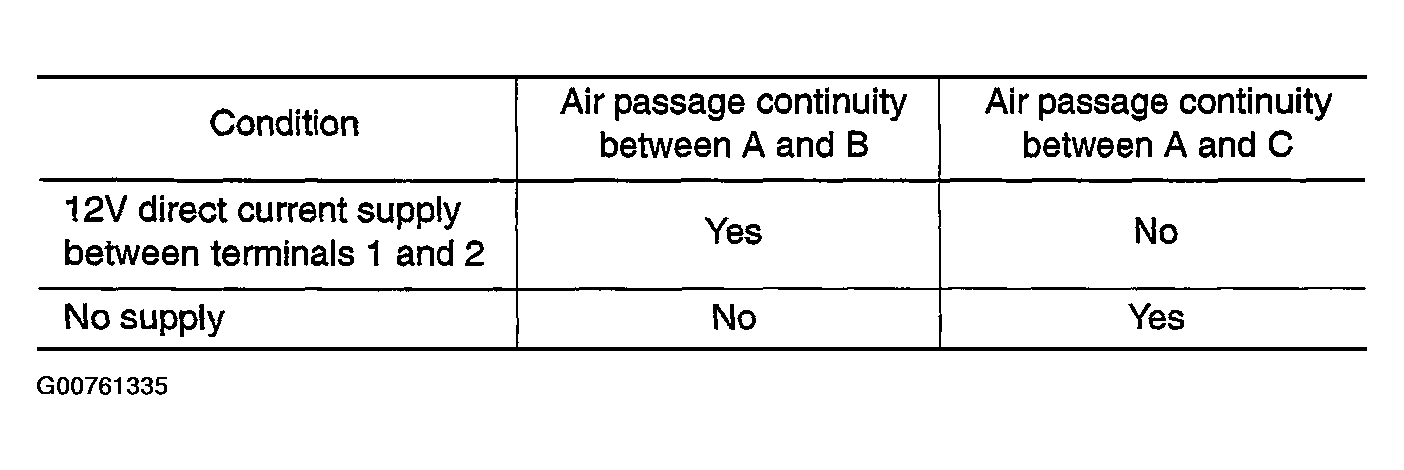

Fig 4: Checking Air Passage Continuity Without CONSULT-II (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Operation takes less than 1 second.
