Disassembly And Assembly: Disassembly: Notes

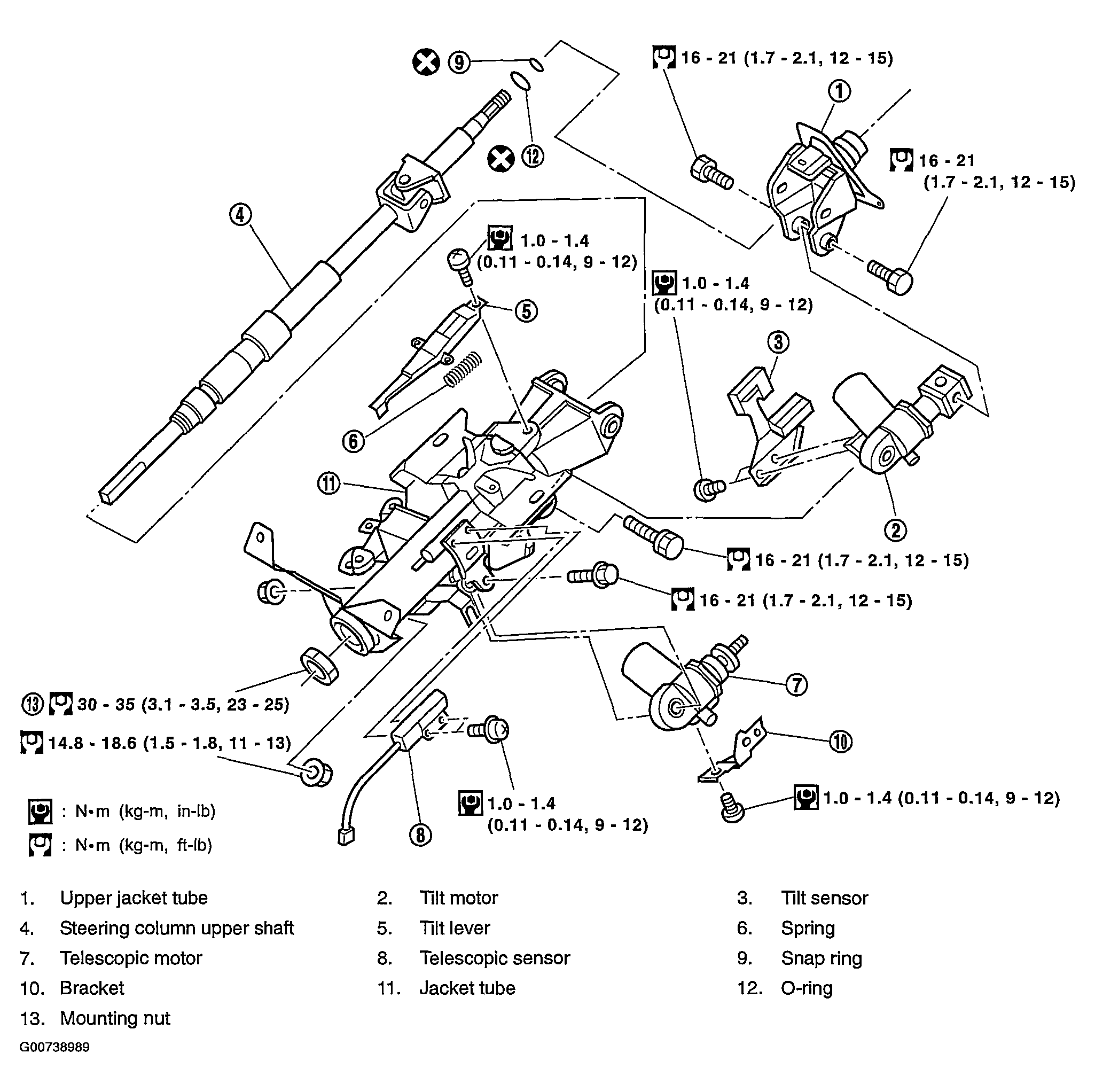

Fig 1: Displaying Steering Column Components

G00738989

Courtesy of NISSAN MOTOR CO., U.S.A.
