With Consult-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and warm it up to normal operating temperature.
  4. Run engine for at least 10 seconds at idle speed.
  5. If DTC is detected, go to DIAGNOSTIC PROCEDURE .

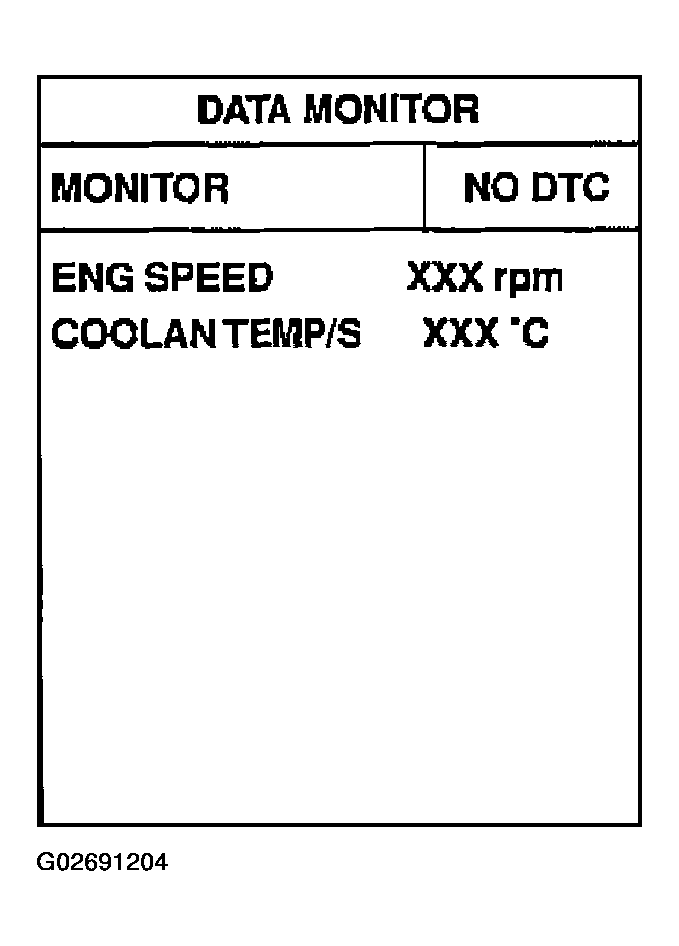

    Fig 1: Display "DATA MONITOR" Mode
    G02691204Courtesy of NISSAN MOTOR CO., U.S.A.
