With Consult-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Wait at least 5 seconds.
  4. If DTC is detected, go to DIAGNOSTIC PROCEDURE . If DTC is not detected, go to next step.
  5. Start engine and wait at least 5 seconds.
  6. If DTC is detected, go to DIAGNOSTIC PROCEDURE .

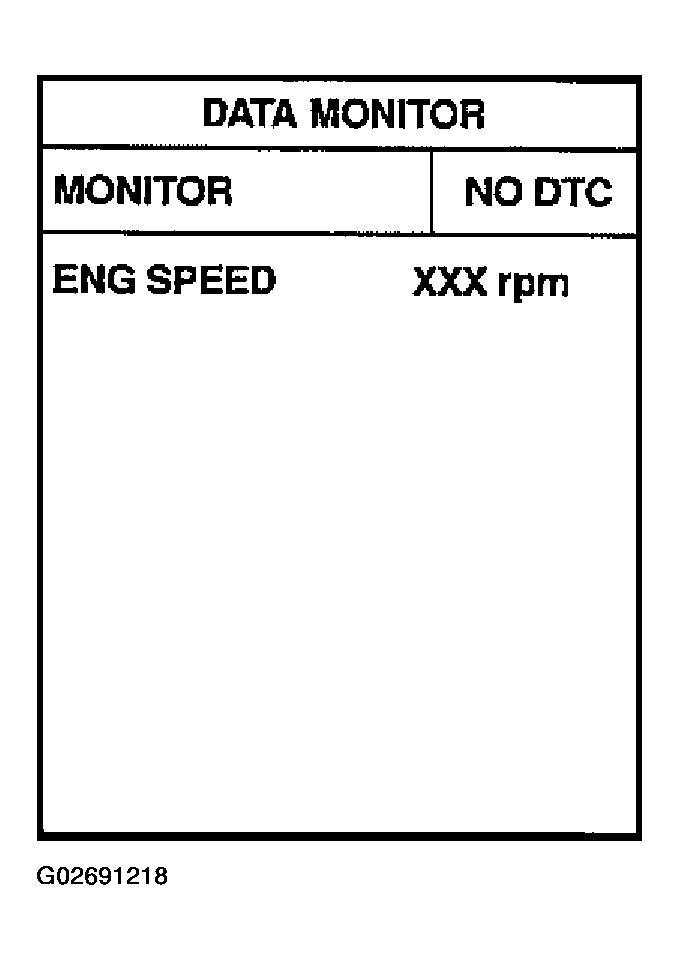

    Fig 1: Display "DATA MONITOR" Mode For DTC P0103
    G02691218Courtesy of NISSAN MOTOR CO., U.S.A.
