On Board Diagnosis Logic

The heated oxygen sensor 2 has a much longer switching time between rich and lean than the air fuel ratio (A/F) sensor 1. The oxygen storage capacity of the three way catalyst (manifold) causes the longer switching time. To judge the malfunctions of heated oxygen sensor 2, ECM monitors whether the minimum voltage of sensor is sufficiently low during the various driving condition such as fuel-cut.

Fig 1: DTC P1146, P1166 HO2S2 Identifying Correct Voltage Signal Graph

Courtesy of NISSAN MOTOR CO., U.S.A.

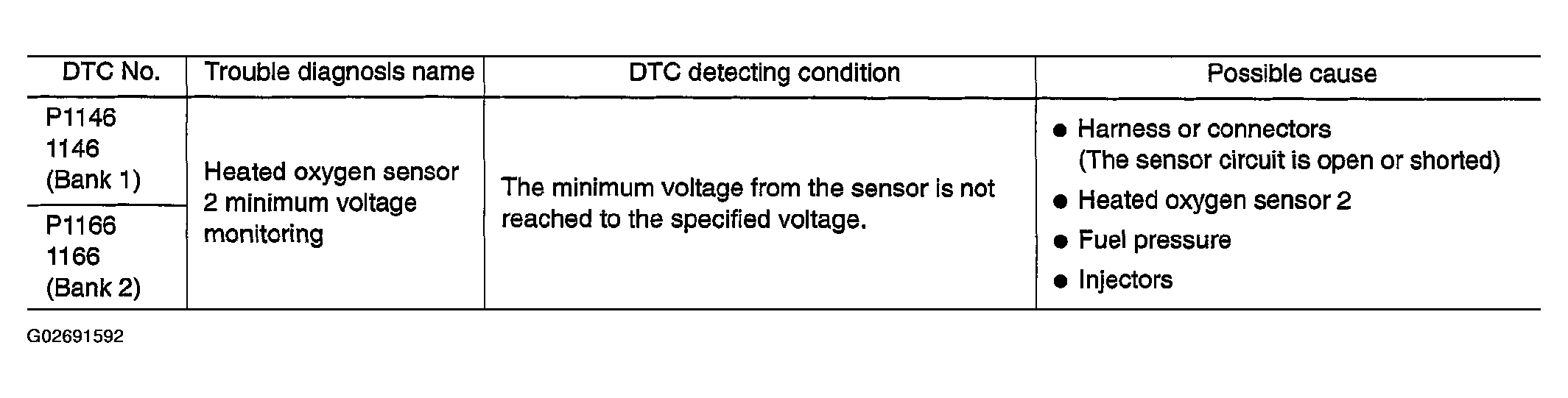

Fig 2: DTC P1146, P1166 HO2S2 - On Board Diagnosis Logic

Courtesy of NISSAN MOTOR CO., U.S.A.
