On Board Diagnosis Logic

Freeze frame data is not stored in the ECM for this self-diagnosis. The MIL will not light up for this self-diagnosis.

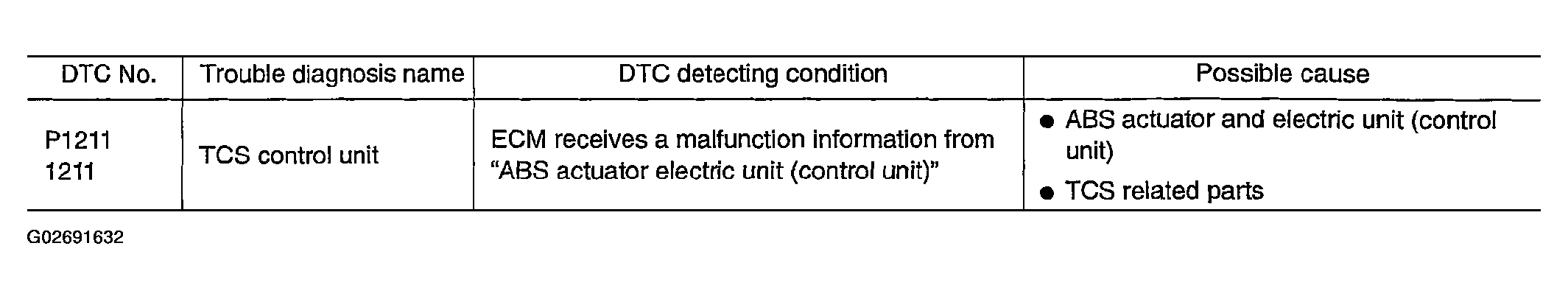

Fig 1: DTC P1211 TCS Control Unit - On Board Diagnosis Logic
G02691632Courtesy of NISSAN MOTOR CO., U.S.A.
