Procedure A

1. Turn ignition switch OFF
2. Disconnect IPDM E/R harness connector E120
3. Check voltage between IPDM E/R terminal 22 and ground with CONSULT-II or tester

   Voltage: Battery voltage

OK or NG

OK: GO TO  3.

NG: GO TO 2.

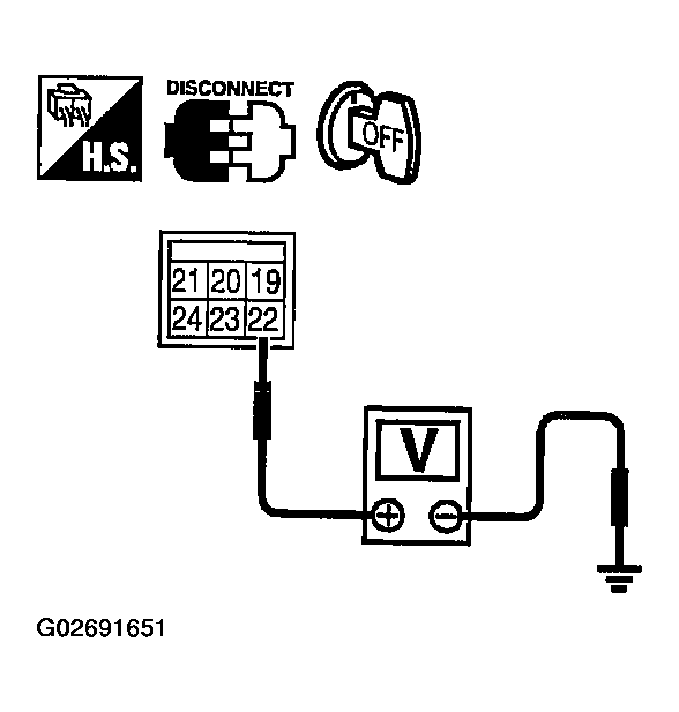

Fig 1: DTC P1217 Checking Voltage Between IPDM E/R Terminal 22 & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

Check the following.

• 40A fusible link
• Harness for open or short between IPDM E/R and battery

  : Repair open circuit or short to ground or short to power in harness or connectors.

1. Disconnect cooling fan motor harness connector
2. Check harness continuity between cooling fan motor terminal 1 and IPDM E/R terminal 20, cooling fan motor terminal 2 and body ground

   Refer to wiring diagram.

   Continuity should exist.

3. Also check harness for short to ground and short to power

OK or NG

OK: GO TO 4.

NG: Repair open circuit or short to ground or short to power in harness or connectors.

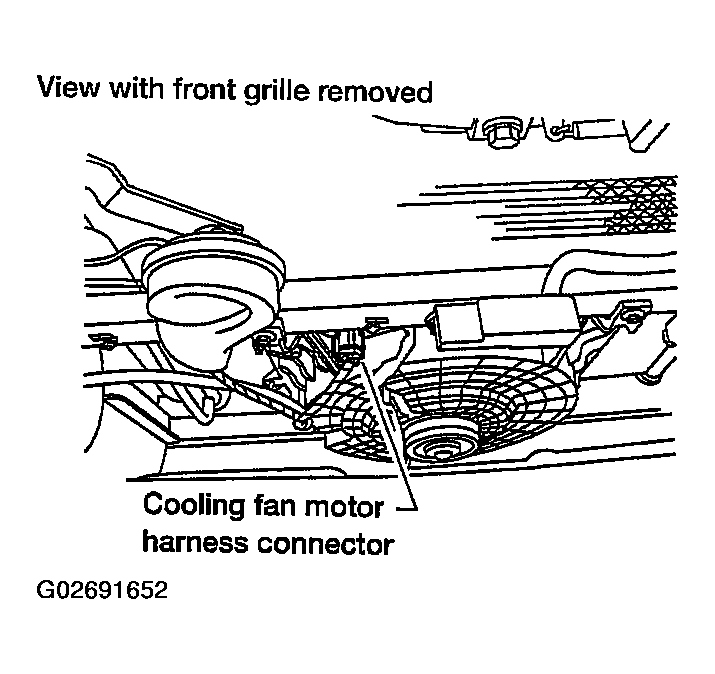

Fig 2: DTC P1217 Locating Cooling Fan Motor Harness Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENT INSPECTION .

OK or NG

OK: GO TO 5.

NG: Replace cooling fan motor

Perform TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

OK or NG

OK: Replace IPDM E/R. Refer to FUSES & CIRCUIT BREAKERS .

NG: Repair or replace harness connectors.
