DTC P1217: Engine Over Temperature: Wiring Diagram

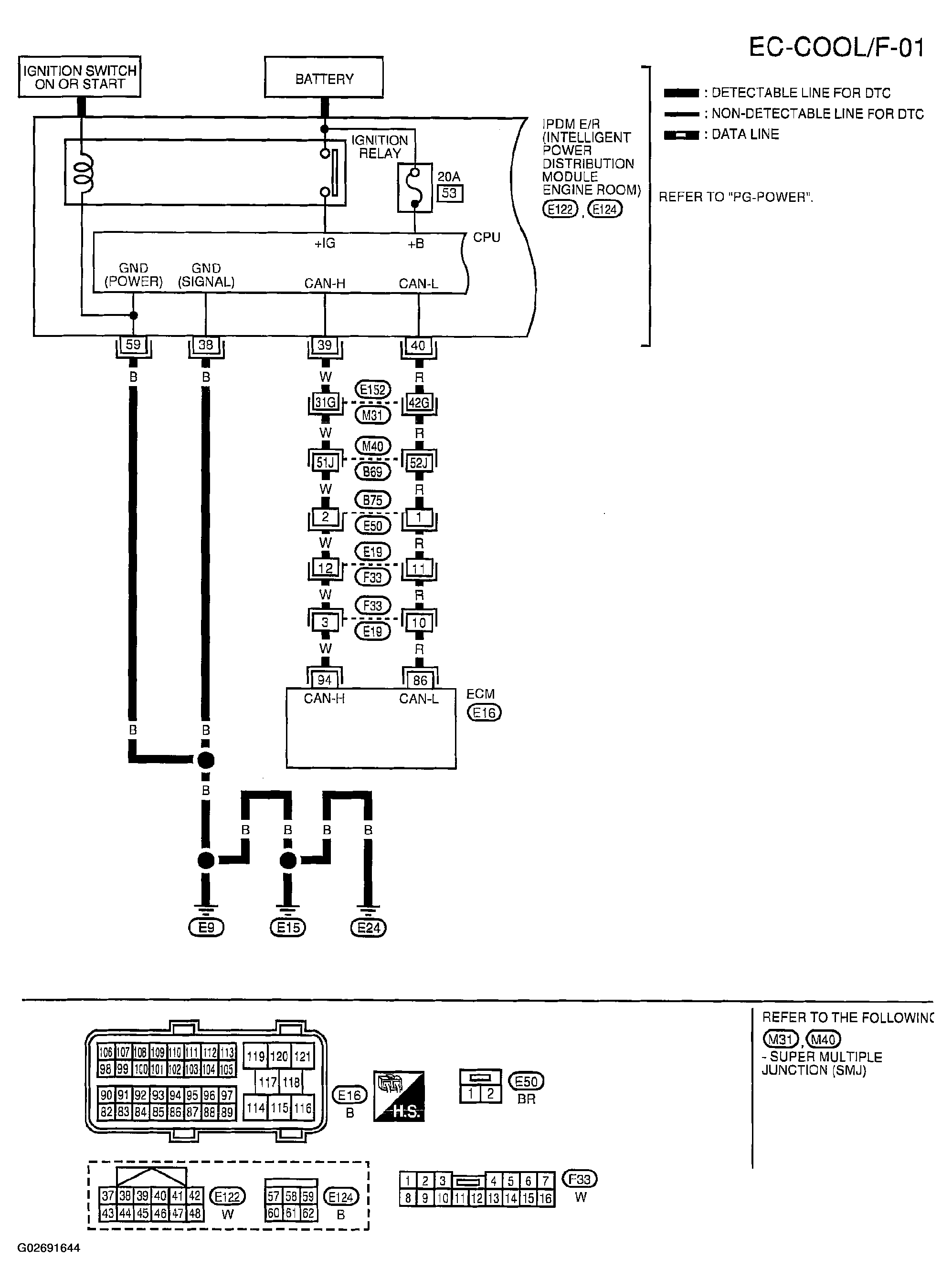

Fig 1: DTC P1217 Engine Over Temperature - Wiring Diagram (1 Of 2) - EC-COOL/F-01

Courtesy of NISSAN MOTOR CO., U.S.A.

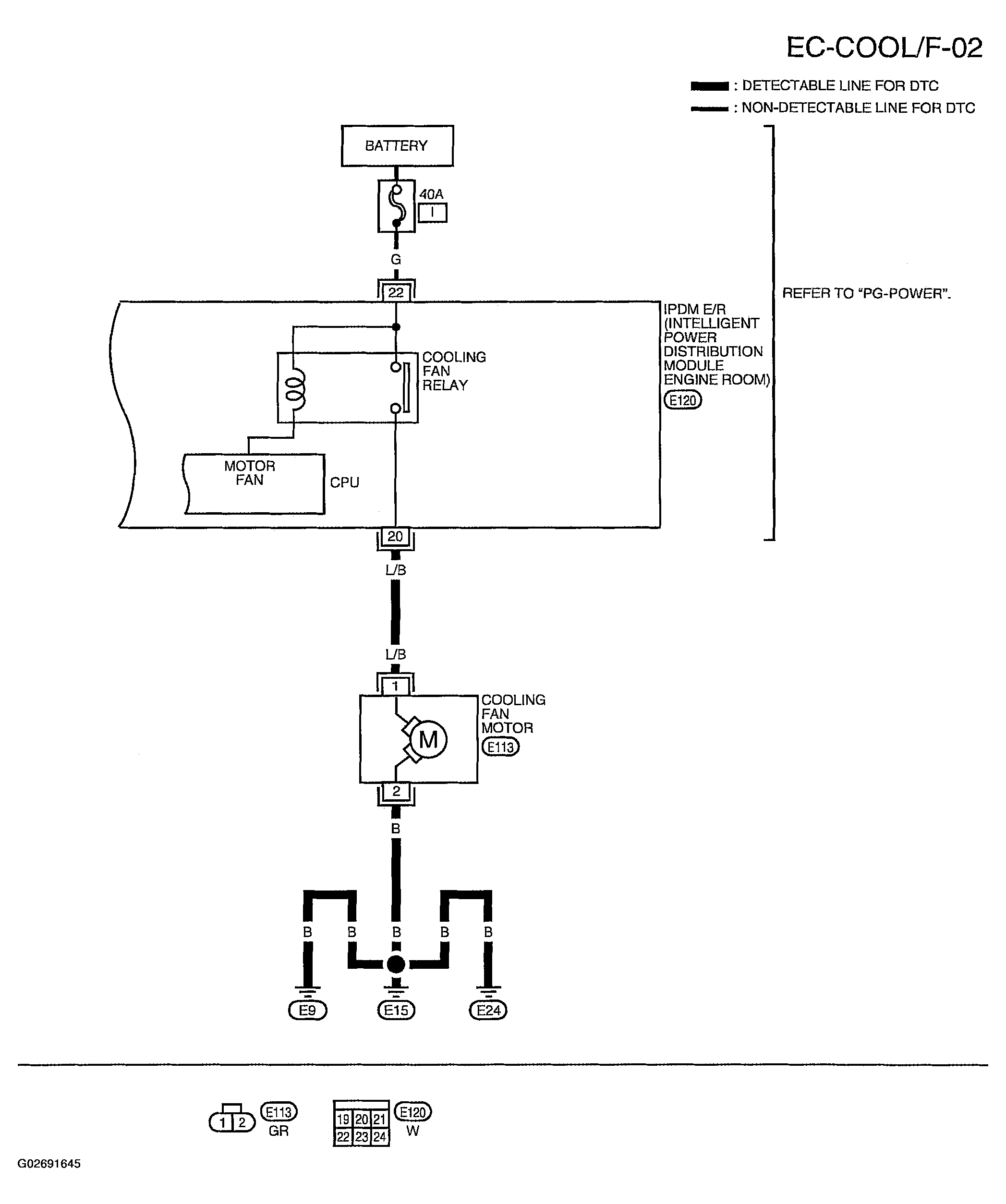

Fig 2: DTC P1217 Engine Over Temperature - Wiring Diagram (1 Of 2) - EC-COOL/F-02

Courtesy of NISSAN MOTOR CO., U.S.A.
