DTC P1279, P1289: A/F Sensor 1: Wiring Diagram: Bank1

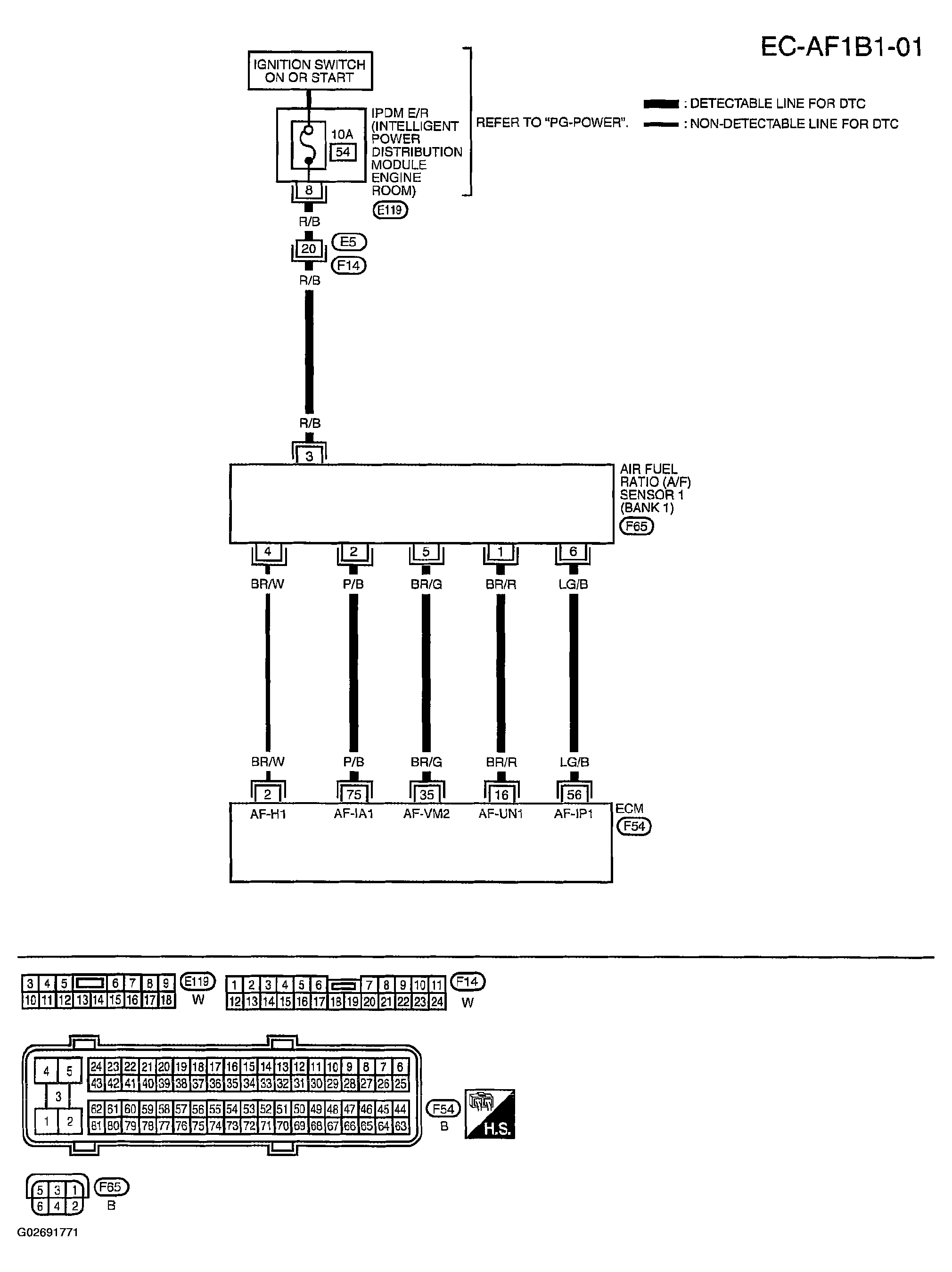

Fig 1: DTC P1279, P1289 A/F Sensor 1 Wiring Diagram - BANK 1 - EC-AF1B1-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

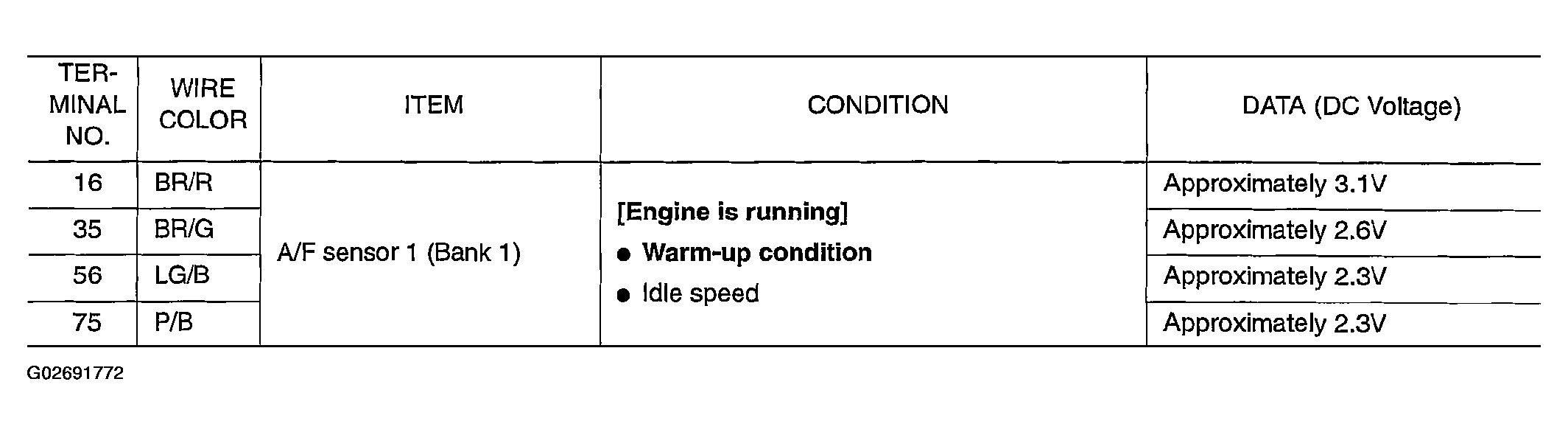

Fig 2: DTC P1279, P1289 Terminal No, Specification Data & Reference Values
