Work Flow

Flow Chart

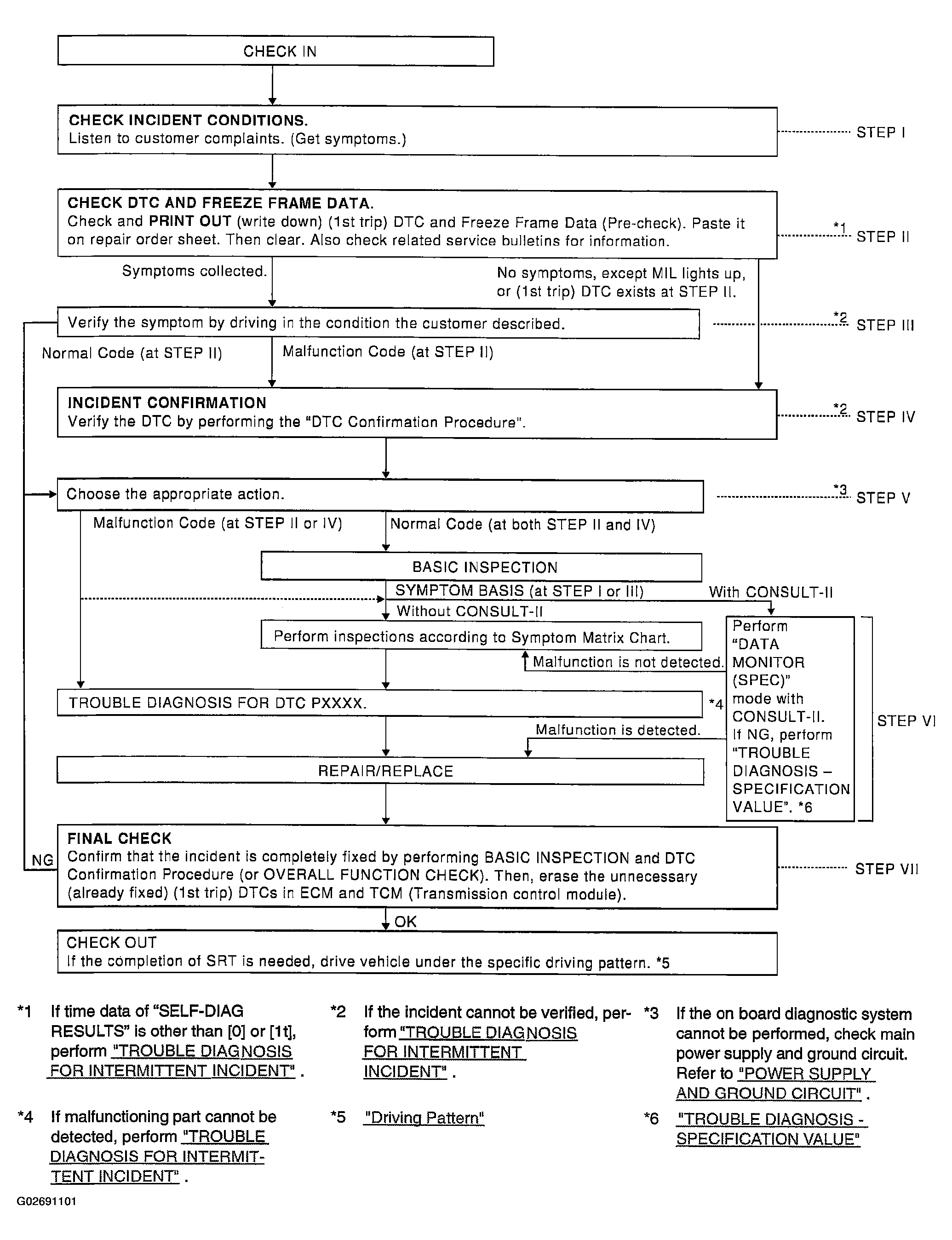

Fig 1: Trouble Diagnosis - Work Flow Chart
G02691101Courtesy of NISSAN MOTOR CO., U.S.A.

Description for Work Flow

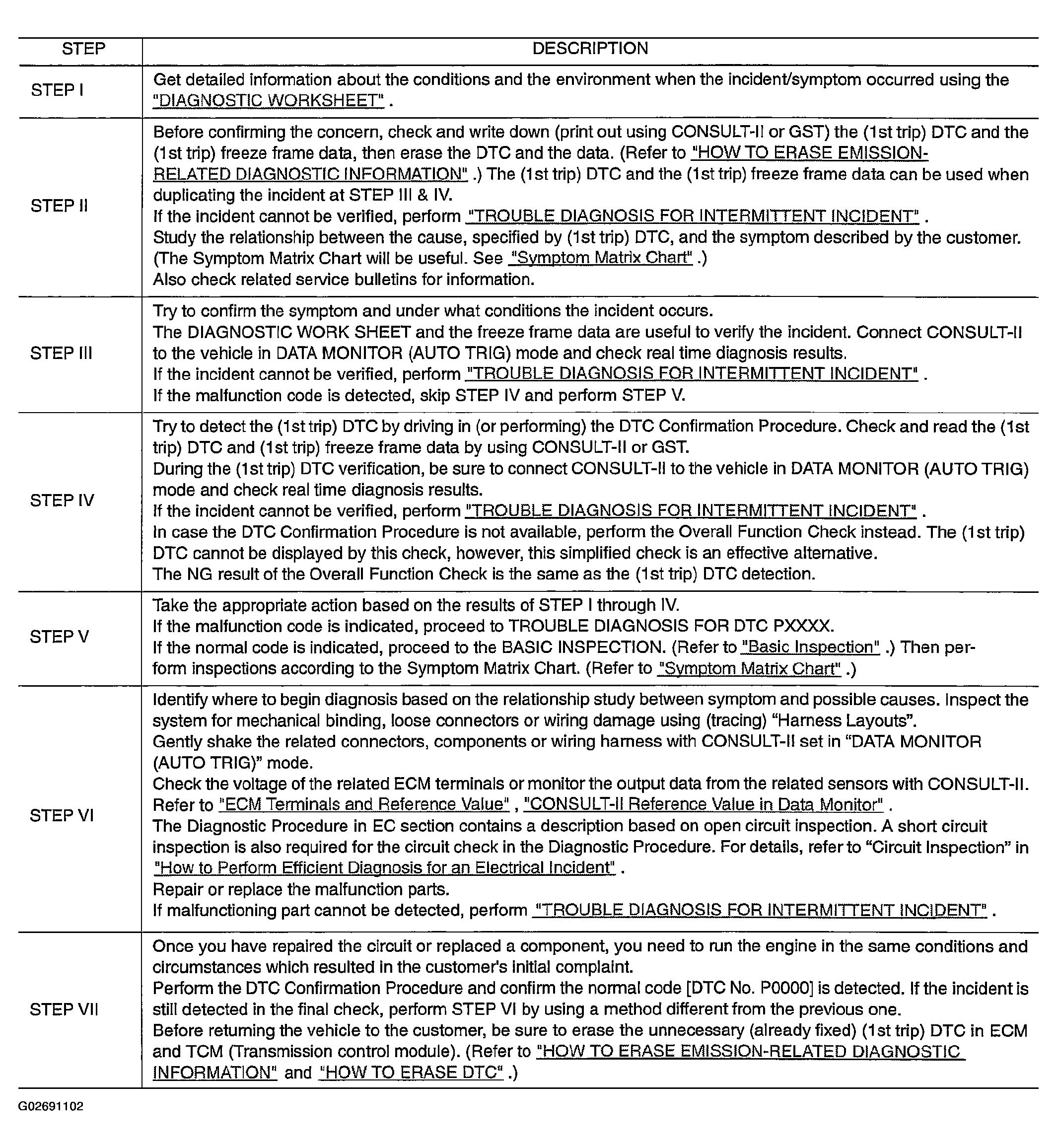

Fig 2: Description For Work Flow
G02691102Courtesy of NISSAN MOTOR CO., U.S.A.
