System Components

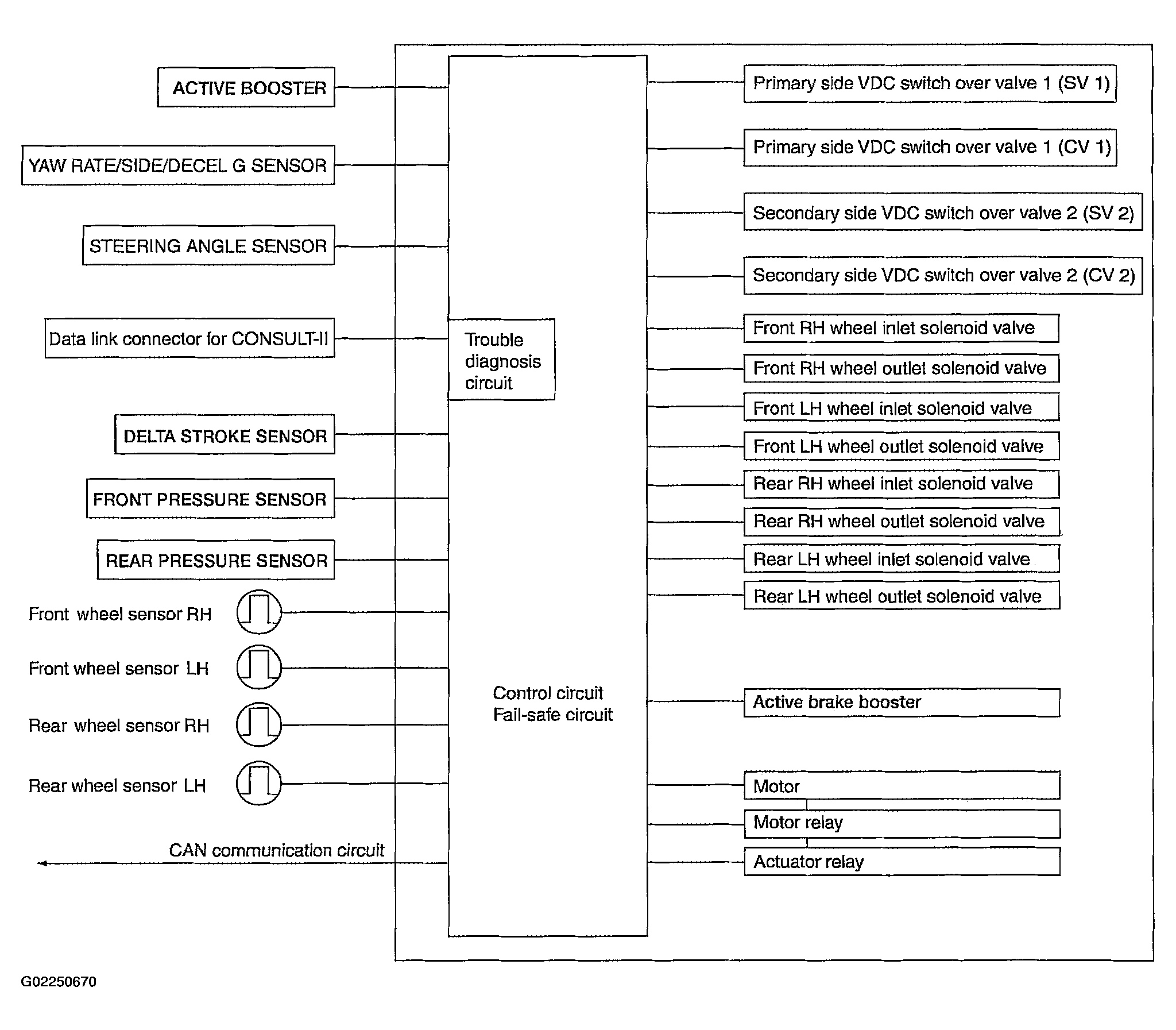

Fig 1: VDC/TCS/ABS System Description Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
