ASCD Indicator: Wiring Diagram

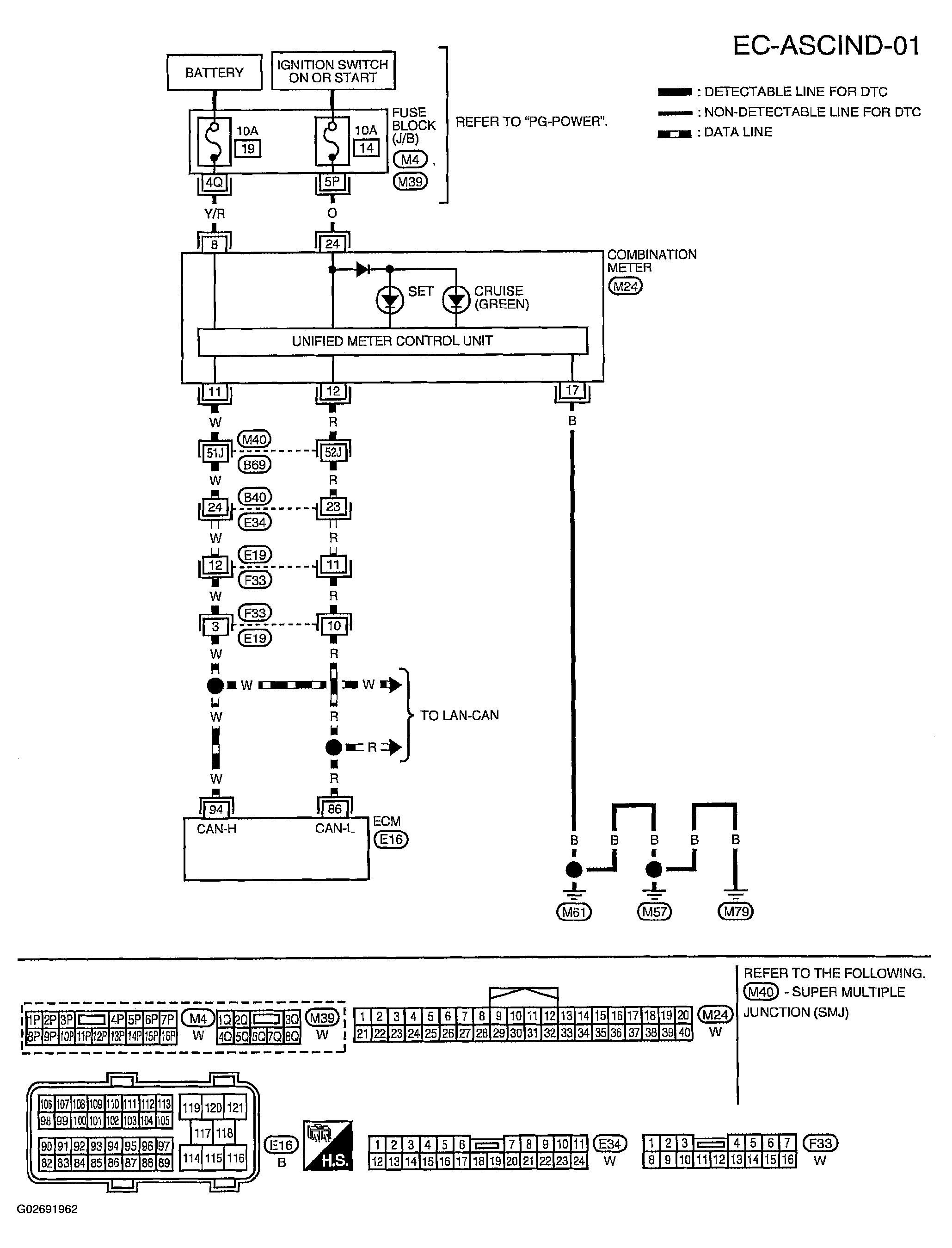

Fig 1: Identifying ASCD Indicator Wiring Diagram - EC-ASCIND-01
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
