Input/Output Signal Chart

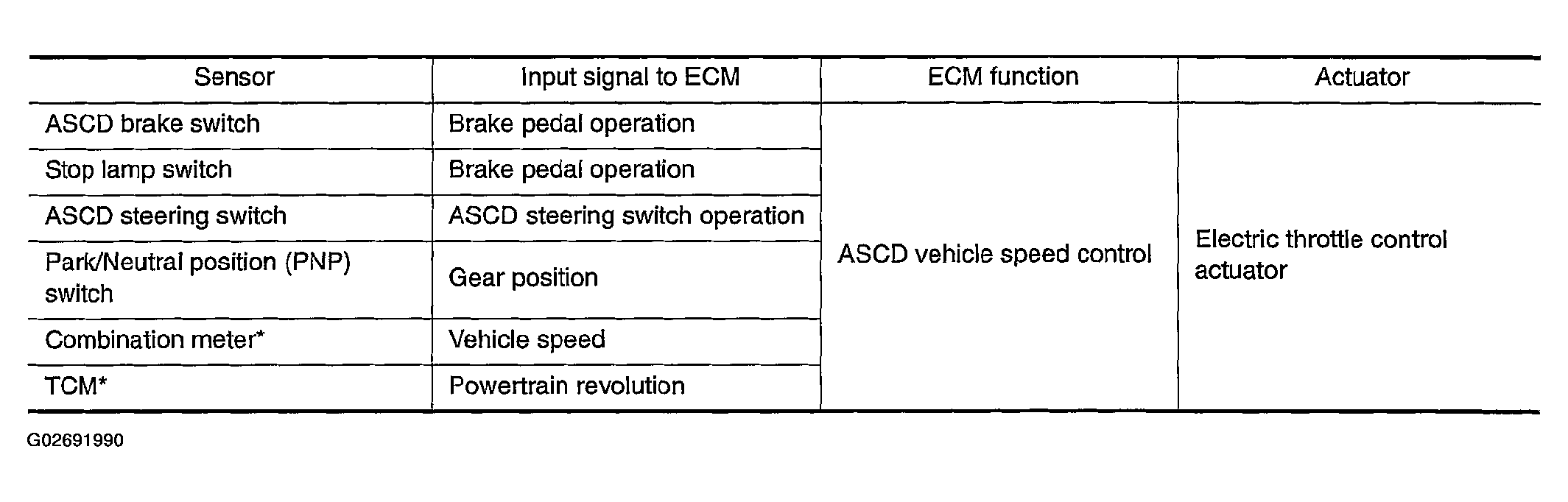

Fig 1: Input/Output Signal Chart
G02691990Courtesy of NISSAN MOTOR CO., U.S.A.

This signal is sent to the ECM through CAN communication line.
