Method B

  1. Remove No. 1 ignition coil.

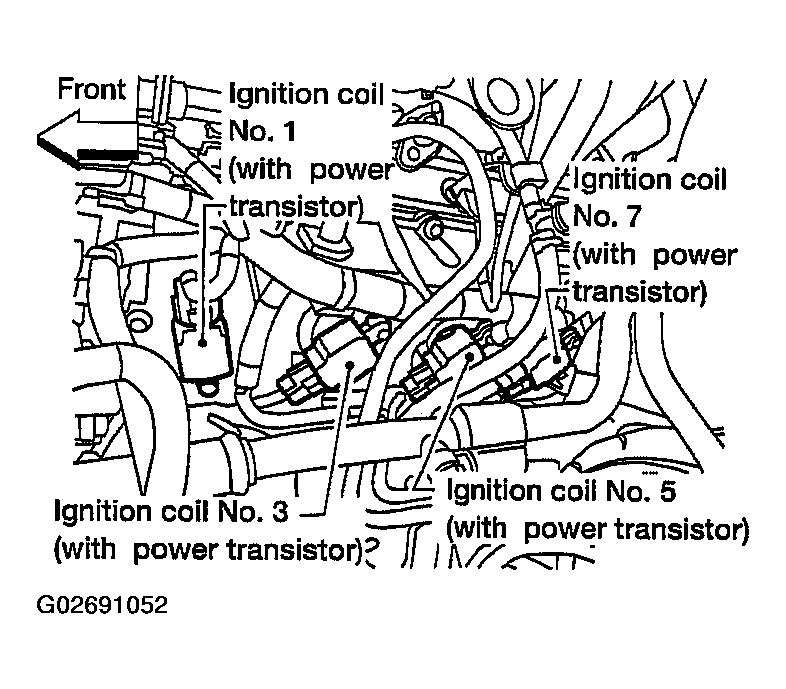

    Fig 1: Identifying Ignition Coil
    G02691052Courtesy of NISSAN MOTOR CO., U.S.A.

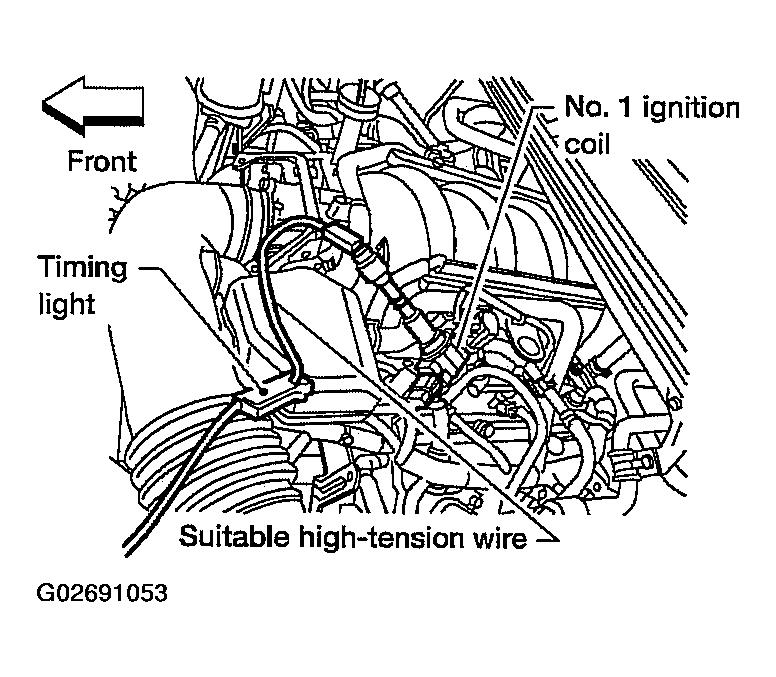

  2. Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.
    Fig 2: Connecting Ignition Coil & Spark Plug With Suitable High-Tension Wire
    G02691053Courtesy of NISSAN MOTOR CO., U.S.A.

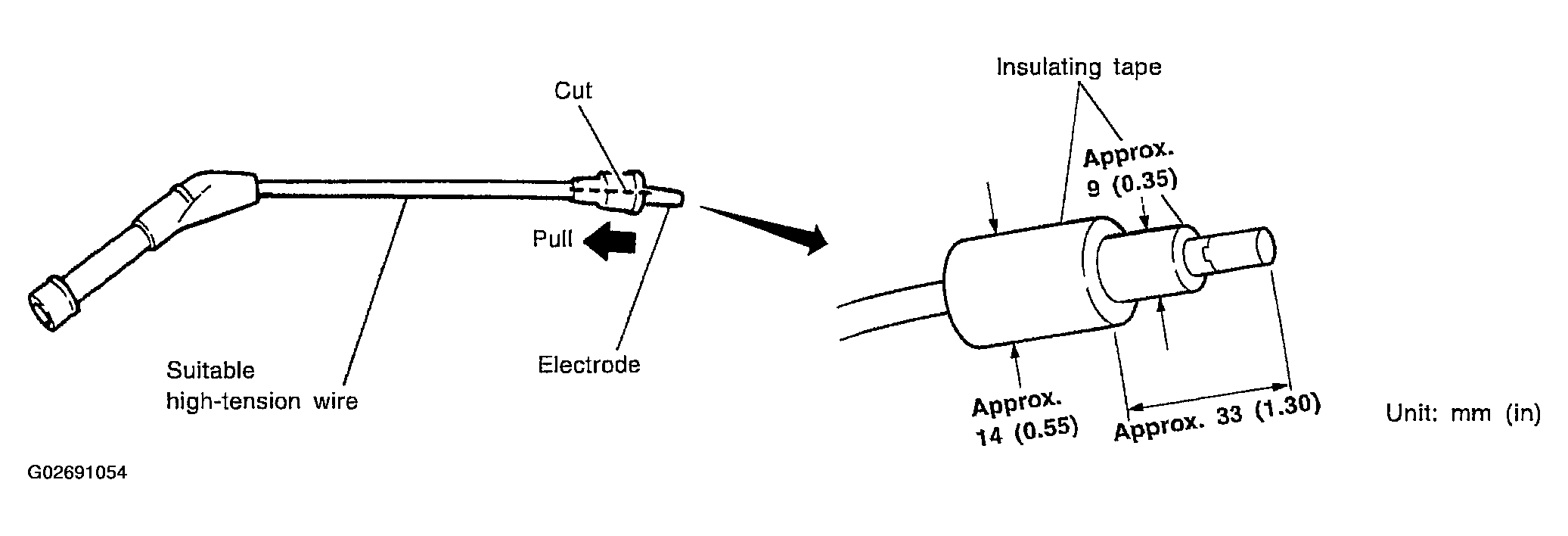

    Fig 3: Identifying Suitable High-Tension Wire & Dimensions
    G02691054Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

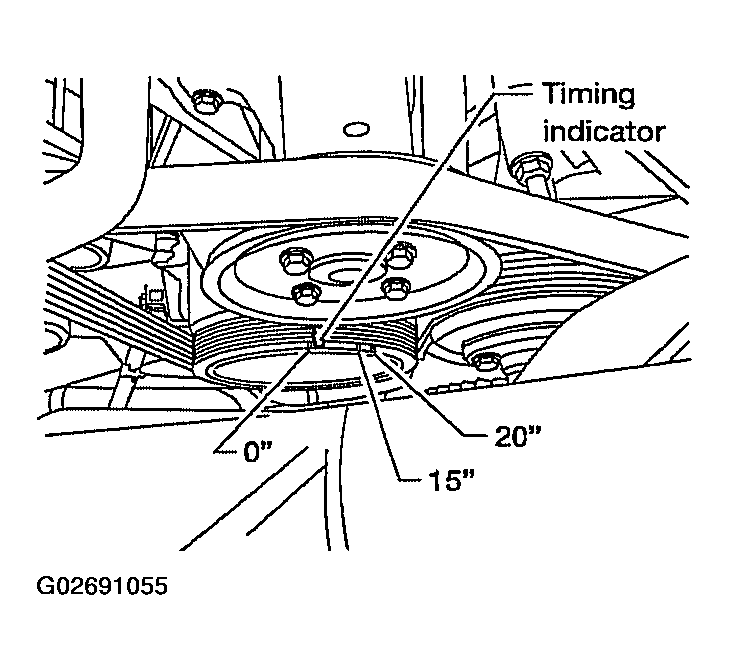

    Fig 4: Identifying Timing Indicator
    G02691055Courtesy of NISSAN MOTOR CO., U.S.A.
