Engine Coolant Temperature Sensor

Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.

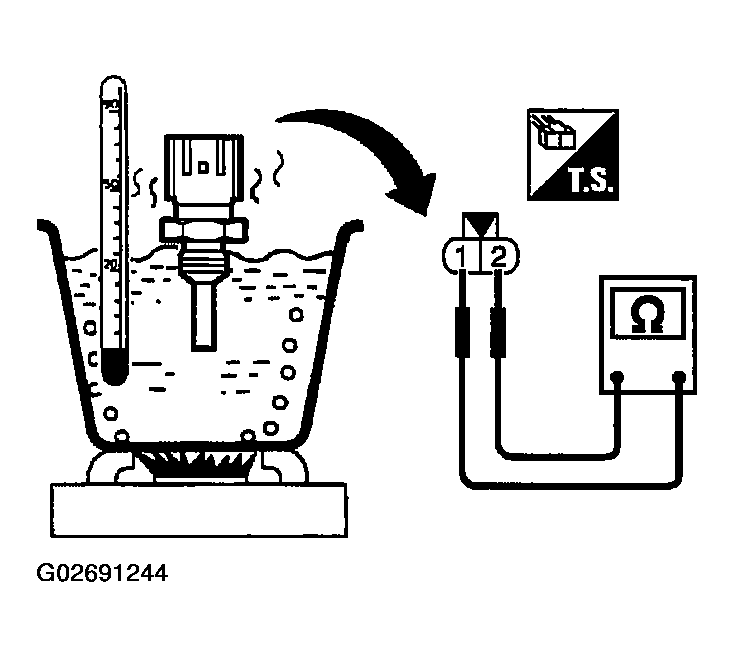

Fig 1: Checking Resistance Between Engine Coolant Temperature Sensor Terminals 1 & 2

Courtesy of NISSAN MOTOR CO., U.S.A.

REFERENCE DATA

Engine coolant temperature °C (°F)

Voltage⁽¹⁾ V

Resistance kΩ

20 (68)

3.5

2.1 - 2.9

50(122)

2.2

0.68 - 1.00

90(194)

0.9

0.236 - 0.260

⁽¹⁾	This data is reference value and is measured between ECM terminal 73 (Engine coolant temperature sensor) and ground.

If NG, replace engine coolant temperature sensor.

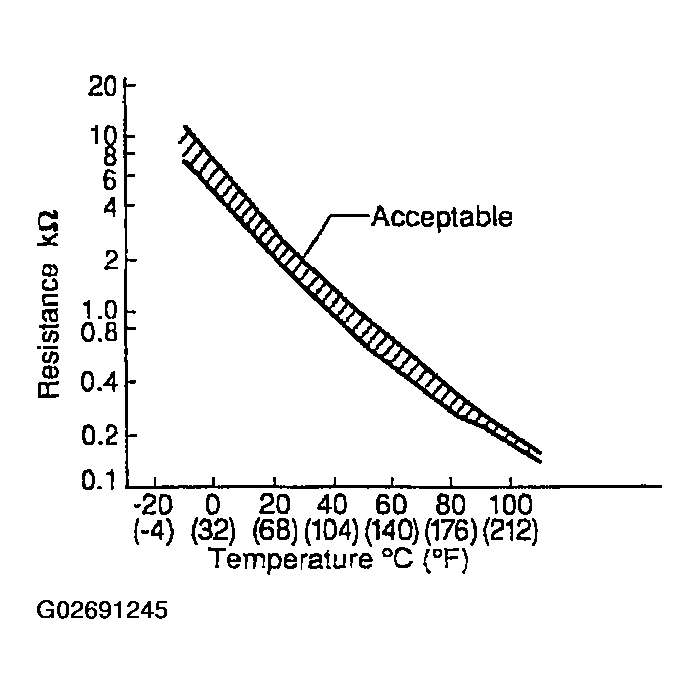

Fig 2: DTC P0117, P0118 ECT Sensor - Temperature/Resistance Graph
