Component Description

NOTE: If DTC P0125 is displayed with P0117 or P0118, first perform the trouble diagnosis for DTC P0117 or P0118. Refer to DTC P0117, P0118 ECT SENSOR .

The engine coolant temperature sensor is used to detect the engine coolant temperature. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the engine coolant temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

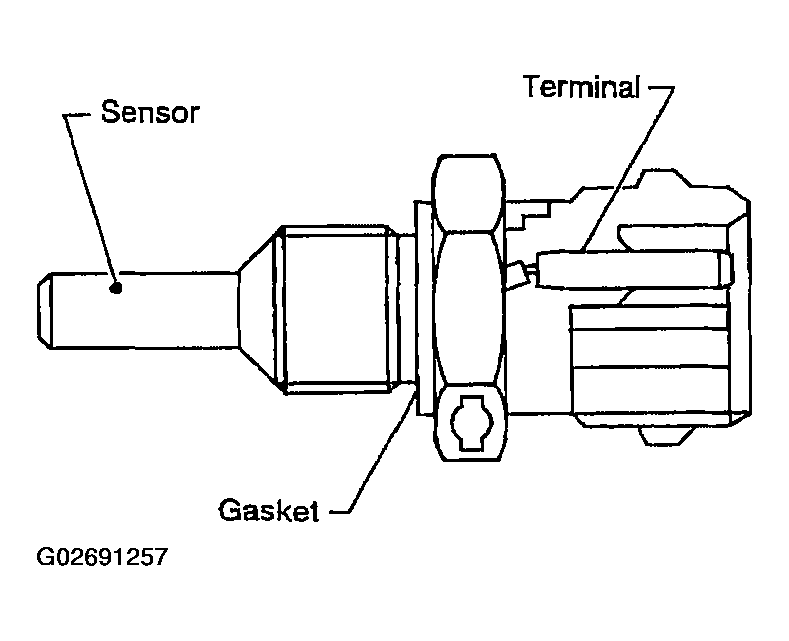

Fig 1: Identifying Engine Coolant Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

REFERENCE DATA

Engine coolant temperature °C (°F)

Voltage⁽¹⁾ V

Resistance kΩ

20 (68)

3.5

2.1 - 2.9

50 (122)

2.2

0.68 - 1.00

90(194)

0.9

0.236 - 0.260

⁽¹⁾	This data is reference value and is measured between ECM terminal 73 (Engine coolant temperature sensor) and ground.

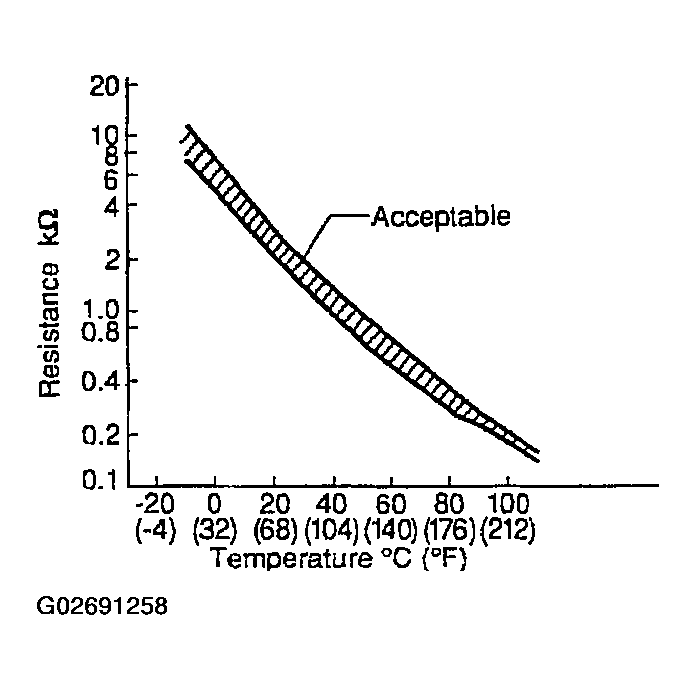

Fig 2: DTC P0125 ECT Sensor - Temperature/Resistance Graph

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
