Diagnostic Procedure

  1. CHECK DTC WITH COMBINATION METER

    Refer to COMBINATION METERS .

    OK or NG

    OK: GO TO 2.

    NG: GO to FUEL LEVEL SENSOR UNIT .

  2. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten ground three screws on the body.

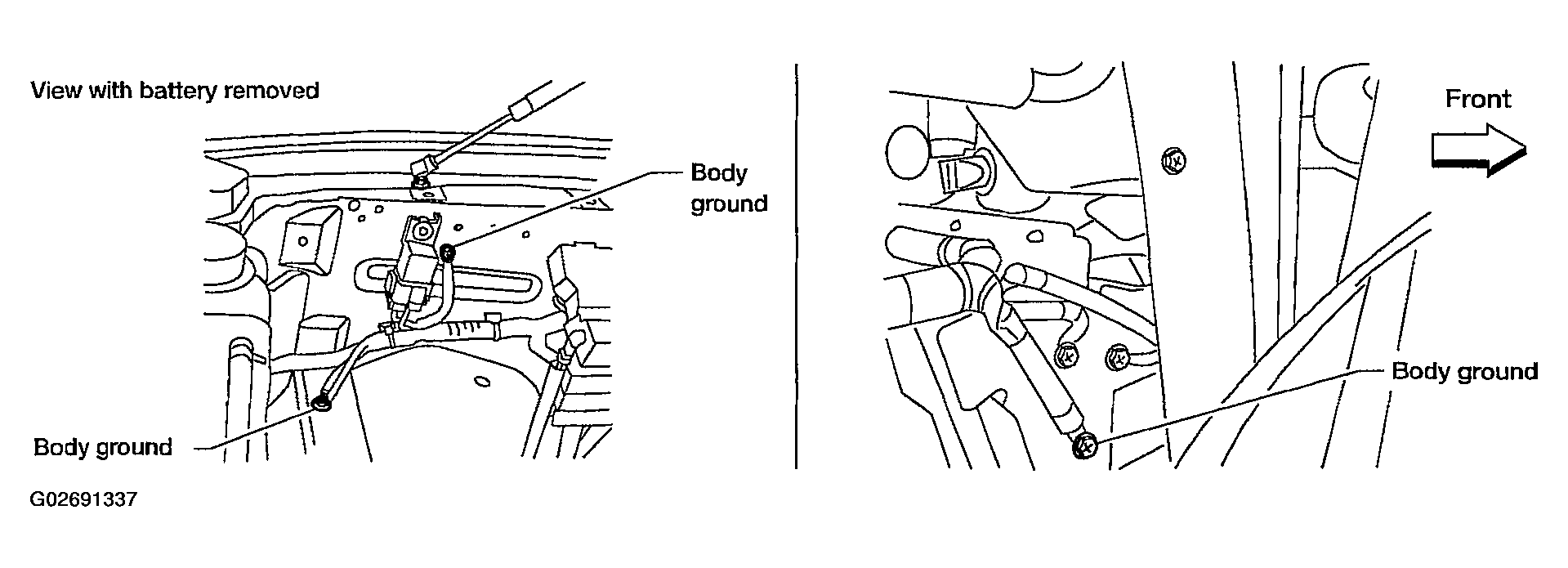

      Fig 1: Locating Body Ground
      G02691337Courtesy of NISSAN MOTOR CO., U.S.A.

      Refer to GROUND INSPECTION .

    OK or NG

    OK: GO TO 3.

    NG: Repair or replace ground connections.

  3. CHECK FUEL TANK TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
    1. Disconnect "fuel level sensor unit and fuel pump" harness connector.
    2. Turn ignition switch ON.

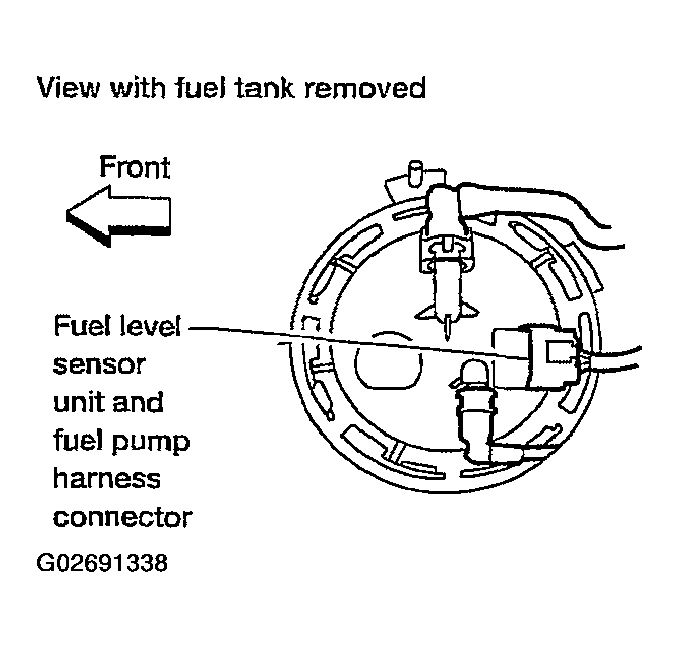

      Fig 2: Locating Fuel Level Sensor Unit And Fuel Pump Harness Connector
      G02691338Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between "fuel level sensor unit and fuel pump" terminal 4 and ground with CONSULT-II or tester.

      Voltage: Approximately 5V

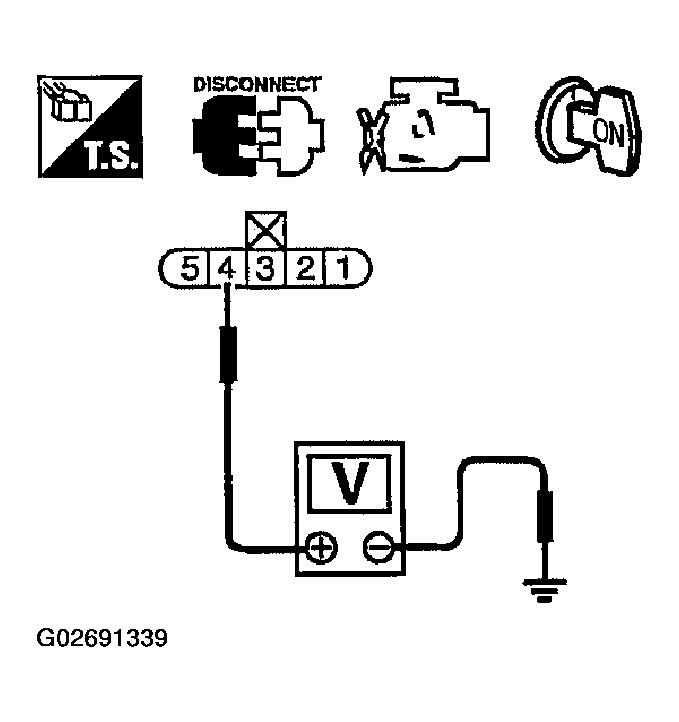

      Fig 3: Checking Voltage Between Fuel Level Sensor Unit, Fuel Pump Terminal 4 & Ground
      G02691339Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO  5.

    NG: GO TO 4.

  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors C1, E41
    • Harness for open or short between ECM and "fuel level sensor unit and fuel pump"

      : Repair harness or connector.

  5. CHECK FUEL TANK TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect combination meter harness connector.
    3. Check harness continuity between "fuel level sensor unit and fuel pump" terminal 5 and combination meter terminal 16. Refer to Wiring Diagram.

      Continuity should exist.

    4. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO  7.

    NG: GO TO 6.

  6. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors C1, E41
    • Harness connectors E152, M31
    • Harness for open or short between "fuel level sensor unit and fuel pump" and combination meter

      : Repair open circuit or short to ground or short to power in harness or connector.

  7. CHECK FUEL TANK TEMPERATURE SENSOR

    Refer to COMPONENT INSPECTION .

    OK or NG

    OK: GO TO 8.

    NG: Replace fuel level sensor unit.

  8. CHECK INTERMITTENT INCIDENT

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

    : INSPECTION END
