With Consult-II

  1. Turn ignition switch OFF and wait at least 10 seconds.
  2. Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and wait at least 40 seconds.
    NOTE: Do not depress accelerator pedal even slightly.

    If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .

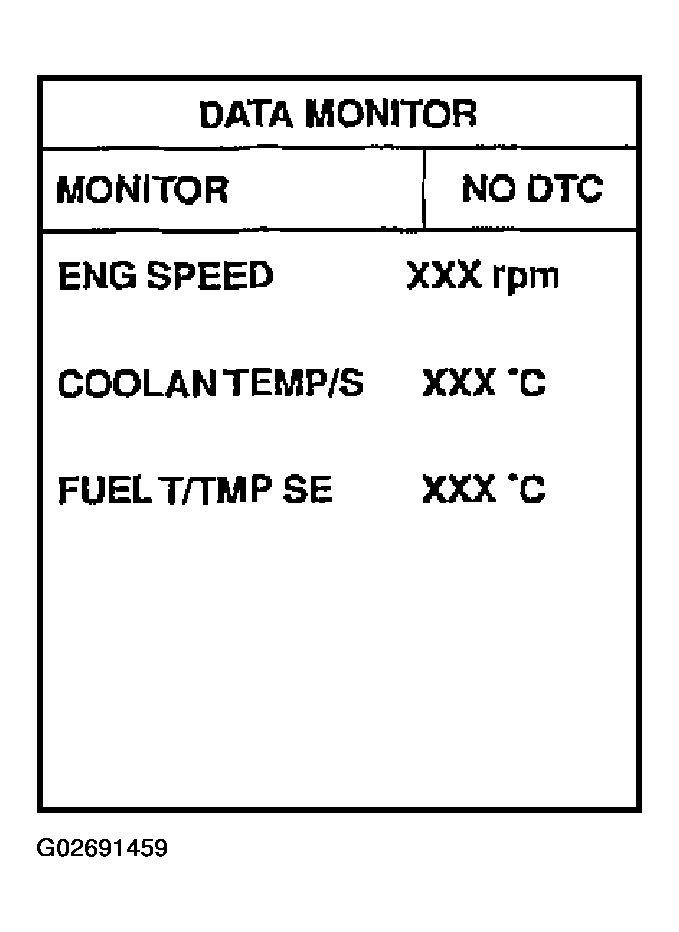

    Fig 1: Display "DATA MONITOR" Mode
    G02691459Courtesy of NISSAN MOTOR CO., U.S.A.
