Diagnostic Procedure

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body.

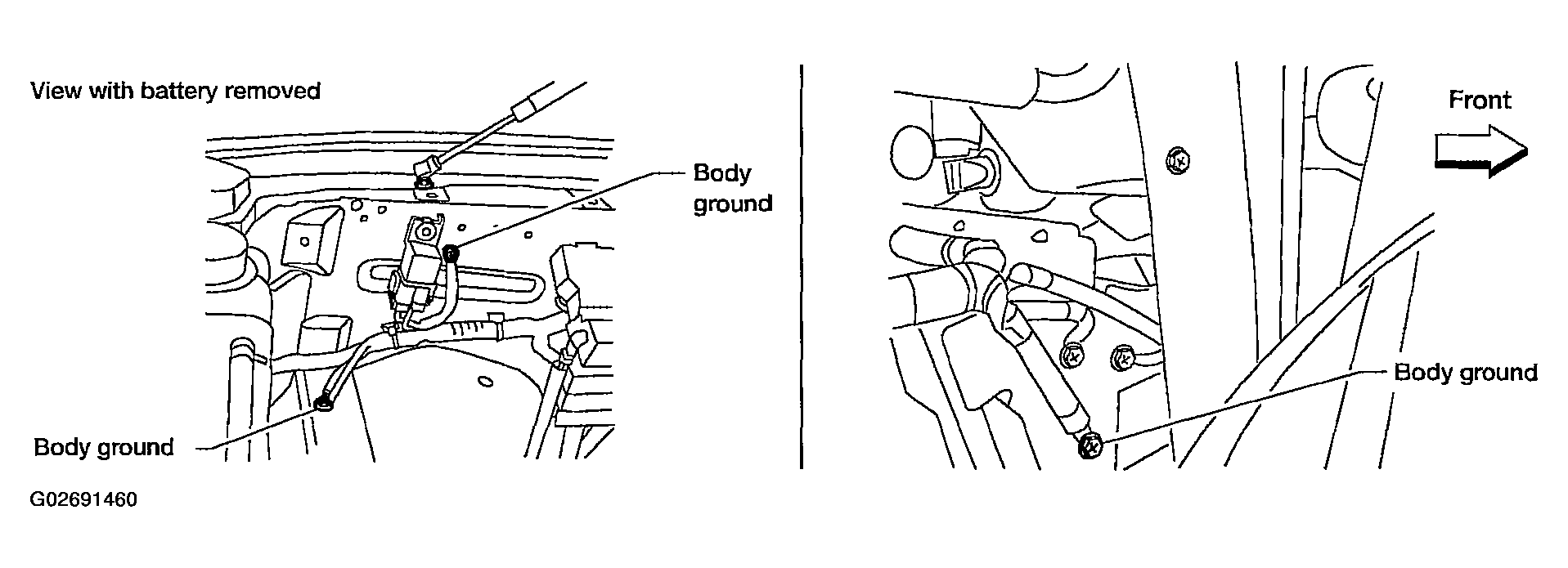

  Fig 1: Locating Body Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Refer to GROUND INSPECTION .
OK or NG

OK: GO TO 2.

NG: Repair or replace ground connections.
CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR FOR WATER
1. Disconnect EVAP control system pressure sensor harness connector.

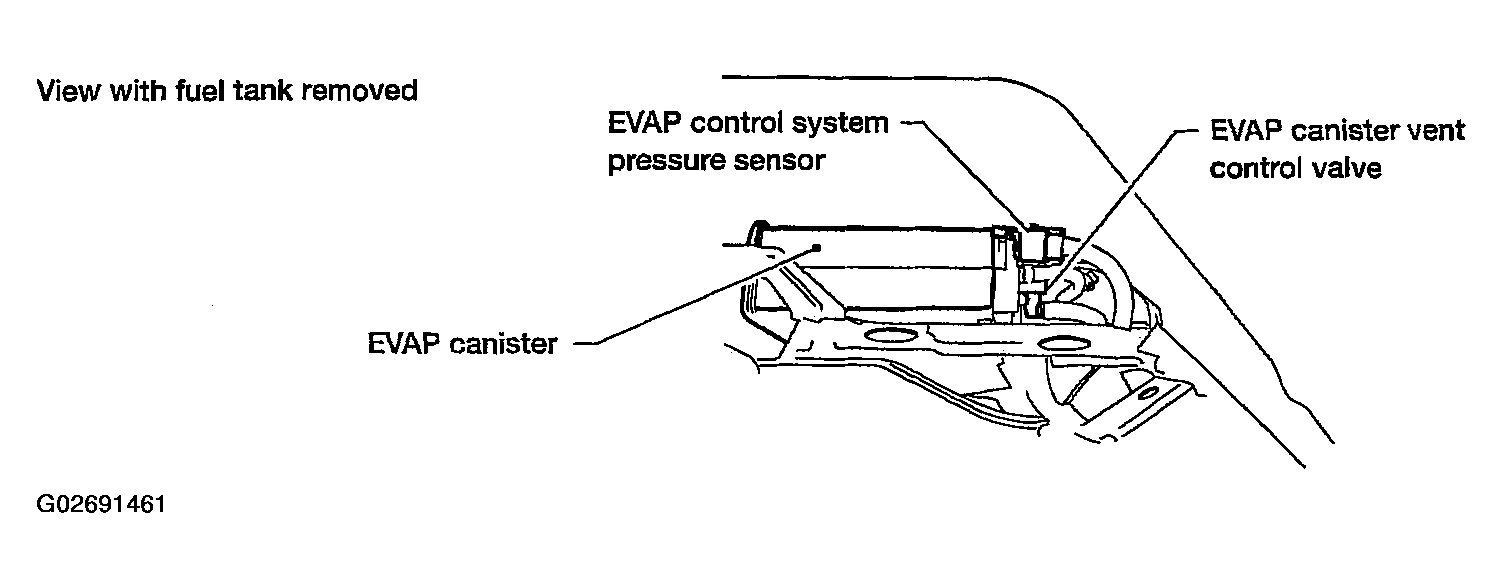

  Fig 2: Locating EVAP Canister Vent Control Valve & EVAP Control System Pressure Sensor
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check sensor harness connector for water.
  Water should not exist.
OK or NG

OK: GO TO 3.

NG: Repair or replace harness connector.
CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to COMPONENT INSPECTION .

OK or NG

OK: GO TO 4.

NG: Replace EVAP control system pressure sensor.
CHECK INTERMITTENT INCIDENT
Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

For wiring diagram, refer to WIRING DIAGRAM .

: INSPECTION END
