DTC P0452: EVAP Control System Pressure Sensor: Wiring Diagram

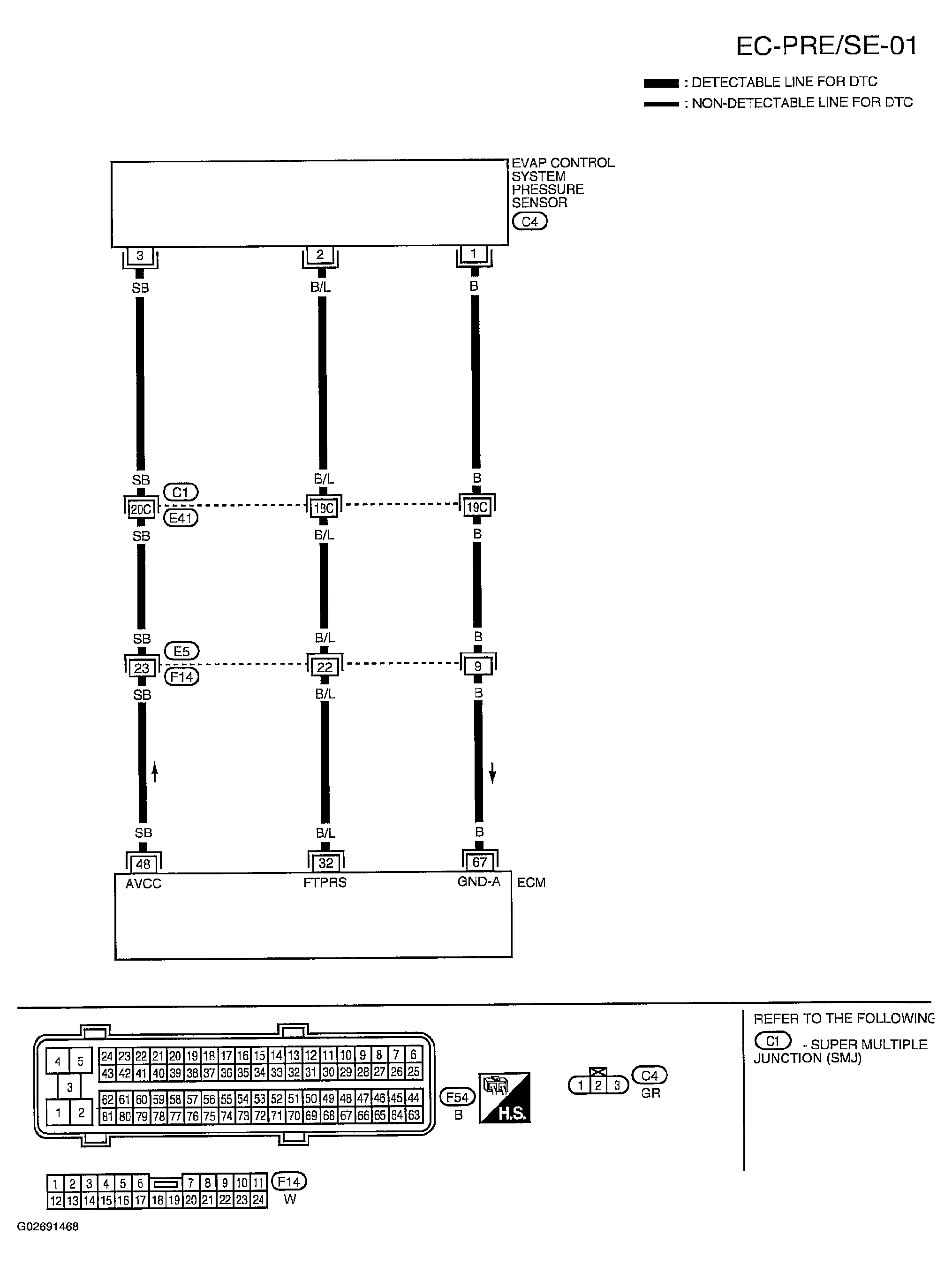

Fig 1: DTC P0452 EVAP Control System Pressure Sensor - Wiring Diagram - EC-PRE/SE-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

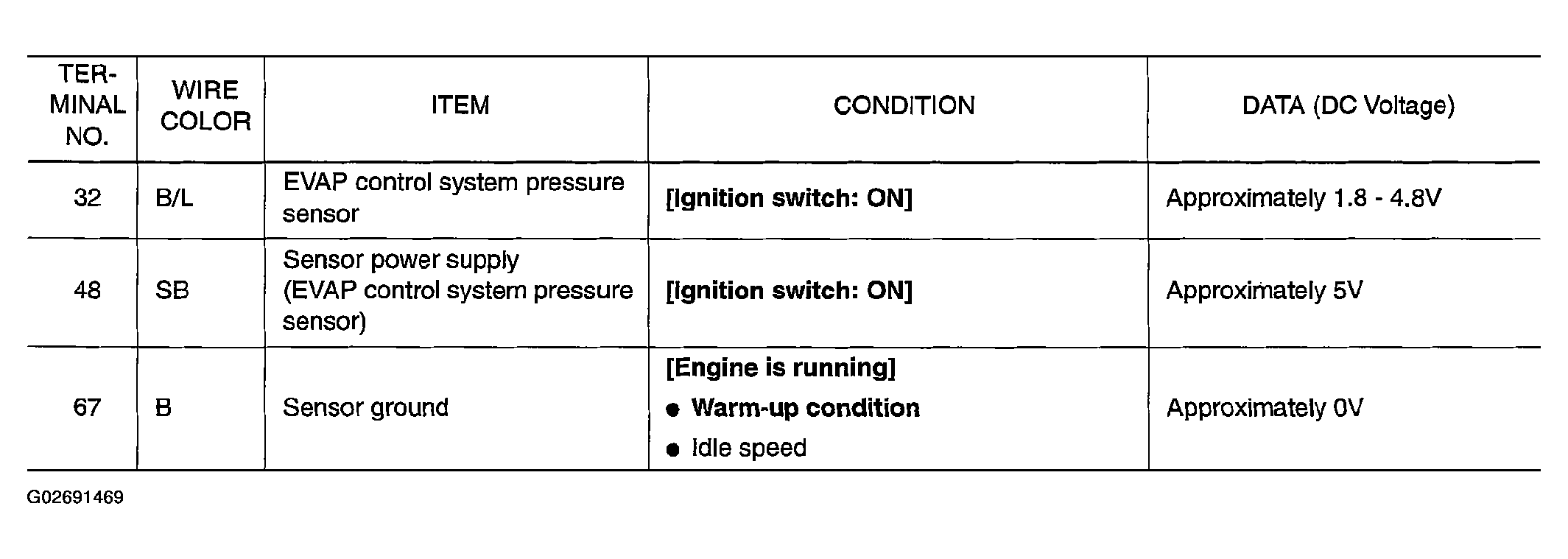

Fig 2: DTC P0452 Specification Data & Reference Values Table
