DTC P1122: Electric Throttle Control Function: Wiring Diagram

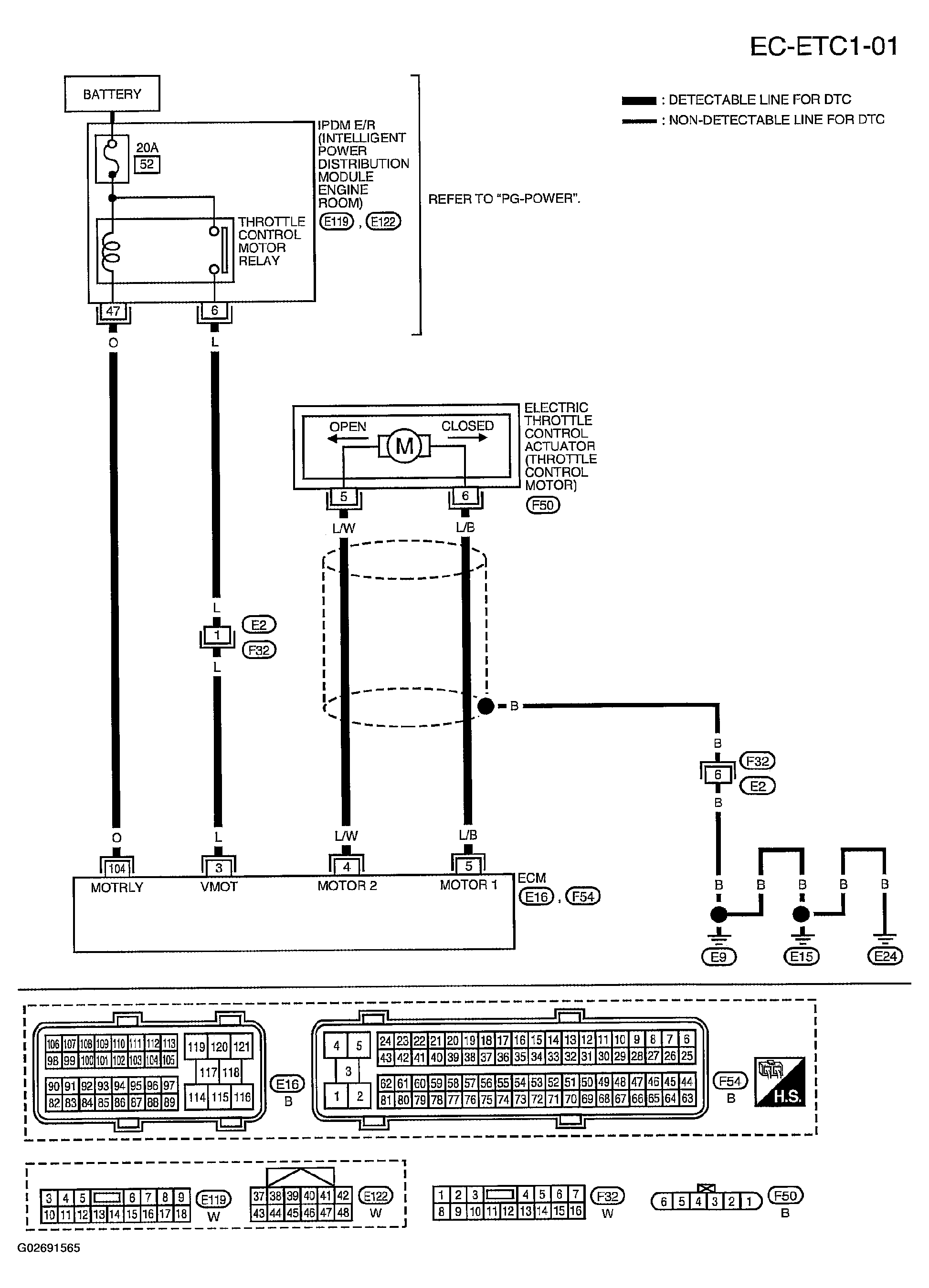

Fig 1: DTC P1122 Electric Throttle Control Function - Wiring Diagram - EC-ETC1-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

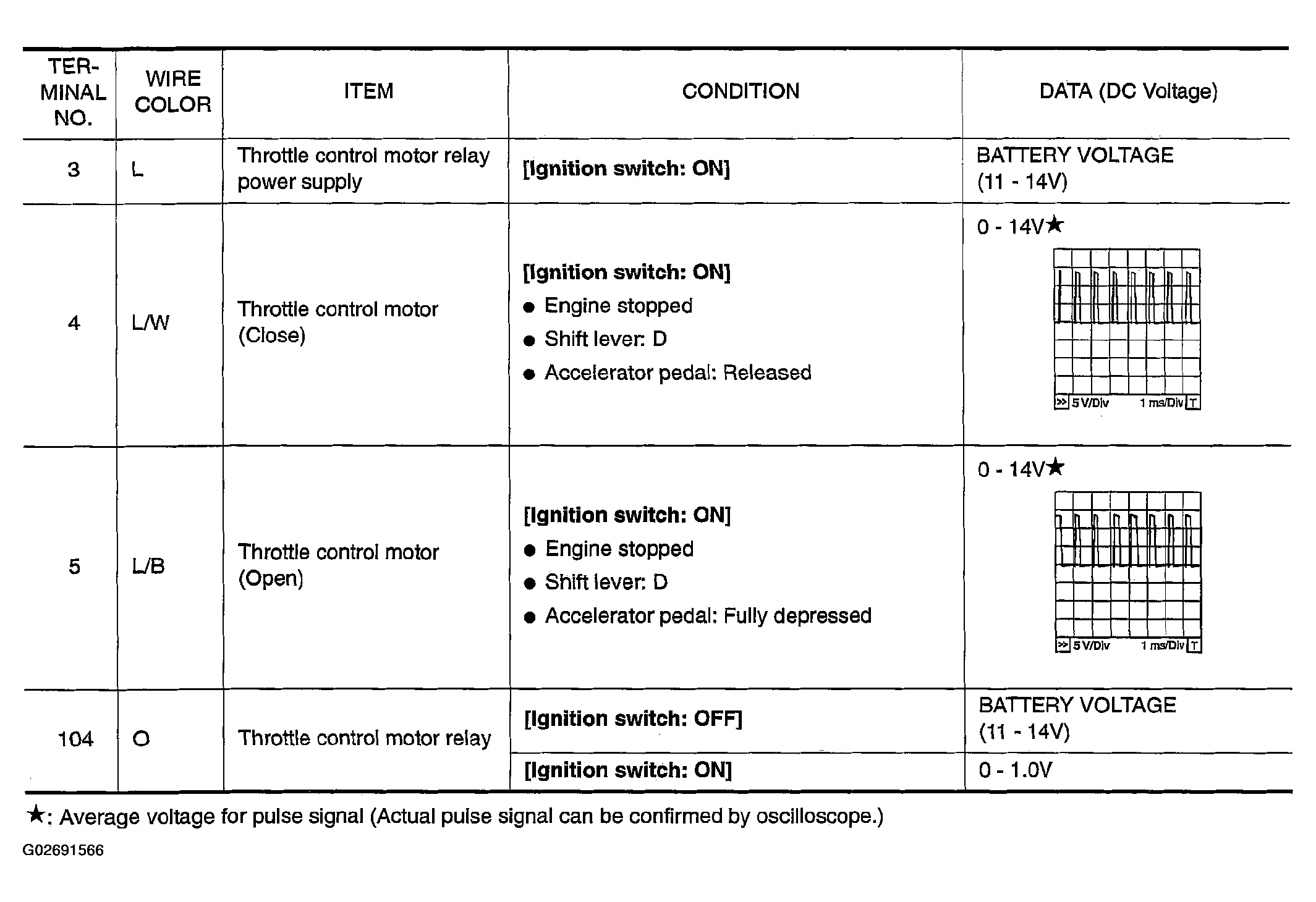

Fig 2: DTC P1122 Terminal, Specification Data & Reference Values

Courtesy of NISSAN MOTOR CO., U.S.A.
