With Consult-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and let it idle for at least 10 seconds.
  4. If a 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .

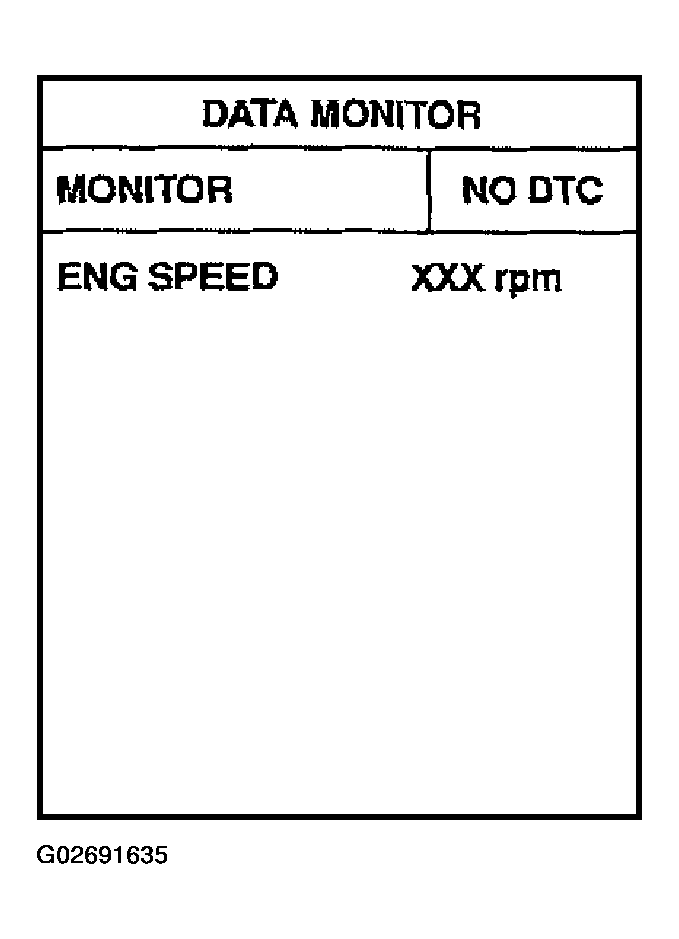

    Fig 1: DTC P1212 Selecting "DATA MONITOR" Mode With CONSULT-II
    G02691635Courtesy of NISSAN MOTOR CO., U.S.A.
