With Consult-II

  1. Check the coolant level in the reservoir tank and radiator. Allow engine to cool before checking coolant level.

    If the coolant level in the reservoir tank and/or radiator is below the proper range, skip the following steps and go to DIAGNOSTIC PROCEDURE .

  2. Confirm whether customer filled the coolant or not. If customer filled the coolant, skip the following steps and go to DIAGNOSTIC PROCEDURE .
  3. Turn ignition switch ON.

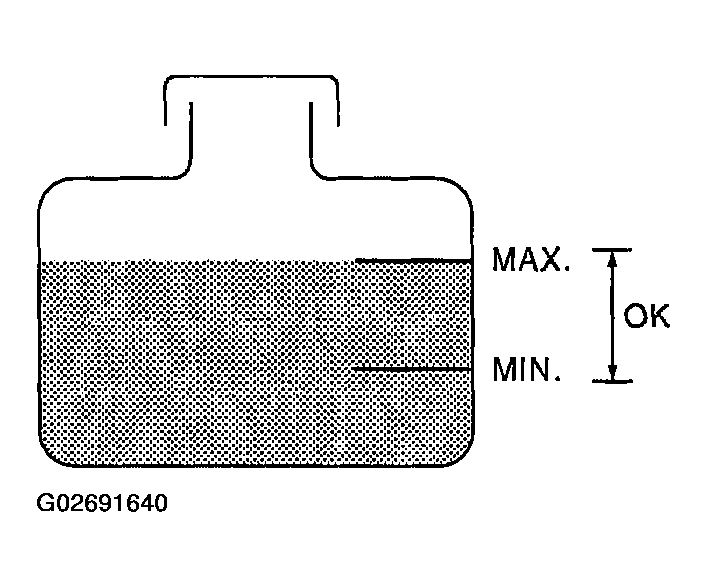

    Fig 1: DTC P1217 Identifying Coolant Level In Reservoir
    G02691640Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Perform "COOLING FAN" in "ACTIVE TEST" mode with CONSULT-II.
  5. If the results are NG, go to DIAGNOSTIC PROCEDURE .

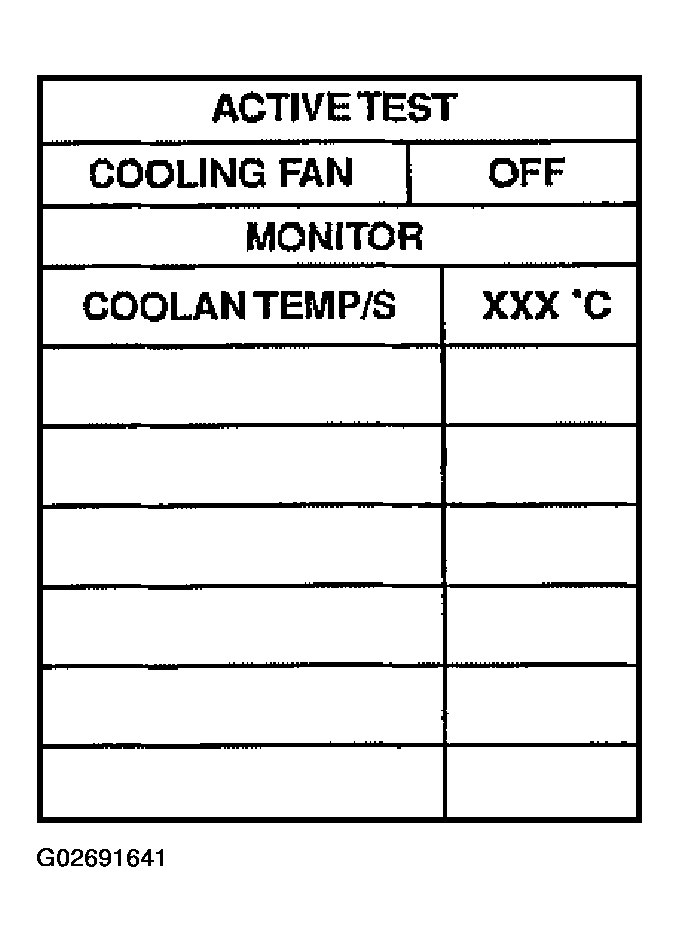

    Fig 2: DTC P1217 Perform "COOLING FAN" In "ACTIVE TEST" Mode With CONSULT-II
    G02691641Courtesy of NISSAN MOTOR CO., U.S.A.
