With Consult-II

  1. Turn ignition switch ON
  2. Select "DATA MONITOR" mode with CONSULT-II
  3. Turn ignition switch OFF and wait at least 10 seconds
  4. Turn ignition switch ON
  5. Repeat steps 3 and 4 for 32 times
  6. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .

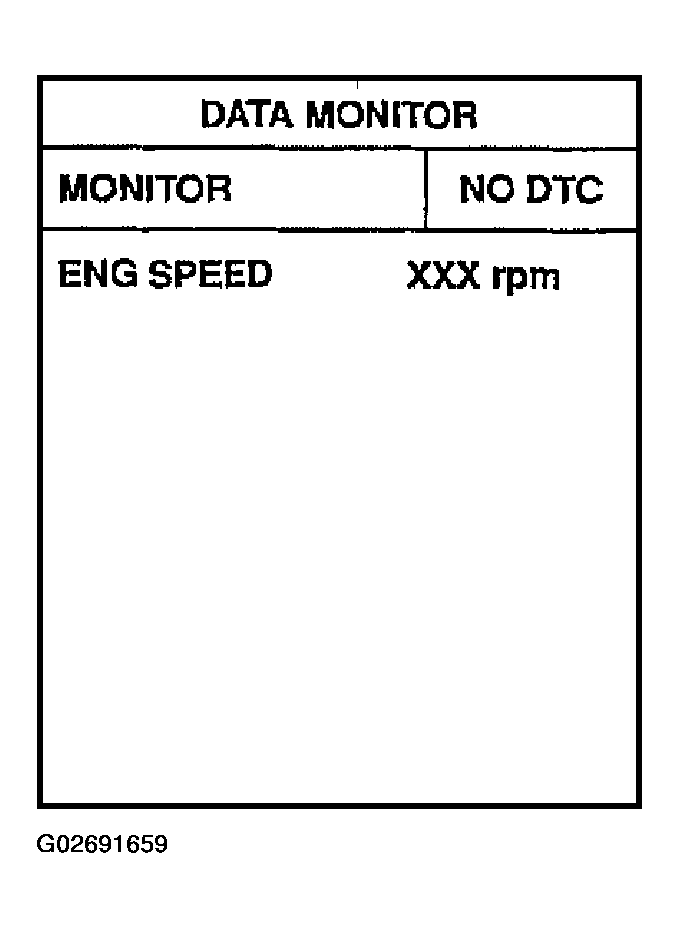

    Fig 1: DTC P1226 Selecting "DATA MONITOR" Mode With CONSULT-II
    G02691659Courtesy of NISSAN MOTOR CO., U.S.A.
