With Consult-II

  1. Turn ignition switch ON.
  2. Fully depress the brake pedal for at least 5 seconds.
  3. Erase the DTC with CONSULT-II.
  4. Select "DATA MONITOR" mode with CONSULT-II.
  5. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .

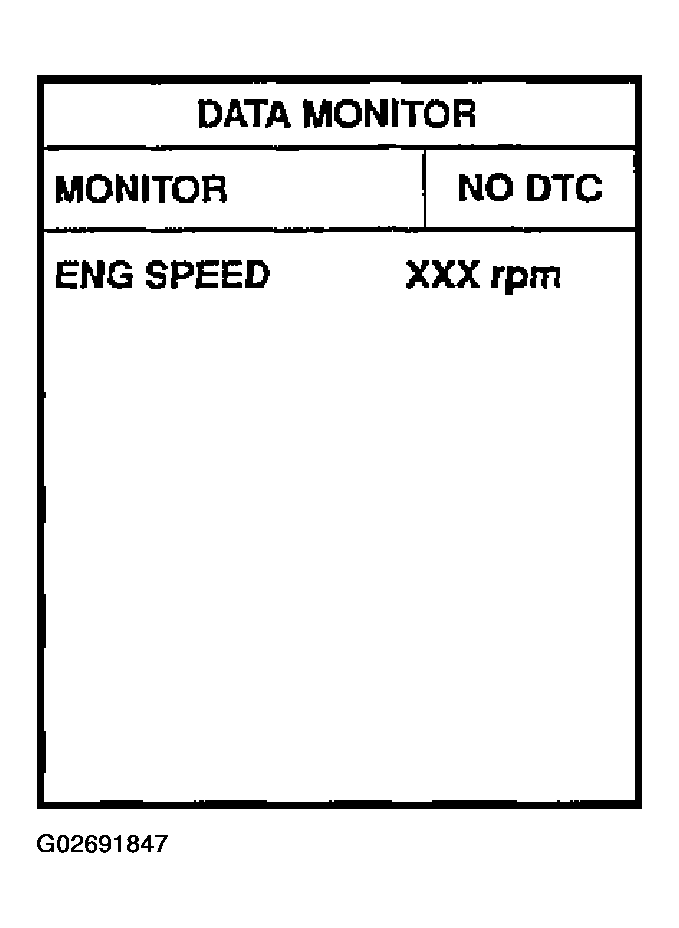

    Fig 1: Selecting "Data Monitor" Mode With CONSULT-II
    G02691847Courtesy of NISSAN MOTOR CO., U.S.A.
